The ONV-IPS57128PFM is a 2.5G managed industrial PoE switch independently developed by ONV. It features 8×10/100/1000/2500Base-T adaptive RJ45 ports and 4×1/10G uplink SFP+ fiber ports. Ports 1-8 support IEEE802.3af/at PoE standard with single-port maximum PoE power of 30W.

As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and industrial sensors, meeting high-density PoE power supply requirements in intelligent transportation, rail transit, electric power, mining, metallurgy, green energy, and industrial applications.

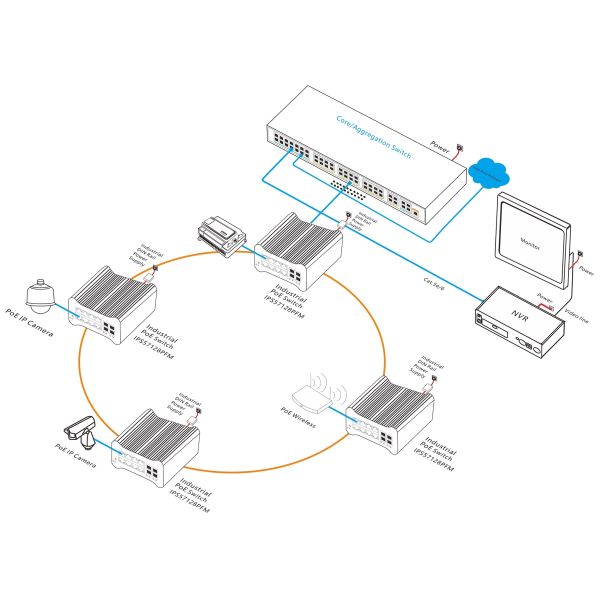

The switch offers L3 network management functions, supports IPv4/IPv6 management, dynamic routing forwarding, comprehensive security protection mechanisms, ACL/QoS policies, rich VLAN functions, and easy management. It supports multiple network redundancy protocols, including STP/RSTP/MSTP (<50ms) and ERPS (<20ms) for enhanced link backup and network reliability.

• 2.5G Access with 1/10G SFP+ Uplink: Non-blocking wire-speed forwarding, full/half duplex support, flexible networking for various scenarios
• Smart PoE Power Supply: IEEE 802.3af/at compliant, automatic PoE device identification, priority mechanism, network management configuration
• Strong Business Processing Capability: ERPS ring network, STP/RSTP/MSTP support, VLAN division, port aggregation, QoS, ACL, IGMP multicast
• Enhanced Security: Port isolation, broadcast storm suppression, IP+MAC+port+VLAN binding, 802.1X authentication
• Reliable Operation: CE, FCC, RoHS certified, aluminum alloy housing, excellent heat dissipation, low power consumption
• Easy Management: Multiple management methods, including Web, CLI, SNMP, and Telnet, with comprehensive monitoring and diagnostics

Note: The optical module and power supply are not included and need to be purchased separately.
