3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
Specifications
Diagonal Screen Size :
3.95
Drive IC :
FT5446U
Interface :
I2C
Operating Temp :
-20℃~ +60℃
Storage Temp :
-30℃~+ 75℃
Backlight :
8 White LED Parallel
Brightness :
250
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Brand Name :
Limito
Model Number :
LHS395KN-IC01F3
Place of Origin :
China
Description

480x480 Dot Lcd 3.95" Touchscreen TFT Display Square Shape TFT Lcd Module

LIMITO IPS TFT LCD Display Description:

LHS395KN-IC01F3 is a 480RGBX480 dot-matrix TFT LCD module. This module is composed ofa TFT

LCD Panel, driver ICs, FPC, a Backlight and a CTP unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

3.95

Display Mode

Normally black

Resolution

480(H)RGB x480(V)

Pixel pitch

0.1497(H) x0.1462 (M)

Active area
71.856(H)x 70. 176(V)

Module size

78.98(H) x 74.83(V) x2.14 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

250 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

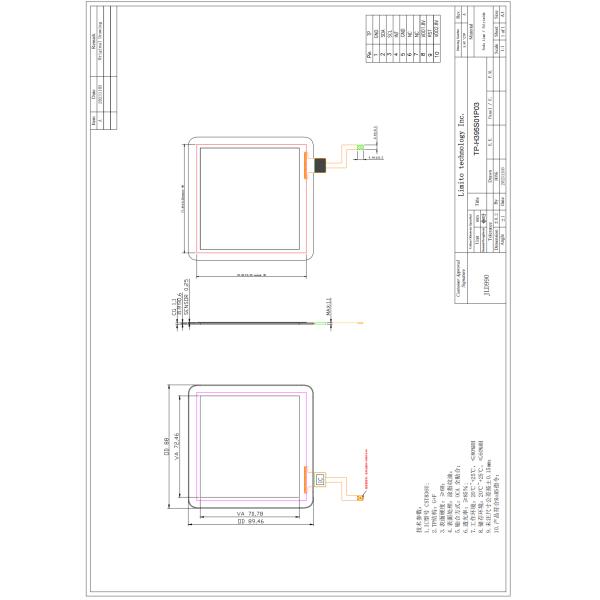

LIMITO IPS TFT LCD Display Mechanical Drawing

3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape

LIMITO IPS TFT LCD Display Advantages:

1. High Resolution

The 480x480 pixel resolution offers clear and crisp visuals, enhancing user experience with detailed images and text.

2. Touchscreen Capability

Enables interactive user interfaces, allowing for intuitive navigation and control.

3. Square Shape

The unique square format is suitable for applications where a non-traditional aspect ratio is beneficial, providing more screen real estate for content.

4. Vibrant Colors

TFT technology delivers bright and vibrant colors, improving the overall aesthetic of the display.

5. Wide Viewing Angles

Maintains image quality and color consistency from various angles, enhancing usability in different settings.

6. Fast Response Time

Quick refresh rates ensure smooth transitions and reduce motion blur, ideal for dynamic content.

7. Durability

Typically designed to withstand various environmental conditions, making it suitable for a wide range of applications.

8. Low Power Consumption

Efficient energy usage, which is advantageous for battery-operated devices.

9. Easy Integration

Compatible with many microcontrollers and development platforms, simplifying the design process.

10. Versatile Applications

Suitable for a variety of uses, including industrial controls, smart home devices, and consumer electronics.
