1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01
Specifications
Brand Name :
Limito
Model Number :
LH128R-IF10-TP
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.28
Drive IC :
GC9A01
Interface :
I2C
Operating Temp :
-10℃~ +60℃
Storage Temp :
-20℃~+ 70℃
Backlight :
2 White LED Parallel
Brightness :
300
Description

1.28 Inch Touch TFT Displays 240x240 Resolution 25 PINS Driving IC GC9A01

LIMITO IPS TFT LCD Display Description:

LH128R-IF10-TP is a 240RGBX240 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC,a Backlight and a CTP unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.28

Display Mode

Normally black

Resolution

240(H)RGB x240(V)

Pixel pitch

0.135(H) x 0.135(M)

Active area

⌀32.4

Module size

38.3(H) x 38.65(V) x3.78 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

300 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

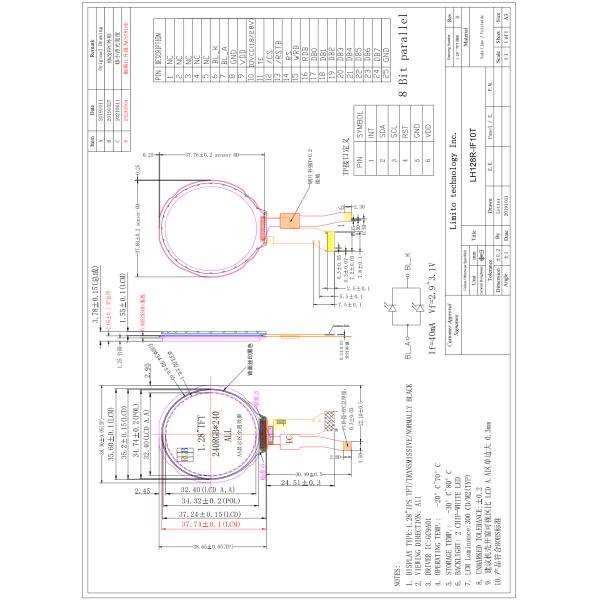

LIMITO IPS TFT LCD Display Mechanical Drawing

1.28 Inch TFT Lcd Display Module TFT Display 240x240 25 PINS Driving IC GC9A01

LIMITO IPS TFT LCD Display Advantages:

Compact Size: At 1.28 inches, it's small enough for various compact devices while still providing a usable display area. This makes it ideal for:

  • Wearable Devices: Smartwatches (especially entry-level to mid-range), fitness trackers, smart rings, and specialized medical wearables.
  • Small Smart Devices: IoT gadgets, smart home buttons, pet trackers, and novelty consumer electronics.
  • Miniature Control Panels: For compact appliances or industrial handhelds where space is at a premium.

Integrated Touch Functionality: This is a major advantage. The "Touch TFT" implies an integrated capacitive touch panel. This offers:

  • Intuitive User Interaction: Enables tap, swipe, and gesture-based control, providing a more modern and user-friendly experience compared to physical buttons.
  • Reduced Component Count: Eliminates the need for separate navigation buttons, simplifying product design and potentially reducing manufacturing costs.
  • Sleek Design: Allows for cleaner, more minimalist product aesthetics.

Cost-Effectiveness (Generally):

  • Displays of this size and resolution, especially with a well-established driver IC like the GC9A01, tend to be more cost-effective for mass production compared to larger, higher-resolution displays with more complex interfaces.
