Specifications
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
0.96
Drive IC :
ST7735
Interface :
I2C
Operating Temp :
-20℃~ +60℃
Storage Temp :
-30℃~+ 70℃
Backlight :
1 White LED
Brightness :
400
Brand Name :
Limito
Model Number :
LHS096TV-IC66S2
Place of Origin :
China
Description

0.96" Small TFT Display With 80*160 Resolution And 400 cd/㎡ Brightness

LIMITO IPS TFT LCD Display Description:

LHS096TV-IC66S2 is a 80RGBX1 60 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC , a Backlight and a CTP unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

0.96

Display Mode

Normally black

Resolution

80(H)RGB x160(V)

Pixel pitch

0.135(H) x 0.1356(V)

Active area

10.8(H) x 21.7(V)

Module size

18.7(H) x 31.9(V) x2.78 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

400 (TYP)Cd/m2

Viewing Direction
All View

Weight

3.2g

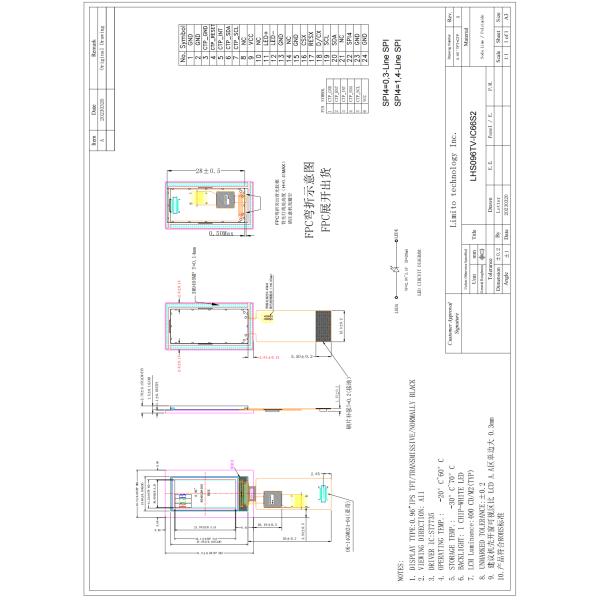

LIMITO IPS TFT LCD Display Mechanical Drawing

0.96 Inch Customized TFT Display TFT Capacitive Touchscreen 80*160 400 cd/㎡ Brightness

LIMITO IPS TFT LCD Display Advantages:

  • Extremely Compact Size: This is the most significant advantage. At just 0.96 inches diagonally, it's tiny. This makes it ideal for:
  • Miniaturized Devices: Perfect for wearables (smart rings, small fitness trackers, specialized watches), smart pens, compact medical devices, smart tags, or small IoT sensors where space is severely constrained.
  • Embedding in Existing Products: Can be integrated into power tools, industrial equipment, or consumer electronics to provide a small status display without adding bulk.
  • Novelty/Niche Applications: Can enable unique product designs that wouldn't be possible with larger displays.
  • Low Power Consumption (Generally): Due to its small size and typically lower pixel count, these displays generally consume very little power, which is crucial for:
  • Battery-Powered Devices: Extending battery life in wearables and IoT devices.
  • Energy-Efficient Designs: Contributing to the overall sustainability of a product.
  • Cost-Effective (Often): Compared to larger, higher-resolution displays, these smaller modules are typically more economical to produce and purchase in volume.
  • Lightweight: Contributes minimally to the overall weight of the product, important for wearables and portable devices.
