1.45 Inch TFT Touch Screen Spi TFT Display 412*412 Pixel With Capacitive Touch Panels
1.45 Inch TFT Touch Screen Spi TFT Display 412*412 Pixel With Capacitive Touch Panels
Specifications
Brand Name :
Limito
Model Number :
LH145R-PC01F1
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.45
Drive IC :
CST816D
Interface :
I2C
Operating Temp :
-10℃~ +60℃
Storage Temp :
-20℃~+ 70℃
Backlight :
3 White LED Parallel
Brightness :
400
Description

1.45 Inch TFT Touch Screen Spi TFT Display 412*412 Pixel With Capacitive Touch Panels

LIMITO IPS TFT LCD Display Description:

LH145R-PC01F1 is a 412RGBX412 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight and a CTP unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.45

Display Mode

Normally black

Resolution

412(H)RGB x412(V)

Pixel pitch

0.0897(H) x 0.0897(M)

Active area

⌀36.9564

Module size

45.06(H) X 45.06(V) x3.61 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

16.7M

Luminance(cd/m2)

400 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

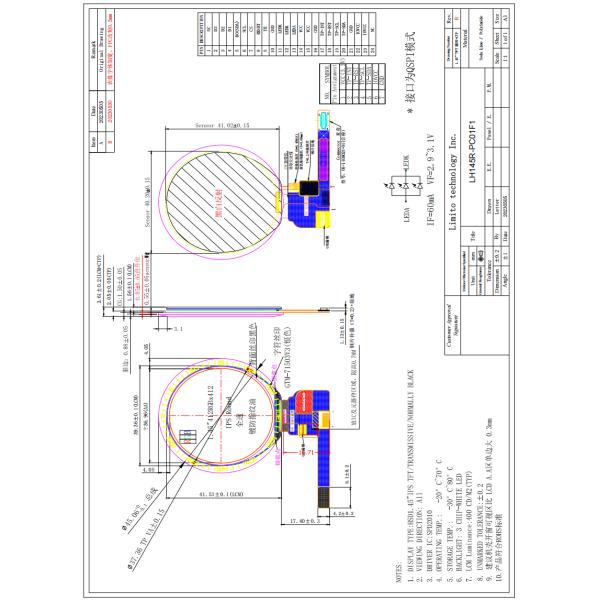

LIMITO IPS TFT LCD Display Mechanical Drawing

1.45 Inch TFT Touch Screen Spi TFT Display 412*412 Pixel With Capacitive Touch Panels

LIMITO IPS TFT LCD Display Advantages:

1. High Resolution

The 412x412 pixel resolution provides sharp and detailed images, enhancing visual clarity.

2. Vivid Colors

OLED technology allows for bright, vibrant colors and deep blacks, improving overall display quality.

3. Wide Viewing Angles

Maintains consistent color and brightness from various angles, making it suitable for diverse applications.

4. Fast Response Time

Quick refresh rates result in smooth transitions and reduced motion blur, ideal for dynamic content.

5. Low Power Consumption

OLED displays consume less power when displaying darker images, making them energy-efficient for battery-operated devices.

6. Capacitive Touch Sensitivity

Provides a responsive touch experience, allowing for intuitive user interactions.

7. Compact Design

The small size is perfect for wearable devices, smartwatches, and other portable electronics.

8. Thin Profile

The slim form factor allows for sleek designs without sacrificing functionality.

9. Durability

Generally robust and resistant to shock and vibration, suitable for various environments.

10. MIPI Interface Compatibility

Easy integration with modern microcontrollers and processors, facilitating design and development.
