1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel
1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel
1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel
1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel
1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel
1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel
Specifications
Brand Name :
Limito
Model Number :
QB139R-PC56F1
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.39
Drive IC :
CST816D
Interface :
I2C
Operating Temp :
-10℃~ +60℃
Storage Temp :
-20℃~+ 70℃
Backlight :
3 White LED Parallel
Brightness :
550
Description

1.39 Inch 360*360 QSPI Round TFT LCD Display Customized Capacitive Touch Panel

LIMITO IPS TFT LCD Display Description:

QB139R-PC56F1 is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight and a CTP unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.39

Display Mode

Normally black

Resolution

360(H)RGB x360(V)

Pixel pitch

0.09807(H) X 0.09807(V)

Active area

⌀35.3052

Module size

38.79(H) x 39.5(V) x4.085 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

550 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

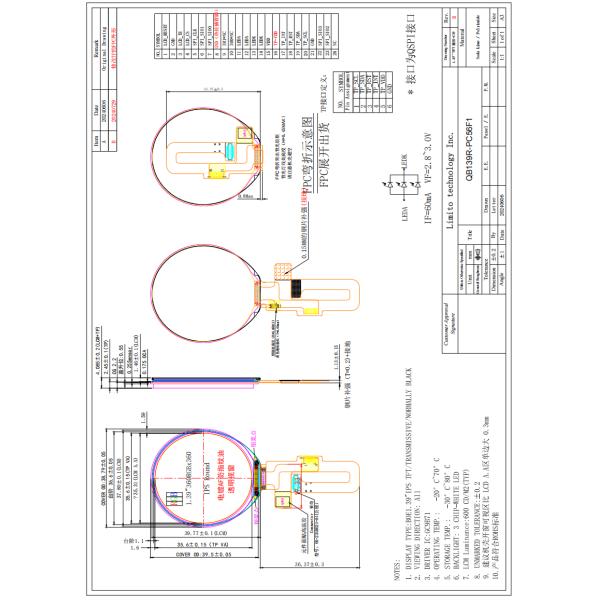

LIMITO IPS TFT LCD Display Mechanical Drawing

1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel

LIMITO IPS TFT LCD Display Advantages:

1. High-Resolution Round Display

360×360 resolution ensures sharp and clear visuals, ideal for circular smartwatch faces and compact UI designs.

1.39-inch size provides a good balance between readability and compactness.

2. QSPI Interface for Faster Data Transfer

Quad-SPI (QSPI) interface allows high-speed communication with low pin count, reducing wiring complexity.

Efficient for animations and dynamic content with low power consumption.

3. Customizedized Capacitive Touch Panel

Supports multi-touch or gesture recognition (depending on Customizedizedization).

Smooth and responsive touch experience, enhancing user interaction.

Can be Customizedizedized for glove touch or water resistance (if required).

4. Circular Design for Aesthetic Appeal

Round form factor is ideal for modern smartwatches and fashion-forward wearables.

Enables unique and stylish UI designs compared to traditional rectangular displays.
