Three Phase Motor Stator Coil Middle Forming Machine
Three Phase Motor Stator Coil Middle Forming Machine
Three Phase Motor Stator Coil Middle Forming Machine
Three Phase Motor Stator Coil Middle Forming Machine
Specifications
Model NO. :
WIND-160-MF
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

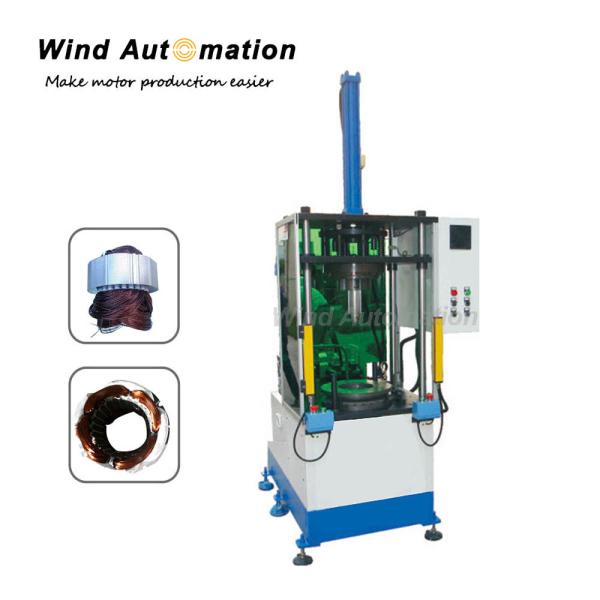

Three Phase Motor Stator Coil Middle Forming Machine
Three Phase Motor Stator Coil Middle Forming Machine

This machine is controlled by PLC, driven by hydraulic system. There's an individual guard teeth in each slot to prevent wire jump during forming process.


(1) Specification

Stack length 16~100mm
Stator ID 30~100mm
Stator OD Max 160mm
Oil pump displacement 20F
Power supply 380V 50HZ
Weight 1000KG
Dimension 1200x750x2500mm


(2) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required

(3) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor, generator motor and pump motor.

Three Phase Motor Stator Coil Middle Forming Machine
Three Phase Motor Stator Coil Middle Forming Machine
Three Phase Motor Stator Coil Middle Forming Machine

Three Phase Motor Stator Coil Middle Forming Machine
