12 Pole Outrunner Stator Coil Winding Shaping Machine
12 Pole Outrunner Stator Coil Winding Shaping Machine
12 Pole Outrunner Stator Coil Winding Shaping Machine
12 Pole Outrunner Stator Coil Winding Shaping Machine
12 Pole Outrunner Stator Coil Winding Shaping Machine
12 Pole Outrunner Stator Coil Winding Shaping Machine
Specifications
Model NO. :
WIND-IO-009
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
12pole Stator Coil Winding Shaping Machine
12 Pole Outrunner Stator Coil Winding Shaping Machine

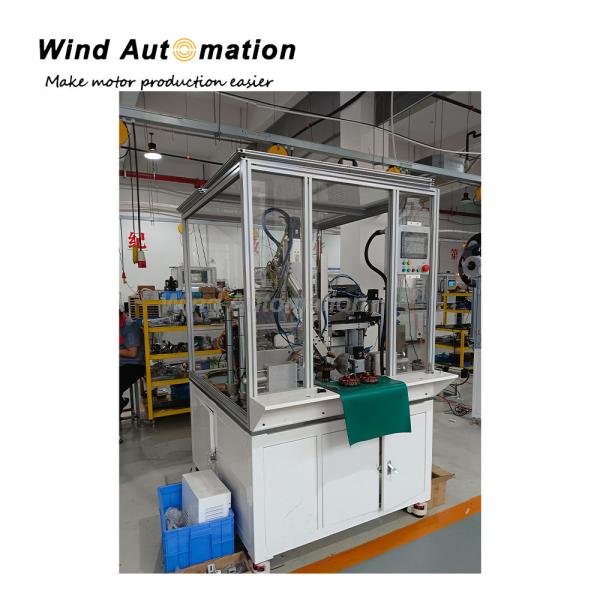

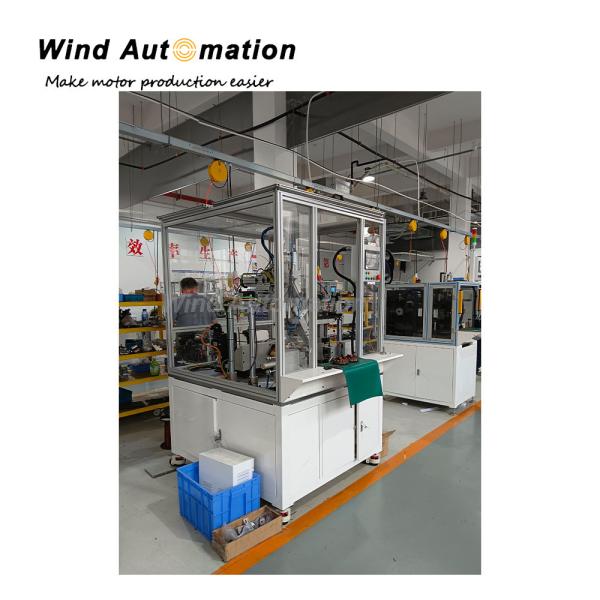

This machine adopts hydraulic drive to do coil forming process. Squash in radial at the same time from 4 directions after internal expansion. It has a wide application and easy to operate.

(1) Specifications
Up and down installation travel 200~260mm
Up and down work travel 20~35mm
Horizontally material feeding travel 200mm
Horizontally radial shaping travel 20~35mm
Power 5.5 KW
Power supply AC 380
Air pressure 0.5~0.7MPa

(2) Application

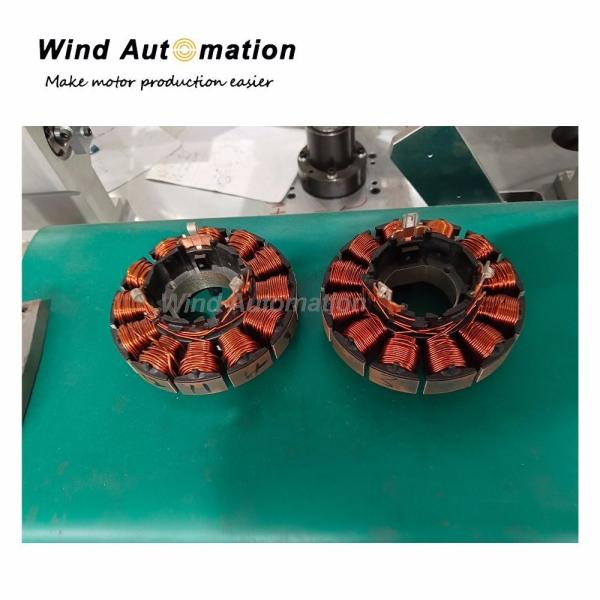

The stator coil forming machine is suitable for alternator, generator, AC motor and other industry motors.

(3) Features
Mitsubishi PLC program control and LCD display interface
Easy operation and tooling change
Suitable for multi-models production
Wide compatibility property
All the process will be done by machine automatically except for loading and unloading
