Generator Stator Coil Forming Machine
Generator Stator Coil Forming Machine
Specifications
Model NO. :
WIND-CX-C
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Generator Stator Coil Forming Machine
Generator Stator Coil Forming Machine

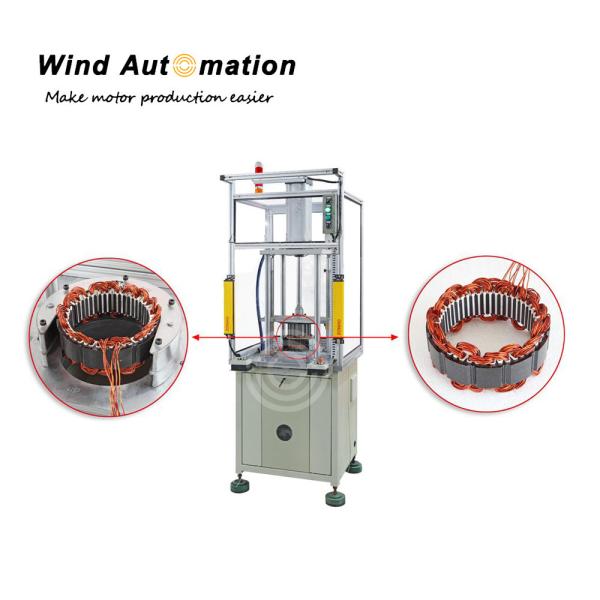

This generator stator coil forming machine is used to forming stator coil shape. With a turnover mechanism and grating protection system, this machine deeply increases working efficiency while reduces working accidents.

(1) Specifications
Stator stack length 15mm-60mm
Max stator OD 120mm
Min Stator ID 60mm
Suitable wire material copper/ aluminium wire
Input Power Source 380V/50Hz
Air source 0~7MPa
Power 3KW
Dimension 1000mm ×600mm × 1800mm

(2) Application
The stator coil forming machine is suitable for alternator, generator, three-phase motor and other industry motors.

(3) Features
Mitsubishi PLC program control and LCD display interface
Easy operation and tooling change
Suitable for multi-models production
Wide compatibility property
Adopts Turnover mechanism and grating protection system
All the process will be done by machine automatically except for loading and unloading
After forming, no deformation of stator or lamination, no damage of wire, wedge, or slot paper.
