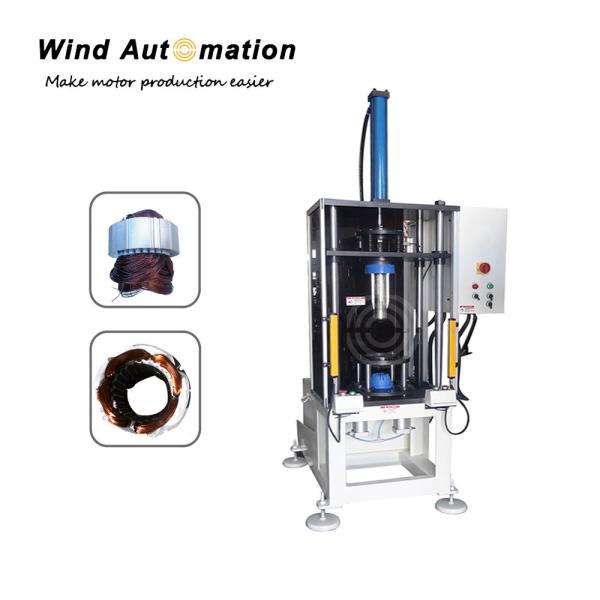

Stator Coil End Pre Forming Machine for Induction Motor
Stator Coil End Pre Forming Machine for Induction Motor
Specifications
Model NO. :
WIND-160-PF
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Stator Coil End Pre Forming Machine For Induction Motor
Stator Coil End Pre Forming Machine for Induction Motor

This machine is used to do coil expending for successive coil inserting. It is driven by hydraulic system, controlled by PLC. It applies to stators with multi-layer.

(1) Specification

Stack length 15~100mm
Stator ID 30~100mm
Stator OD Max 160mm
Oil pump displacement 20F
Power supply 380V 50HZ
Weight 800KG
Dimension 1200x700x2200mm


(2) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor, generator motor and pump motor.

(3) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
