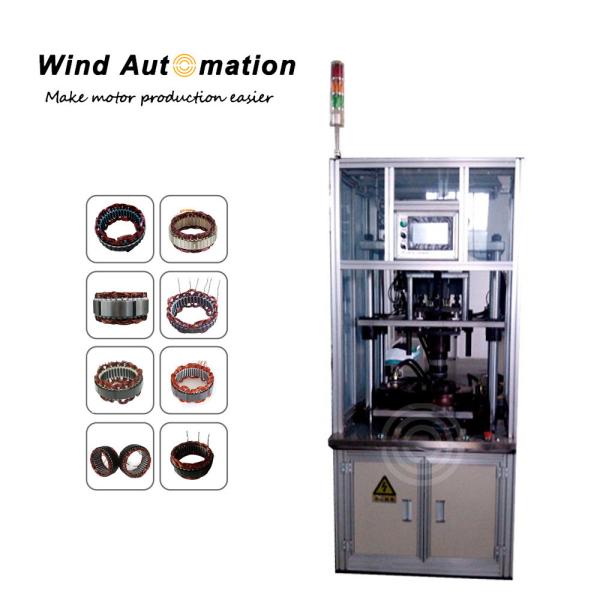

Alternator Stator Coil Forming Machine
Alternator Stator Coil Forming Machine
Specifications
Model NO. :
WIND-CX-C
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Alternator Stator Coil Forming Machine
Alternator Stator Coil Forming Machine
This coil forming machine covers a stack length range within 20-42mm. Both tooling change and mechanical adjustment required for different stack length. This machine adopts a turn-over mechanism. It can produce different types stators by changing tooling.
(1)Features
Operation time less 20s.
Operation height is 1050mm
Manually loading and unloading
Fast tooling change design within 20 min.
Fully programmable operation
Parameter adjustable according to different stators
Applied as a stand-alone machine or integrated into a production line

(2)Machine configuration
Item Brand
Guideway ABBA/TCP
Sensor Sick
PLC MITSUBISHI
Touch screen MITSUBISHI
Electrical components Schneider
Pneumatic Components Festo
Hydraulic system Kompass

(3) Operation process
Manually load stator into the fixture.
Press Start button then machine will automatically do forming process.
After forming, unload stators.

Alternator Stator Coil Forming Machine
Alternator Stator Coil Forming Machine
Alternator Stator Coil Forming Machine
