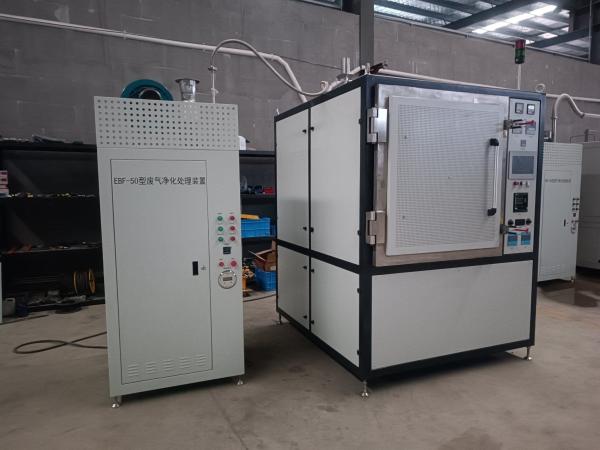

ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere
Specifications
Model NO. :
SXL64-17NH
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Effective Chamber Dimensions :
400*400*400mm(W*H*D)
Atmosphere :
Nitrogen/Hydrogen
Transport Package :
Wooden Package
Specification :
1200*1950*1250mm (W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
1. Equipment Name and Model:
SXL64-17NH High-temperature Atmosphere Box Furnace

2. Application Field:
It is mainly used for the high-temperature co-firing process of alumina substrates and metal pastes (HTCC) in a nitrogen-hydrogen atmosphere.

3. Technical Indicators and Basic Configuration
3.1 Rated Temperature: 1600°C;
3.2 Maximum Temperature: 1700°C;
3.3 Effective Dimensions: 400×400×400mm (Width×Height×Depth);
3.4 Heating Element: U-shaped molybdenum wire;
3.5 Process Atmosphere: Nitrogen/hydrogen, with a humidification function;
3.6 Temperature Control Stability: ±1°C, with a PID parameter self-tuning function;
3.7 Temperature Uniformity: Better than ±3°C (Tested in an empty furnace at a constant temperature of 1600°C for 2 hours);
3.8 Temperature Control Thermocouple: B graduation;
3.9 Number of Temperature Control Points: 1;
3.10 Number of Temperature Control Segments: 4×10 segments;
3.11 Exhaust Chimney: One exhaust port, equipped with an ignition device;
3.12 Alarm and Protection: Acoustic and optical alarm protection for over-temperature, broken thermocouple, etc., and it has the function of over-temperature alarm and power-off protection;
3.13 Maximum Heating-up Power: 25kW;
3.14 Insulation Power of the Empty Furnace: ≤15kW;
3.15 Heating-up Rate: RT~1000°C ≤ 5°C/min, 1000~1600°C ≤ 2°C/min;
3.16 Surface Temperature Rise: < 35°C;
3.17 Equipment Weight: Approximately 960 Kg;
3.18 Reference Dimensions of the Appearance: 1200×1950×1250mm (Width×Height×Depth), subject to the final product;
3.19 Appearance Color: Light gray;
3.20 Remarks: The equipment reserves the air intake pipelines for oxygen/compressed air, and the flow measurement range is 5~50L/min.
IV. General Technical Description

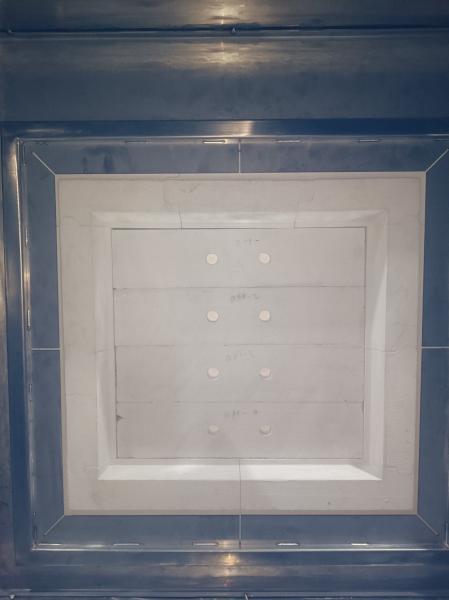

The equipment is mainly composed of the outer shell, the sealed furnace body, the furnace chamber, the vacuum atmosphere system and the temperature control system.
ISO Certified Sxl64-17nh Temperature Atmosphere Box Furnace for Controlled Atmosphere and Nitrogen/Hydrogen Atmosphere

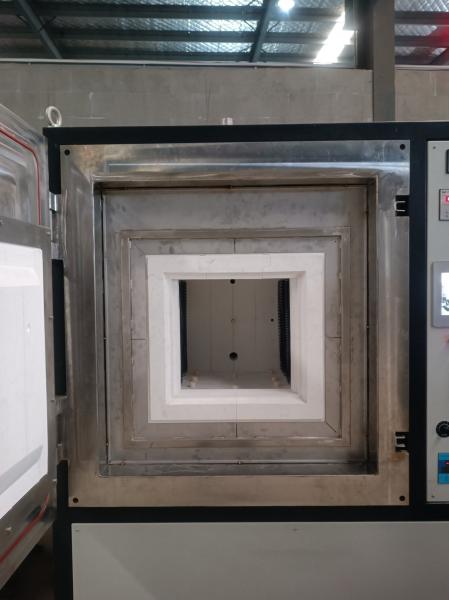

Figure 1 Schematic Diagram of the Furnace Chamber
Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts molybdenum wire 1 Set
Dew point meter 1 PC
Temperature Controller 1 Set
Touch screen 1 Set
Vacuum system 1 Set
Oxygen Analyzer 1 Set
Hydrogen alarm instrument 1 Set
Water chiller 1 Set
Spares Heating Elements Molybdenum Coil 4 PC
