Specifications
Model Number :
Hbf52-17o
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air/Oxygen
Effective Chamber Dimensions :
350*300*500mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1620*1960*1220mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

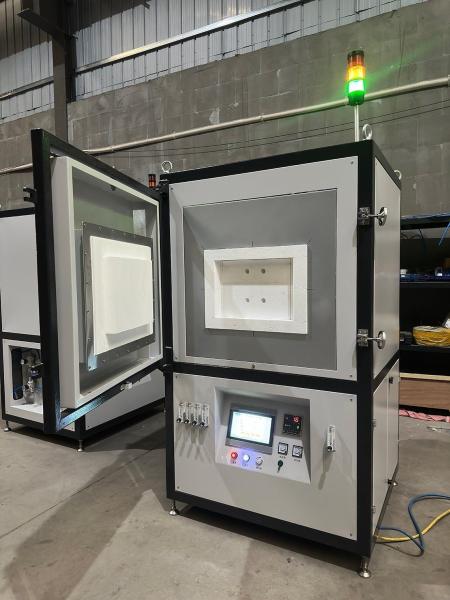

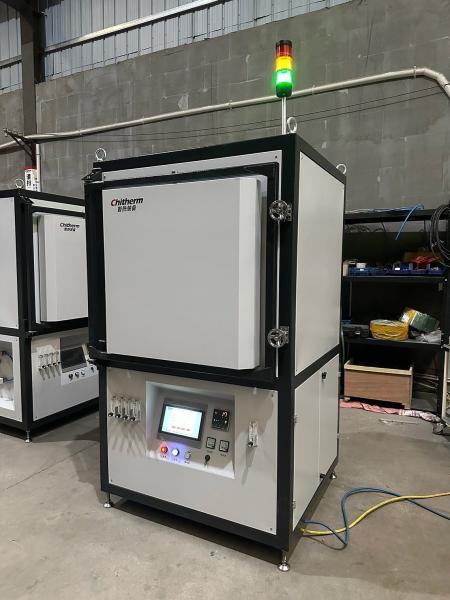

High Temp. Box Furnace Chitherm Hbf52-17ohigh for Ceramic Sintering 1620*1960*1220mm W*H*D

1. Applications:
High-temperature sintering processes are widely used for ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, and similar products.

2. Mainly Specifics:
  1. Rated Temp.: 1650ºC
  2. Max Temp.: 1700ºC
  3. Effective Dimensions: 350 * 300 * 500mm(W*H*D)
  4. Heating Method: U-shaped Silicon Molybdenum Rod.
  5. Process Atmosphere: Air/Oxygen
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1650ºC test)
  8. Thermocouple: B Type
  9. Temperature control points: 1
  10. Number of Temp. Profiles: 4*16 steps
  11. Exhaust chimney: Located at the top of the furnace chamber, with an automatically opening/closing chimney cover.
  12. Alarm protection: Audible and visual alarms for over-temperature, thermocouple break, and other faults, with power cut-off protection upon over-temperature alarm.
  13. Max Heating Power: 25kW
  14. Insulation Power: ≤ 10kW
  15. Heating Speed: RT~1200ºC≤5ºC/min,1200~1700ºC≤2ºC/min
  16. Surface Temperature Rise: ≤ 35ºC
  17. Weight: about 950kg
  18. Furnace Dimensions: about 1620*1960*1220mm (W*H*D);
  19. Appearance Color: light gray
ODM High Temp Industrial Electric Heat Treatment Furnace For Ceramic Sintering
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements U-shaped Silicon Molybdenum Rod 1 Set
Thermocouple THERMOWAY, B Type 1 PC
Temperature Controller 1 Set
PLC 1 Set

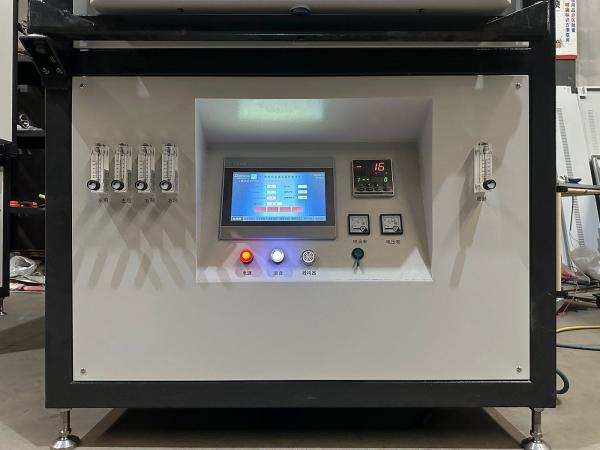

Monitor Proface touch screen 1 Set
Spares SSR 2 Set
U-shaped Silicon Molybdenum Rod 2 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 2 - 6m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 300Kg/m2 .
4.5 Power conditions: capacity greater than 34kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm*3000mm*1500mm (W*H*D), installation area greater than 3m2.
