1. Equipment Overview

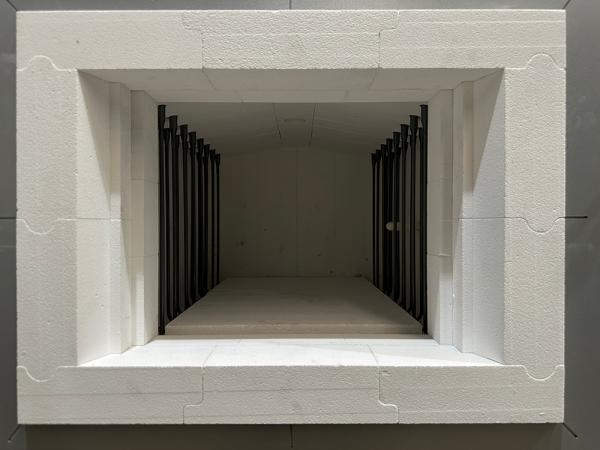

   Heating Element: Silicon molybdenum rods (vertically installed, left-right layout in furnace chamber) ensure temperature uniformity.
   Application: Ideal for laboratory processes, featuring easy operation and excellent temperature uniformity (±5°C @1650°C/2h).

2. Core Performance Parameters
   Item | Specification

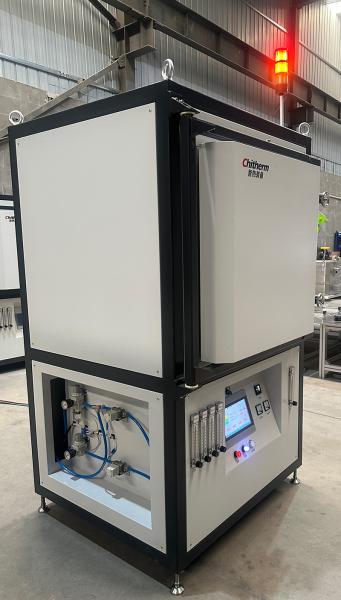

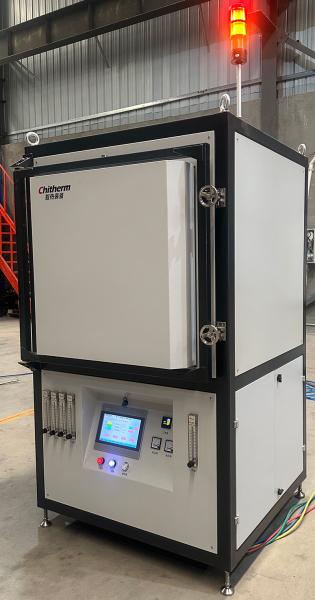

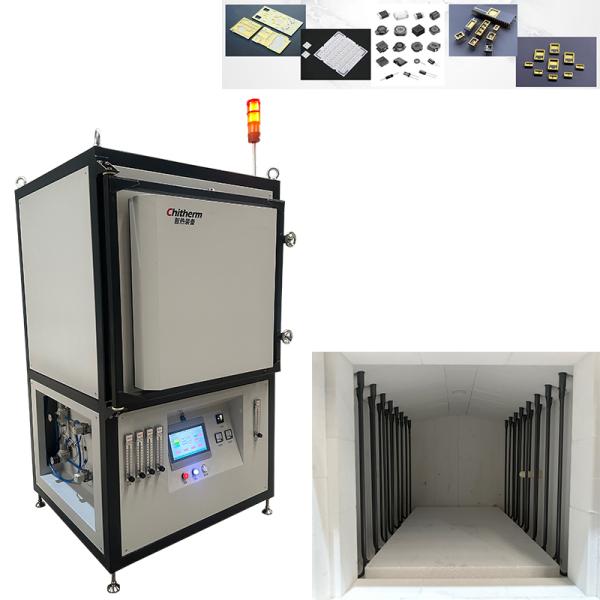

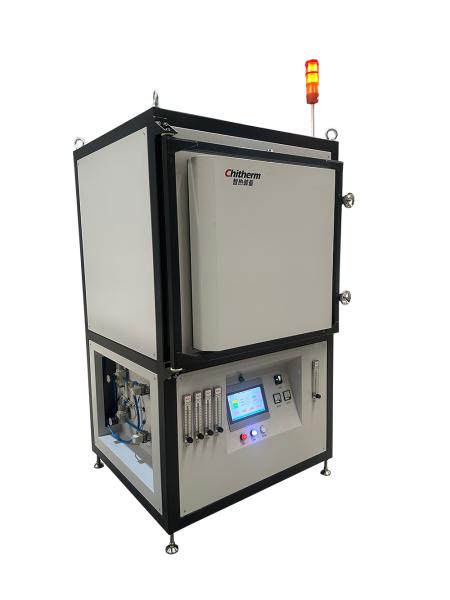

   Model | HBF52-17O High-Temperature Box Furnace
   Temperature Range | Rated 1650°C, Max 1700°C
   Effective Chamber Size (W×H×D) | 350×300×500 mm
   Furnace Lining Material | Alumina products (inner layer)
   Heating Power | ≤25kW

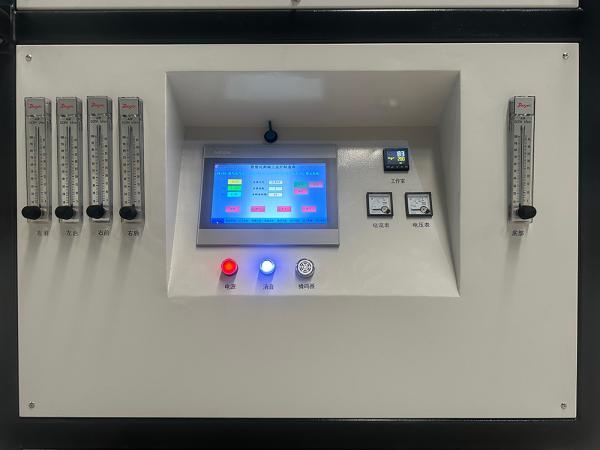

   Temperature Control | Single-zone control, 20 programs × 20 steps (programmable)

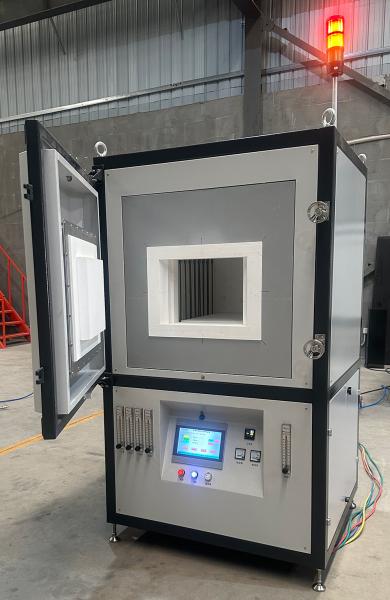

   Safety Protections | Heating/door interlock, over-temperature/thermocouple failure/low-pressure audio-visual alarms
   Power Supply | 3-phase 5-wire, 380±10%V, 50±2%Hz, ≥34kVA, phase-shift control

3. Installation & Operating Conditions
   Environmental Requirements:
   Indoor installation, ambient temperature 0~40°C, free of flammable/corrosive gases or vapors.
   Floor space ≥5㎡, working area: length ≥2.5m, width ≥2m, height ≥3m.
   Requires solid level foundation; total weight ~850kg.

Power & Grounding:
Dedicated 3-phase 5-wire power line (380V±10%, 50Hz±2%). Sharing circuits with high-power equipment is prohibited.
Reliable grounding mandatory.

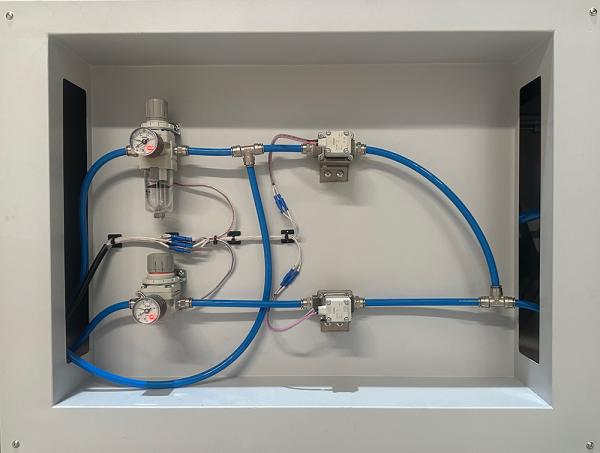

Gas Supply: Intake pressure 0.2~0.4MPa.

4. Key Features
   Temperature Uniformity: Optimized silicon molybdenum rod layout ensures ±5°C uniformity (tested at 1650°C plateau).
   Safety: Multi-level protections (interlocks, alarms) support unattended operation.
   Flexibility: 20×20-step programmable control meets complex process requirements.

5. Precautions
   Power Isolation: Requires independent power supply to avoid voltage fluctuation impacts.
   Maintenance: Regularly inspect silicon molybdenum rods and gas path seals.
   Safe Operation: Strictly adhere to grounding and gas pressure requirements to prevent electrical/pneumatic failures.
