Specifications
Brand Name :
Chitherm
Model Number :
HRF535-02 Type
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Year
Delivery Time :
90 work days
Model NO. :
HRF535-02 Type
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
850*700*900mm(W*H*D)
Rated Temperature :
Rt+10~200ºC
Heating Elements :
Custom-Made Squirrel-Cage Heaters
Control Points :
1 Point
Transport Package :
Wooden Packaging
Specification :
1250*1870*1076mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Package Size :
1600.00cm * 1550.00cm * 2250.00cm
Package Gross Weight :
709.000kg
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description

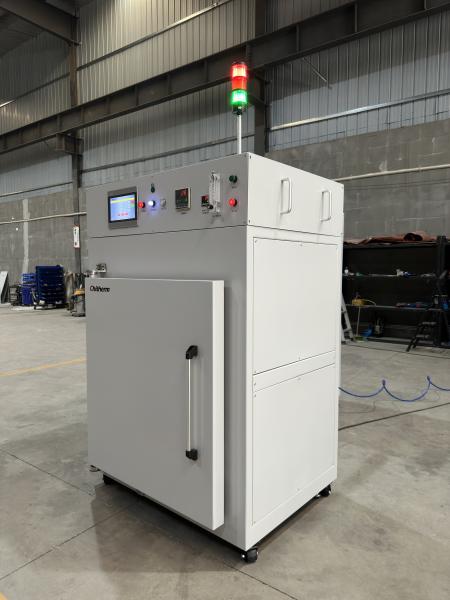

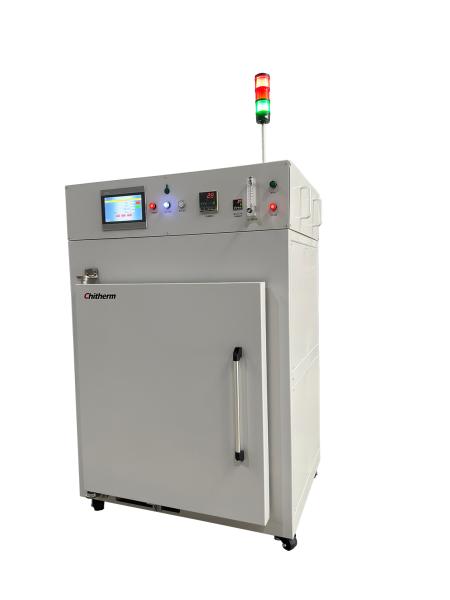

Advanced Industrial Electric Furnace HRF535-02 Hot Air Box Furnace
Product Specifications
Attribute Value
Model NO. HRF535-02 Type
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Drying
Fuel Electric
Atmosphere Nitrogen
Effective Chamber Dimensions 850*700*900mm(W*H*D)
Rated Temperature Rt+10~200°C
Heating Elements Custom-Made Squirrel-Cage Heaters
Control Points 1 Point
Transport Package Wooden Packaging
Specification 1250*1870*1076mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Package Size 1600.00cm * 1550.00cm * 2250.00cm
Package Gross Weight 709.000kg
Customization Available
Certification ISO
Place Style Vertical

Shipping Information: Contact the supplier about freight and estimated delivery time.

Payment Options: Support payments in USD

Secure payments: Every payment you make on Made-in-China.com is protected by the platform.

Refund policy: Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Product Features
Core Parameters
  • Temperature Control Performance
    Operating Range: RT+10～200°C (Max. 200°C)
    Precision Control: ±1°C (Stability) / ±3°C (Uniformity @150°C Empty Chamber)
    Program Capability: 20 Groups × 20 Segments (Programmable)
  • Structural Features
    Effective Volume: 0.535m³ (850×700×900mm)
    Multi-layer Design: 4 Layers of SUS304 Stainless Steel Trays

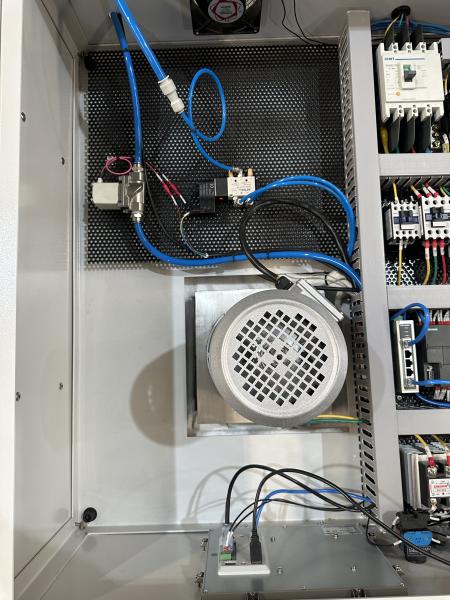

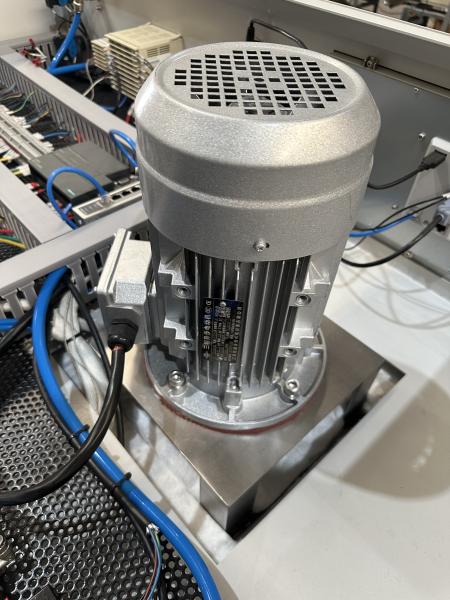

    Hot Air System: Squirrel-cage Heater + Forced Circulation
Key System Configurations
  • Gas Control
    Dual Gas Source Support: Compressed Air / Nitrogen (Optional)
    Flow Adjustment: 24-240 LPM (Glass Rotameter)
    Exhaust Treatment: Requires >15m³/h Extraction System
  • Safety Protection
    Triple Protection: Overtemperature / Thermocouple Break / Motor Overload
    Surface Temperature Rise: <35°C (Complies with Industrial Safety Standards)
Installation Requirements
  • Basic Conditions
    Power Configuration: 14kVA Three-phase Power Supply (380-415V±10%)
    Gas Source Quality: Clean Compressed Air with Dew Point ≤-20°C
    Floor Load-bearing: ≥500kg/m² (Including Total Equipment Weight)
  • Space Layout
    Minimum Installation Area: 3㎡ (Including Maintenance Access)
    Height Restriction: Requires 3000mm Vertical Clearance
Application Tips
  • Process Adaptability
    Especially Suitable for Step Heating Processes in Electronic Ceramics
    Sensitive Material Debinding Possible in Nitrogen Protection Mode
  • Energy Efficiency Management
    No-load Power Consumption ≤5kW (Recommended Full-load Operation Time <8h> Recommended Heat Recovery System to Improve Energy Utilization
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
Delivery List
Item Note QTY
Basic Compositions Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set

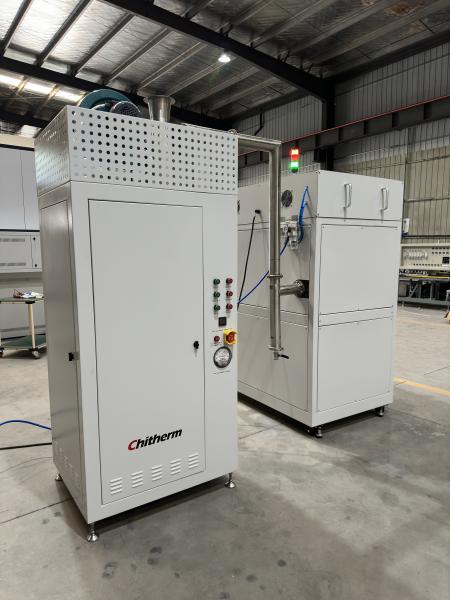

Waste Gas Incinerator 1 PC
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts
Heating Elements Customized Heater 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares
SSR 1 PC
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
