Nitrogen Atmosphere Hot Air Drying Oven Precision Temperature Control Safety Protection Hot Air Drying Oven
Nitrogen Atmosphere Hot Air Drying Oven Precision Temperature Control Safety Protection Hot Air Drying Oven
Specifications
Brand Name :
Chitherm
Model Number :
HRF535-02 Type
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
90 work days
Rated Temperature :
Rt+10~200ºC
Transport Package :
Wooden Packaging
Trademark :
Chitherm
Customization :
Available
  :
Support payments in USD
Model :
HRF535-02 Type
Description

​​Industrial Precision Drying System - Technical Specifications​​

​​I. Core Performance Features​​

​​Precision Thermal Management​​

  • ​​±1°C Temperature Accuracy​​: Japanese PID controllers with K-type thermocouples

  • ​​Advanced Programming​​: 20 programs × 20 segments for complex thermal profiles

  • ​​Optimized for Ceramics​​: Specialized binder burnout process control

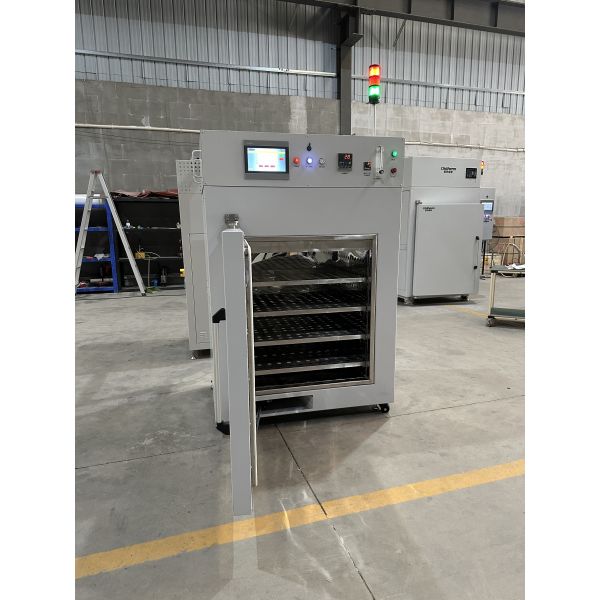

Nitrogen Atmosphere Hot Air Drying Oven Precision Temperature Control Safety Protection Hot Air Drying Oven

​​Uniform Heating Technology​​

  • ​​±3°C Chamber Uniformity​​: Stainless steel construction with squirrel-cage heaters

  • ​​High-Capacity Design​​: 4-tier 850×700×900mm rack (0.54m³ capacity)

​​Comprehensive Safety Systems​​

  • ​​Triple Protection​​: Overtemperature/thermocouple/overload safeguards

  • ​​Surface Safety​​: <35°C external temperature rise

  • ​​Optional Nitrogen Blanket​​: 240LPM flow for oxidation prevention

​​II. Operational Guidelines​​

​​Installation Requirements​​

  • ​​Structural​​: >500kg/m² load capacity with vibration isolation

  • ​​Ventilation​​: Minimum 15m³/h exhaust with recommended carbon filtration

​​Gas System Specifications​​

  • ​​Air Preparation​​: Triple-stage filtration (oil/water/drying)

  • ​​Nitrogen Quality​​: ≥99.9% purity for sensitive materials

​​Efficiency Optimization​​

  • ​​Standby Consumption​​: ≤5kW idle power

  • ​​Loading Recommendation​​: 70-80% tray capacity for peak efficiency

​​III. Standard Process Parameters​​

Process Application

Temperature

Ramp Rate

Duration

Atmosphere

Ceramic Binder Removal

150±3°C

2°C/min

4-6h

N₂ 60LPM

Dielectric Paste Drying

80±1°C

5°C/min

2h

Air 30LPM

​​IV. Standard Delivery Package​​

Component

Specification

Qty

Main Unit

Industrial Dryer

1

Certification

Full compliance documentation

1 set

Exhaust System

Waste gas incinerator

1

Documentation

Technical manuals

1 set

Heating System

Custom elements

1 set

Temperature Probe

WATLOW/THERMOWAY K-type

1

Control System

Touchscreen interface

1 set

Replacement Parts

Solid-state relay

1
