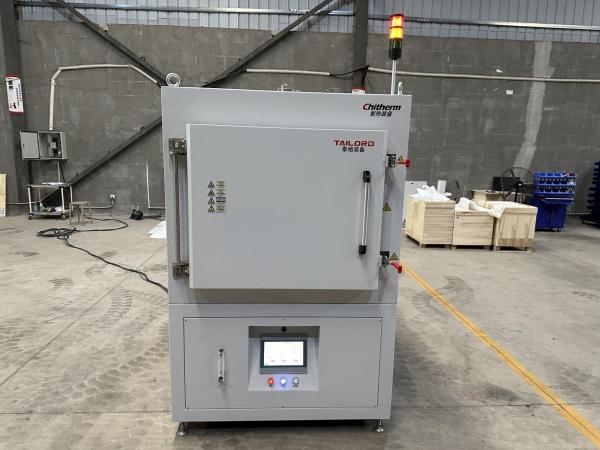

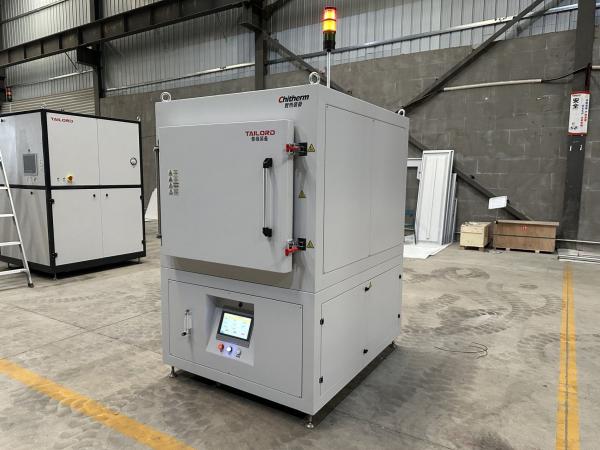

Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Industrial Scientific Hot Dry Oven For Ceramic Substrates BBO Process
Specifications
Model Number :
HRF216-07
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Atmosphere :
Air
Effective Chamber Dimensions :
600*600*600mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1300*1710*1800mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Description
1300*1710*1800mm W*H*D Chitherm Hrf216-07 Hot Air Dryer Perfect for Various Industrial Applications
1. Applications:
Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

2. Mainly Specifics:
  1. Rated Temp.: 600ºC
  2. Max Temp.: 650ºC

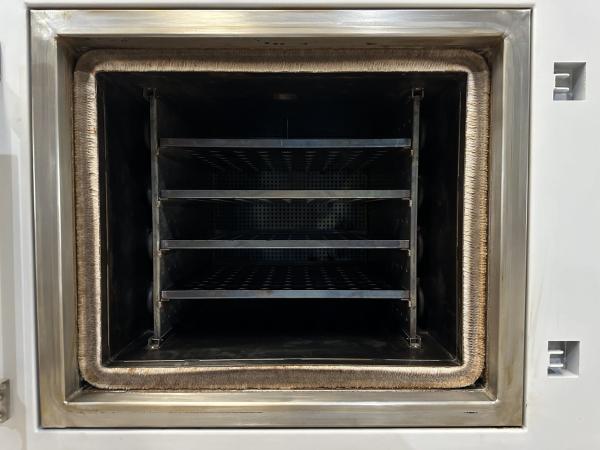

  3. Effective Dimensions: 600 × 600 × 600mm(W×H×D)
  4. Heating Method: Stainless Steel Heater
  5. Process Atmosphere: Air
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
  8. Thermocouple: Type K
  9. Temperature control points: 1
  10. Temperature measurement points: 1 point
  11. Process Steps: 4 × 16 steps
  12. Exhaust: One exhaust port on top
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
  14. Max Heating Power: 24kW
  15. Insulation Power: ≤ 12kW
  16. Surface Temperature Rise: ≤ 35ºC
  17. Weight: about 1000kg
  18. Furnace Dimensions: about 1300×1710×1800mm (W×H×D);
  19. Appearance Color: light gray
3. Delivery List
Item Note QTY
Basic Compositions Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements Stainless Steel Heater 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Air circulator Water cooling fan
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares SSR 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3-7m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2 .
4.5 Power conditions: capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
