Specifications
Model Number :
HRF535-02
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
850*700*900mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1440*1930*1080mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Description

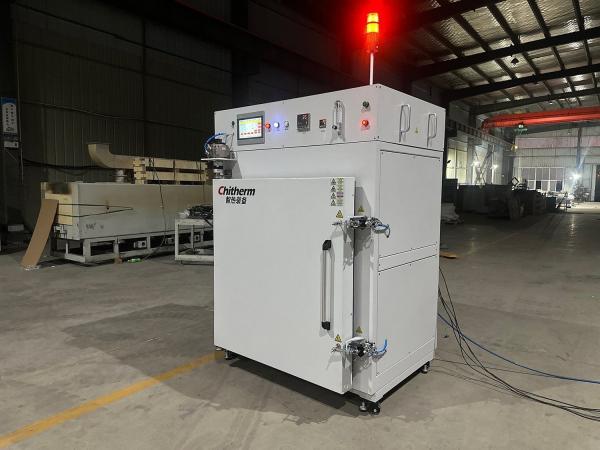

Chitherm HRF535-02 Hot Air Box Furnace for Heat Treatment Processes 1440*1930*1080mm W*H*D
1. Applications:
Widely used in processes such as constant temperature drying, curing, and glue dispensing for electronic ceramics and other products.

2. Mainly Specifics:
  1. Rated Temp.: RT+10 ~200ºC
  2. Max Temp.: 300ºC
  3. Effective Dimensions: 850×700×900mm(W×D×H)
  4. Heating Method: Customized Heater
  5. Process Atmosphere: Nitrogen
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±3ºC (insulation 1 hour at 200ºC test)
  8. Thermocouple: Type K
  9. Temperature control points: 1
  10. Temperature monitoring points: 1 point
  11. Process Steps: 20 steps
  12. Exhaust: One exhaust port on top
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
  14. Max Heating Power: 10kW
  15. Insulation Power: ≤ 5kW
  16. Surface Temperature Rise: ≤ 35ºC
  17. Weight: about 700kg
  18. Furnace Dimensions: about 1400mm×1930mm×1080mm(W×H×D);
  19. Appearance Color: light gray
3. Delivery List
Item Note QTY
Basic Compositions Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements Customized Heater 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares SSR 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 5-15m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2 .
4.5 Power conditions: capacity greater than14kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×2100mm×3000mm (W×H×D), installation area greater than 5m2.
