Specifications
Model Number :
SZC-180
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Drying
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
600*500*600mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1440*1930*1080mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

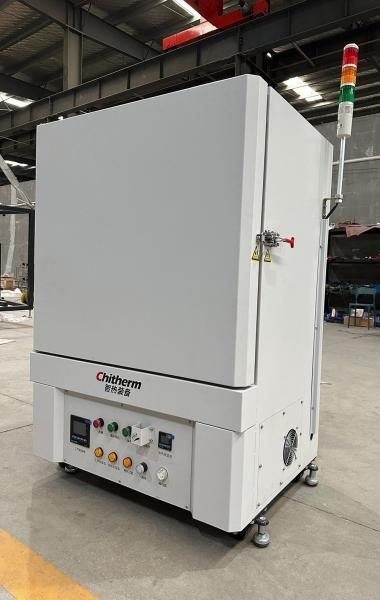

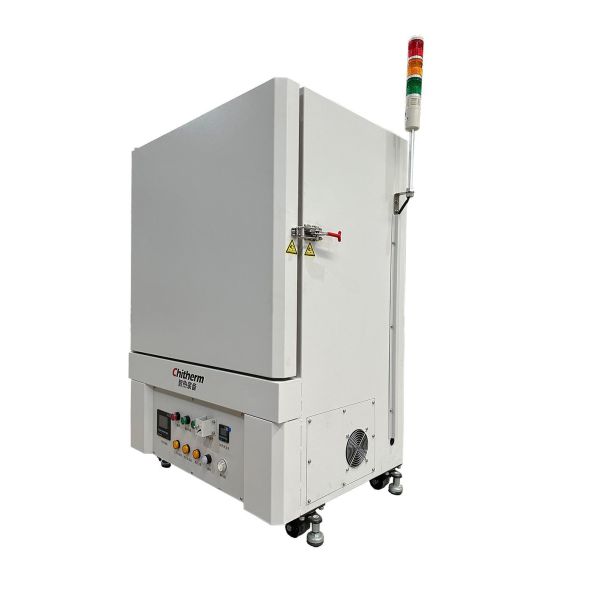

Electric Clean Drying Oven with 200 ordm C Temperature and 600*500*600mm Effective Chamber Dimensions

Technical Specifications:

  1. Equipment Model: SZC-180 Type Clean Drying Oven
  2. Maximum Temperature: 200°C, Operating Temperature: 85 - 150°C
  3. Oven Dimensions: 900mm × 650mm × 1150 mm (L × W × H)
  4. Chamber Dimensions: 600mm × 500mm × 600mm (L × W × H)
  5. Design Power: 4 kW
  6. Insulation Power: 2 kW
  7. Electrical Supply: 220V, 50Hz
  8. Heating Element: High-quality heating wire, lightweight fiber material with low thermal capacity, excellent insulation properties, fast heating, energy-saving, time-saving, and easy environmental temperature control.
  9. Insulation Material: Aluminum Silicate Fiber Blanket

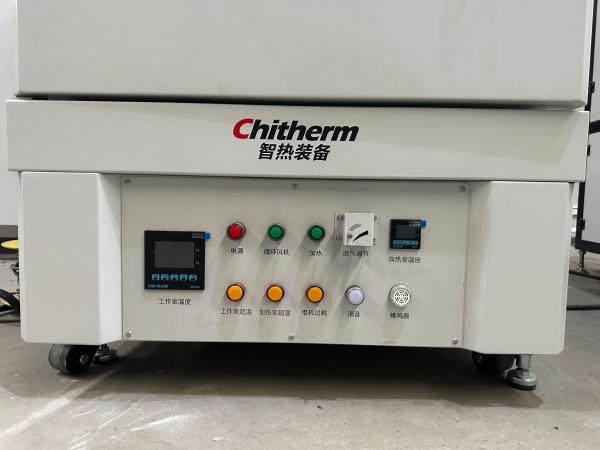

  10. Control Method: Imported single-loop intelligent temperature controller with PID control, auto-tuning of parameters.
  11. Number of Temperature Control Zones: 1
  12. Alarm Protection: Over-temperature, circulating fan failure, etc., with audio-visual alarm protection and automatic power cutoff. After a high-temperature alarm cuts off the power, the heating power can only be manually restored when the temperature drops to the normal operating range before restarting.
  13. Temperature Control Accuracy: ±1°C
  14. Temperature Uniformity: ≤±2°C
  15. Fan Power: 1/4 HP motor, high-temperature resistant, low noise
  16. Insulation Protection: Independently processed extended shaft core for the fan
  17. Impeller Structure: Multi-blade design
  18. Airflow Channel Design: Unique design with porous stainless steel walls, ensuring no dead spots in circulation.
Industrial Electric Clean Hot Air Oven Drying 200 Ordm C 220V 50Hz


Facility Requirements
1 .Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2.Ventilation system: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 20 m³/h.
3 .Floor: Level, without significant vibration, load-bearing capacity > 500 Kg
4 .Power conditions: Capacity greater than 6 KVA, three-phase five-wire, voltage 220/380V, frequency 50Hz. Live wire: yellow, green, red; neutral wire: blue; earth wire: yellow-green. This power line is a dedicated line, please distribute power separately. Power sources for precision instruments and large power conversion equipment such as welding machines, electric furnaces, metal cutting machine tools, etc., should not be connected to this distribution system.
5. Installation site: 1800×1200mm×1500mm (L×W×H), installation area greater than 2 m²
