High Performance Solution for Dust-Catching Glue in Camera Manufacturing

As smartphone cameras evolve, Compact Camera Modules (CCM) continue to push the limits of size, resolution, and durability. One critical process in CCM manufacturing is dust-catching glue dispensing, which requires consistent adhesive thickness and stable efficiency to ensure lenses and sensors remain contamination-free.

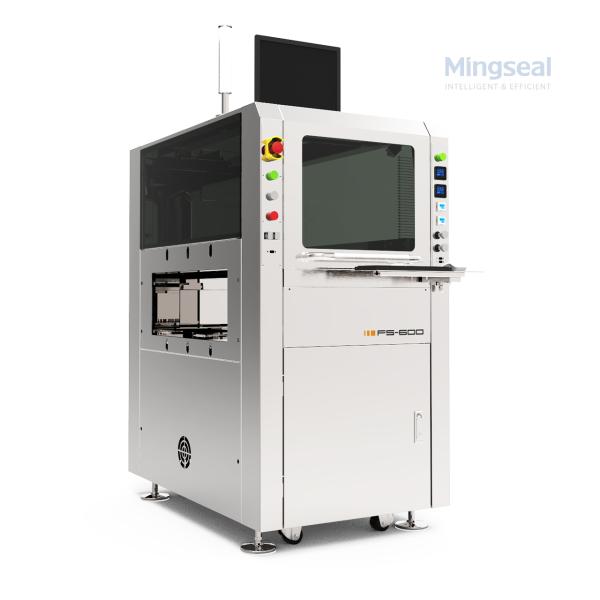

The Mingseal FS600 Series Inline Visual Dispensing Machine is engineered specifically to meet the unique challenges of dust-catching glue applications. It combines high-speed inline dispensing, precise thickness control, and automatic glue defect inspection to deliver robust results for high-volume production lines in Southeast Asia, India, and other global consumer electronics hubs.

Key Advantages

• Flexible Thickness Process Control: Choose between high-speed jet valve or pad printing machine based on layer thickness.
• Stable Inline Visual Positioning: Integrated high-resolution camera automatically aligns the nozzle and workpiece for repeatable accuracy.
• Glue Integrity Detection: Built-in sensors inspect glue beads for breaks, overflow, or missing spots in real time.
• Consistent Coating & High Efficiency: Ensure fast cycle times and minimal downtime for large CCM production runs.

Typical Applications

✔ Dust-catching glue for CCM lens and barrel sealing
✔ Gap-filling and underfill for camera modules
✔ Micro-coating for sensor modules and optical barrels
✔ Surface protection adhesive for optical parts
✔ Encapsulation of small lens components with consistent layer thickness

FAQ

Q1: Why is dust-catching glue critical for CCM modules?
A: Dust-catching glue prevents foreign particles from entering sensitive camera optics during assembly, ensuring higher yields and better lens clarity.

Q2: How does the FS600 Series manage different coating thicknesses?
A: For coatings above 30μm, it uses a high-speed jet valve. For thin layers below 30μm, the built-in tamp-printing head (FS600A module) provides uniform spreading without excess flow.

Q3: What if glue breaks or leaks occur during dispensing?
A: The machine’s real-time sensors check each bead for breaks, overflow, or missing spots, stopping the line if an issue is detected to prevent defective modules.

Q4: Can this system be integrated into our MES network?
A: Absolutely. The FS600 Series supports SECS-GEM/MES for full traceability, recipe management, and real-time production monitoring.

Q5: Where does Mingseal provide support?
A: Mingseal supports camera module makers across Southeast Asia, Vietnam, Korea, and other global hubs with local training, remote diagnostics, and rapid service response.

About Mingseal

Mingseal is a leading precision dispensing equipment manufacturer with decades of experience in high-end electronics production. Our smart inline systems, proprietary vision algorithms, and advanced process modules help top CCM and optical module factories worldwide achieve stable output and premium yield.

Contact Mingseal today for a free consultation, process demo, or custom solution for your dust-catching glue production line!
