High-Speed Inline Visual Dispensing System for MiniLED & FPC Applications

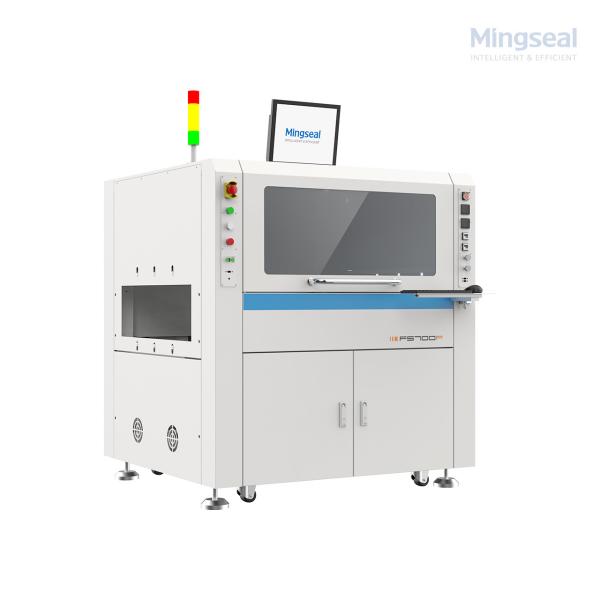

The FS700F Inline Visual Dispensing Machine is an advanced inline dispensing solution built to handle wide-format, high-precision production needs for industries such as MiniLED backlight manufacturing, power battery FPC assembly, and next-generation consumer electronics.

With a large dispensing range of 900 × 600 mm, automatic width adjustment, and smart visual alignment, the FS700F is perfectly suited for multi-size PCB and FPC boards. Its intuitive system supports real-time monitoring, recipe management, and seamless MES integration, enabling high-mix, high-volume lines to meet ever-increasing yield and traceability requirements.

Competitive Advantages

• Large-Area Precision Dispensing: Supports wide-format boards with stable motion and repeatability down to ±0.015 mm.
• Flexible Dual-Valve Mode: The system handles single or multi-step processes with valves running together or independently.
• Automatic Track Width Adjustment: Easily accommodates different panel widths (150–500 mm) without manual intervention.
• Integrated Visual Inspection: High-resolution camera system and optional RGB light source provide clear alignment for transparent or complex adhesive paths.

Main Application Areas

✓ FPC Component Encapsulation
✓ SMT Component Dispensing Protection
✓ MiniLED Dam & Fill Process
✓ Flip-Chip and BGA Underfill
✓ NTC Encapsulation

Core Modules

Double-Valve Synchronization Module-1

Synchronous operation of double valves (double heads with position compensation function)

More efficient operation

Double-Valve Synchronization Module-2

Synchronous operation of double valves (fixed distance between double valves)

More efficient operation

Double-Valve Asynchronization Module

Asynchronous operation of double valves

Completion of two dispensing processes in the same machine

Q&A

Q: How does FS700F ensure perfect glue control for large MiniLED panels?
A: Its stable gantry design, high-speed linear motors, and micron-level vision correction deliver precise glue lines and sharp edges—crucial for large backlight panels and fine-pitch LEDs.

Q: Why choose dual-valve synchronous/asynchronous dispensing?
A: This allows different glue tasks (e.g., Dam & Fill) to run at the same time or separately, maximizing UPH and reducing cycle time for multi-step processes.

Q: Is FS700F easy to integrate into an existing FPC line?
A: Yes—automatic track adjustment, real-time monitoring, and full MES connectivity make it an easy fit for high-mix lines in Southeast Asia and other dynamic electronics hubs.

Q: Can it handle various glue types?
A: The FS700F supports multiple adhesive viscosities, from underfill and Dam to transparent fillers, ensuring perfect compatibility for advanced electronic assemblies.
