Optical Components Dual-Valve High-Precision Dispensing Machine

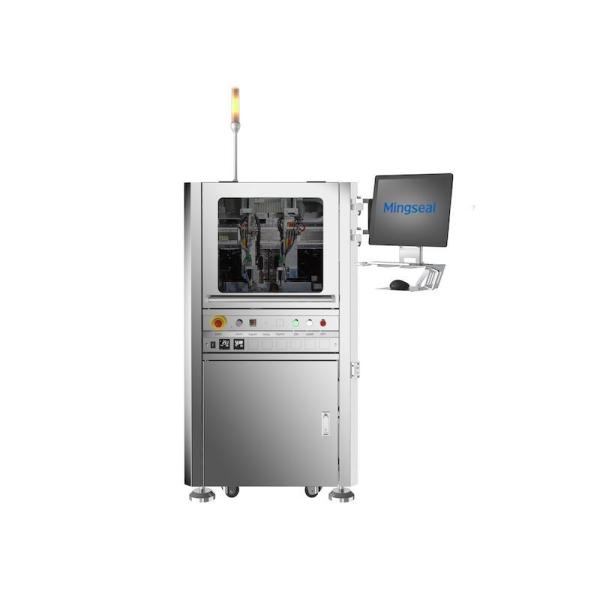

The GS600SD Dual-Valve Dispensing Machine is a cutting-edge inline dispensing solution purpose-built for advanced industries such as semiconductor packaging, camera module assembly, and high-precision optical parts. Combining flexible dual-track operation with double-valve technology, the GS600SD dramatically boosts throughput while saving valuable production floor space.

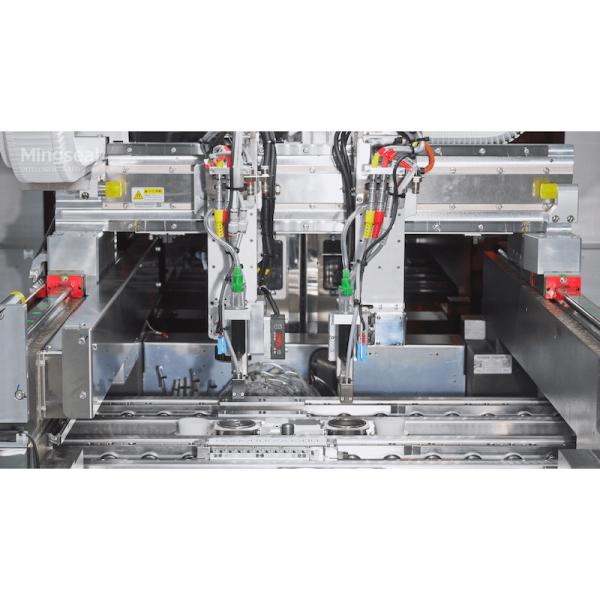

By upgrading from a single valve to a synchronized double-valve setup, manufacturers gain up to 50% higher efficiency. The minimum valve-to-valve dispensing distance is only 45mm, which allows denser product layouts on the same line. Combined with dual-track workstations, this ensures the entire line runs smoother, faster, and with minimal downtime.

Key Advantages

• Dual-Valve, Dual-Track Power
  Operate two valves independently or simultaneously to handle different glue types or processes in parallel — saving space and doubling output versus single-head systems.
• Ultra-Precise Micro Dispensing
  Achieve stable repeat positioning of ±0.01mm and consistent micro volumes as low as 0.0032mg — critical for precision electronics and semiconductor encapsulation.
• Smarter Glue Control

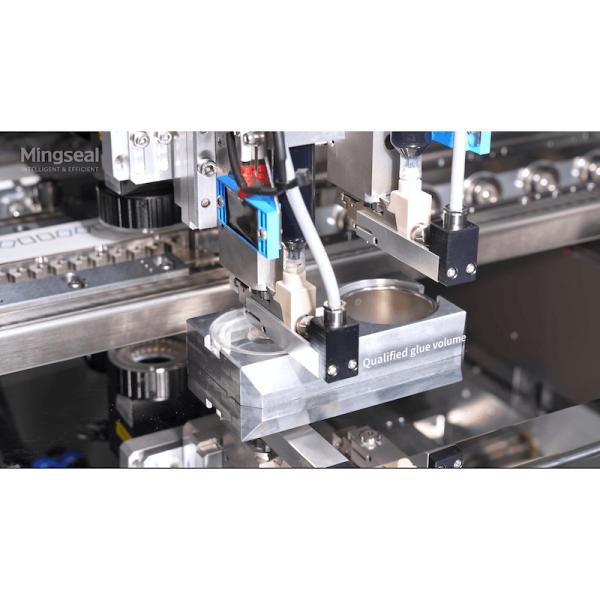

  Adjust lift height, valve opening time, and dispensing frequency dynamically to control glue flow. Higher lift speeds, longer valve dwell time, and increased frequency result in accurate cavity fill without overflow.
• Auto-Adaptive Angle & Position
  Automatically aligns the dispensing position and angle for each workpiece to ensure perfect glue placement, even with product variations.
• Higher Placement Density
  The double-valve design achieves minimum valve spacing of just 45mm, boosting part placement density on the conveyor and maximizing line utilization.

Main Applications

✔ Semiconductor packaging: Coating, encapsulation, lid attach
✔ Optical module assembly: Lens bonding, component reinforcement
✔ Mobile camera and vibration motor modules: Dam & Fill, micro-bonding
✔ Advanced PCB production: Fine-pitch underfill and glue sealing

FAQ

Q1: How does the GS600SD improve efficiency compared to a single-valve machine?
A: The dual-valve setup can process two parts or two glue types in parallel, increasing output by up to 50% and reducing downtime between tasks.

Q2: Can it handle tight production space?
A: Yes — the dual-track design saves up to 20% more floor space than running two single-head machines side by side.

Q3: Is it easy to maintain glue consistency?
A: Absolutely — the machine adjusts lift height and frequency in real time to control glue flow precisely.

Q4: What makes it suitable for semiconductor lines?
A: Its micro-volume precision, auto-adaptive positioning, and high defect correction rate make it ideal for fine-pitch packaging and lid attach processes.

About Mingseal

Mingseal is an innovative manufacturer specializing in precision fluid dispensing and smart automation systems for electronics, optical modules, and semiconductor industries. Trusted by manufacturers worldwide, Mingseal delivers high-performance solutions that drive yield, productivity, and long-term competitiveness in modern production environments.

Contact Mingseal today to learn how the GS600SD Dual-Valve Dispensing Machine can optimize your production line with unbeatable efficiency and precision.
