High-Efficiency Dispensing Solution for MiniLED and Advanced Electronics

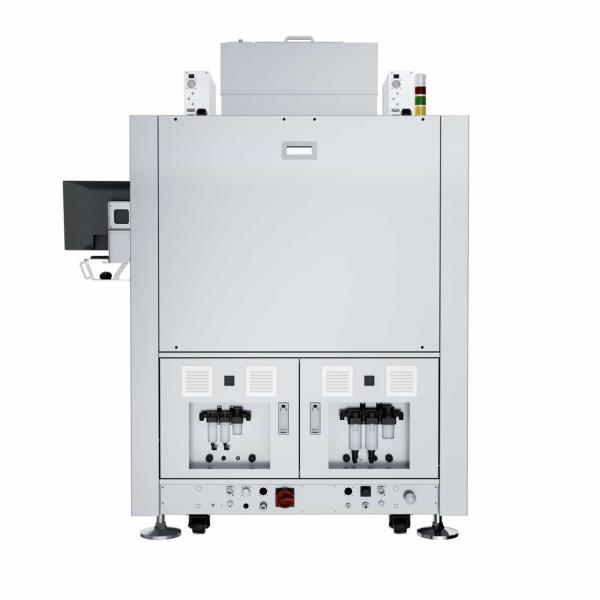

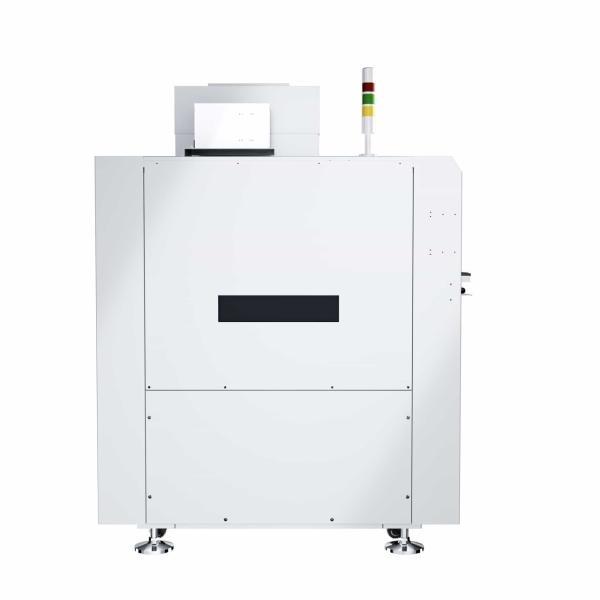

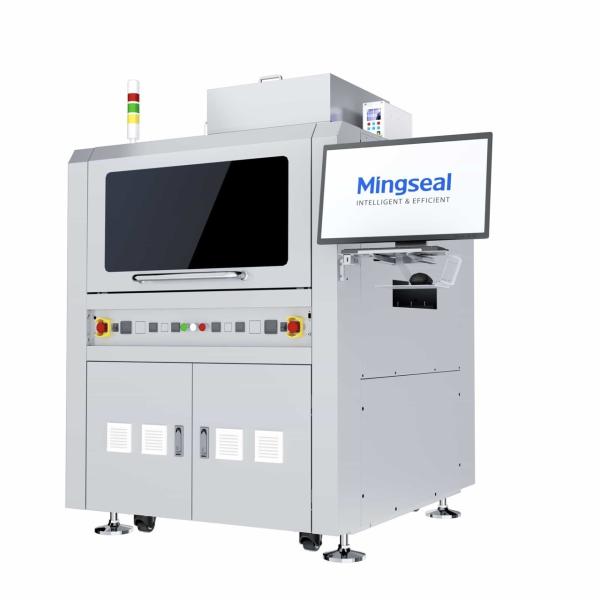

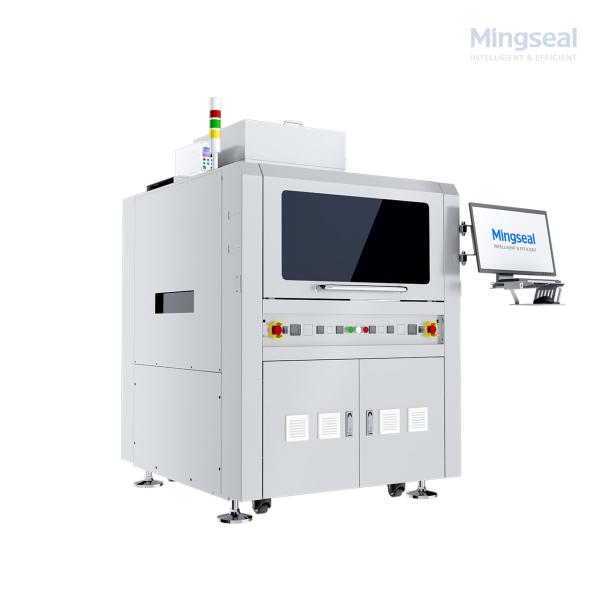

The FS200 Series Online Visual Dispensing Machine is a high-performance inline dispensing solution designed to meet the demanding requirements of the MiniLED, LED, and advanced electronics industries. With a modular design that supports single-track dual-valve or dual-track four-valve configurations, the FS200 Series delivers high UPH and exceptional process flexibility for production lines.

By combining stable motion control with advanced process monitoring and real-time feedback, the FS200 Series helps manufacturers improve yield, minimize material waste, and meet the high flatness standards required for MiniLED backlight modules, display panels, and next-gen optoelectronic devices.

Competitive Advantages

• Flexible Configuration: Supports single-track dual-valve or dual-track four-valve setups to adapt to different production volumes and glue patterns.
• Independent Valve Control: Each valve can operate independently, allowing simultaneous multi-zone or multi-process dispensing on the same line.
• High UPH & Stable Process: Optimized for high-speed inline production with minimal cycle times.
• Advanced Visual System: Integrated high-resolution camera system guarantees micron-level repeatability.


Main Application Areas

✓ MiniLED Backlight Module Fill & Underfill
✓ Dam & Fill Encapsulation for LED Packages
✓ Micro Lens Bonding & Optical Glue Filling
✓ FPC and PCB Edge Sealing
✓ Advanced Consumer Electronics Micro-Dispensing

FAQ

Q: Why is the FS200 Series ideal for high-mix MiniLED lines?
A: Its dual-valve or four-valve design allows you to run multiple glue types and patterns at the same time — perfect for complex processes like Dam & Fill or multi-layer backlight modules.

Q: How does it maintain glue consistency on fine-pitch LEDs?
A: The FS200 Series uses high-resolution vision alignment and stable motion control to ensure every dot is precise, minimizing overflow and dead pixels.

Q: Can I switch quickly between different board types?
A: Yes — with independent valve operation and modular track configurations, switching between products is fast and stable, reducing downtime.

Q: Is it suitable for Southeast Asia factories expanding MiniLED capacity?
A: Absolutely. The FS200 is built for high-volume inline production with stable yield and easy integration into modern MES/SMT lines, making it ideal for LED and display makers in Southeast Asia and beyond.

About Mingseal

Mingseal is a trusted global manufacturer of advanced precision dispensing and micro-assembly equipment, serving customers across MiniLED, LED, consumer electronics, automotive, and semiconductor industries. With strong R&D capability, proven visual dispensing technology, and a commitment to innovation, Mingseal helps factories worldwide achieve stable, high-efficiency smart production. We continue to support partners in Southeast Asia and globally with reliable products, responsive service, and local technical expertise.
