High-Precision Inline Solution for CCM & Optical Module Manufacturing

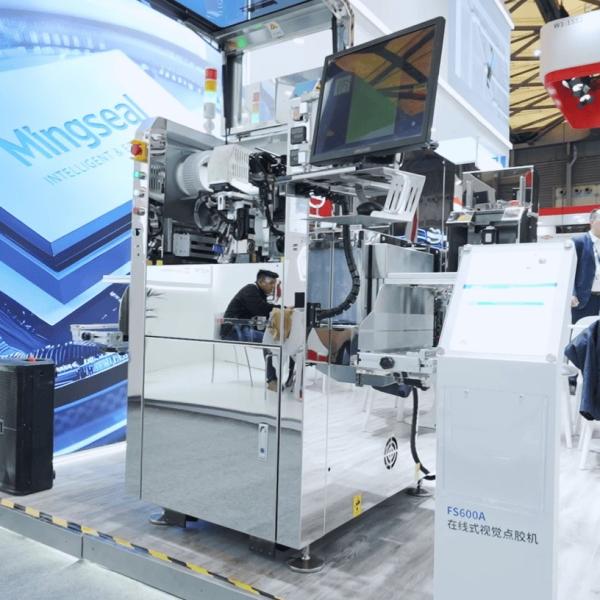

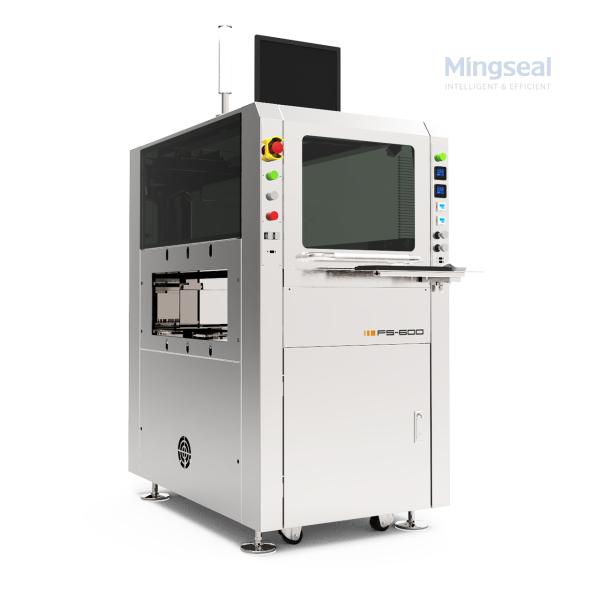

In the competitive optical module and camera module industry, precision and speed are the key to maintaining high yield and quality. The Mingseal FS600 Series Online Visual Dispensing Machine is designed specifically for manufacturers of CCM (Compact Camera Modules), COB (Chip On Board) optical assemblies, and high-density SMT lines.

The FS600 Series offers optional UV curing modules, real-time defect spot detection, and advanced slit inspection to guarantee perfect glue bead formation. With a stable mineral casting base for excellent anti-vibration performance, this machine delivers consistent results even in high-speed, high-volume environments typical of modern CCM and COB production lines in Southeast Asia, India, and other major consumer electronics hubs.

Key Advantages

• Inline Automatic Gap Width Detection: Precisely detects micro gaps between lenses, sensors, and PCBs, ensuring perfect glue fill without overflow or voids.
• Dual-Track Parallel Conveyor: Allows simultaneous multi-board dispensing.
• UV Curing Integration: Enable instant glue curing, critical for fast-cycle CCM lens and COB processes.
• Stable Mineral Base & Precision Positioning: Minimizes vibration, ensuring accuracy.

Typical Applications

✔ CCM (Compact Camera Module) gap filling, underfill, and lens gluing

✔ COB optical component encapsulation

✔ Underfill & Dam-and-Fill for chip bonding

✔ Dust-catching glue and adhesive sealing for lens modules

✔ Solder paste dispensing for optical and LED assemblies

✔ PUR adhesive dispensing for middle bezels and FPC modules

✔ Metal dome or micro-part gluing in high-density PCBs

FAQ

Q1: What unique features does the FS600 Series offer for CCM and COB assembly?
A: Auto gap width detection, inline UV curing, dual-track parallel transport, and real-time glue inspection ensure stable high-yield processes for optical modules.

Q2: How does the machine help control glue precision in narrow gaps?
A: The visual system automatically measures gap size and adjusts dispensing volume in real time, avoiding overflow or underfill.

Q3: Can I connect the FS600 to my MES?
A: Yes — it fully supports SECS-GEM/MES protocols for smart factory integration.

Q4: Does Mingseal provide local support overseas?
A: Yes! Mingseal serves global customers with technical support in Japan, Vietnam, Thailand, Korea, and other key electronics manufacturing regions. We offer remote troubleshooting, training, and on-site service when needed.

About Mingseal

Mingseal is a trusted manufacturer of high-precision dispensing solutions for the global consumer electronics industry. We focus on smart, flexible equipment for optical modules, SMT lines, and advanced PCB assembly. With decades of experience and an independent R&D team, we are committed to helping our partners achieve stable yield and maximum line efficiency.

Contact us today for a custom quote or to book an FS600 Series demo for your CCM or COB production line!
