370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM12N20
Certification :
RoHS,CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
370 geared motor
Dimension :
32mm
Protect Feature :
Totally Enclosed
Direction of Rotation :
CW/CCW
Gearbox Material :
Plastic
Gears :
Plastic gears
Shaft Material :
Carbon Steel or Stainless Steel
Torque :
0.1-1kg.cm
Motor type :
12 volt gear reduction motor
Description
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
Product Overview

DC Gear Motor 370 with 32mm plastic gearbox, 12V gear reduction motor specifically designed for robot vacuum cleaners and various industrial applications.

Technical Specifications
Voltage DC 3V-24V (Customizable)
Speed 2-500 RPM (Customizable)
Power 0.1W-10W (Customizable)
Gearbox Diameter 32mm
Gearbox Material Plastic
Reduction Ratio Customized
Compatible Motors 310, 370 permanent magnet DC motors
Noise Level ≤55 DB
Shaft Material Carbon Steel or Stainless Steel
Shaft Size Diameter: 3mm (Bare / D-Cut / Double D-Cut / Pin Hole / Keyway - Customizable)
Lifetime 100-1000 hours
Certifications CE, RoHS, ISO
MOQ 1000 Pieces
Key Features
  • Durable drip-proof design and permanent magnet construction
  • Resistant to water and dust for harsh environments
  • Wide voltage compatibility (2.4V to 12V versions available)
  • Customizable voltage, speed, torque, and shaft specifications
  • Encoder and gear configuration options available
  • Meets EU environmental standards with low energy consumption and noise
  • Professional quality control system with advanced testing processes

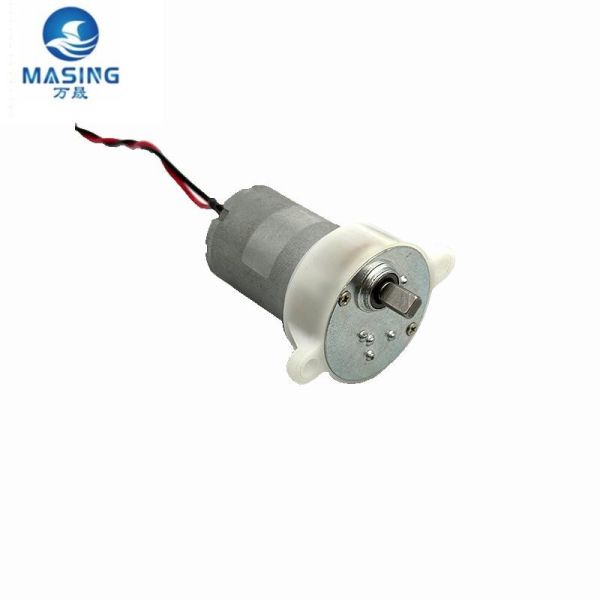

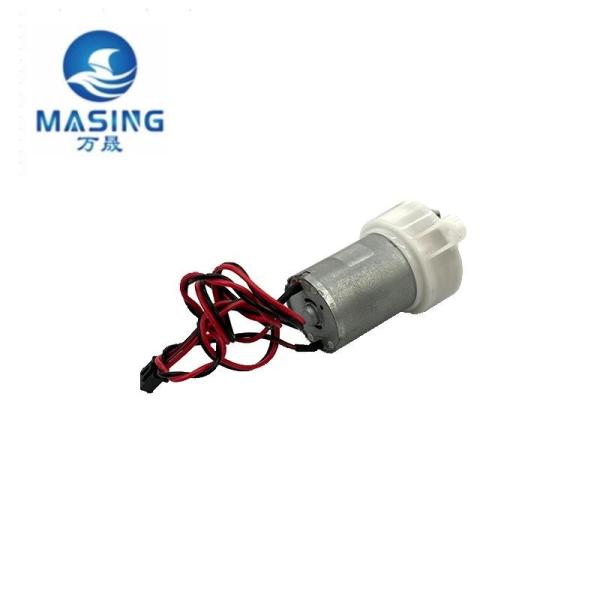

Product Images
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner 370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner 370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
Typical Applications

Robot Vacuum Cleaner, Home Appliances, Smart Home devices, Robotics, Medical Equipment, Automotive Supplies, Security Monitoring, and various industrial automation applications.

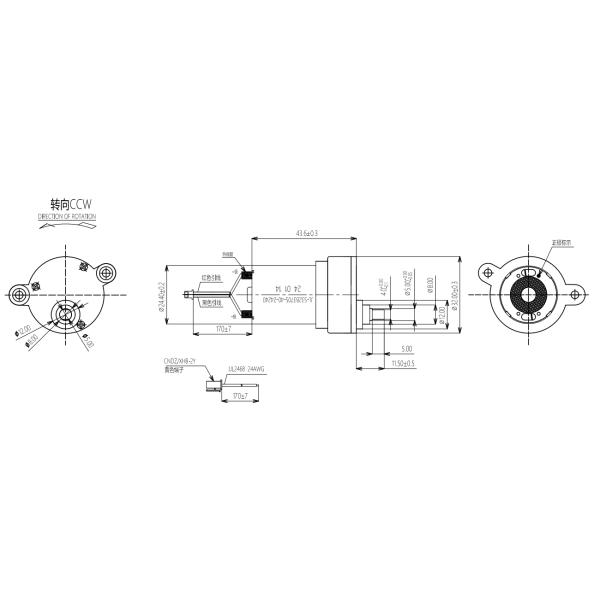

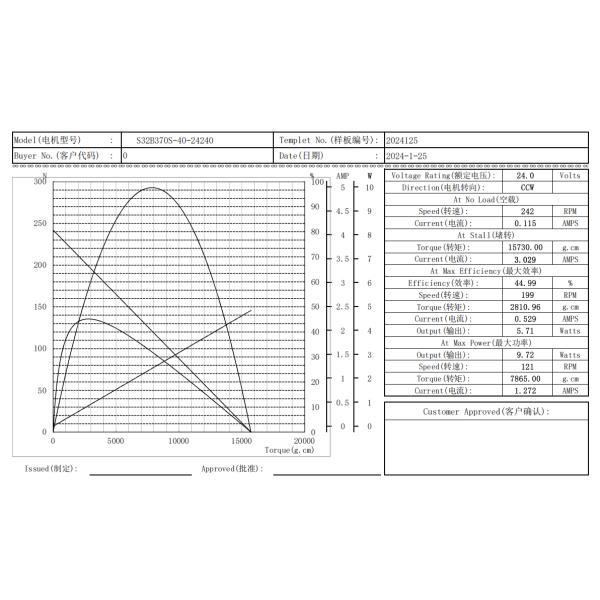

Technical Diagrams
370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner 370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
Packaging & Delivery
Packaging Strong Carton (1000pcs/box) or custom packaging
Shipping Ports Shenzhen / Guangzhou / Shanghai
Unit Size 12*10*24mm
Unit Weight 0.05kg
Supply Capacity 100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1,000 > 1,000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Maximum sample order: 1 piece | Sample price: $5/piece

370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner 370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner 370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner 370 Gear Motor 32mm Plastic Gearbox 12 Volt DC Gear Reduction Motors For Robot Vacuum Cleaner
Frequently Asked Questions
Q1. What is the advantage about your company?
A1. Advanced manufacturing equipment, over 15 years of motor design and manufacturing experience, flexible OEM/ODM customization, advanced automated production equipment, and ISO9001, ISO14001, TS16949 system certifications.
Q2: Can I visit your company?
A2: Yes, welcome to visit our company. Please notify us at least two weeks in advance to schedule your visit.
Q3: What is your guarantee for the products?
A3: We provide technical support and spare parts for repairs if any quality problems occur, and will follow up until you are satisfied.
Q4: What's the minimum order quantity?
A4: Minimum order quantity depends on different motor models. Please email us for specific requirements. We typically do not accept personal use motor orders.
Q5: Can you send me your price list?
A5: Due to hundreds of different products with varying specifications, we cannot provide a general price list. However, we can quote within 24 hours upon receiving your inquiry.
Q6: What kind of data do I need to provide if I want to order?
A6: Please provide your rated voltage, no load speed, load speed, load torque, and overall dimension requirements.
Q7: What certifications do you have?
A7: We currently have CE, ISO, EU, and RoHS certifications.
