3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM12N20
Certification :
ROHS CE ISO 16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
12mm Small Dc Gear Motors 12GA-N20
Shaft type :
Flat ,D-cut ,Round,M3 M4 or customized
Brush type :
Metal brush or carton brush
Rated torque :
0.05kg-1.5kg
Motor Size :
φ12mm *L15mm
Gear Material :
Copper,steel or customized
Direction of rotation :
CCW&CW
Gearbox material :
Copper,steel or customized
GearBox size :
φ12mm*H10mm
Certificates :
16949,CE Rohs,ISO
Shaft diameter :
φ3mm
Description
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
Product Overview

High efficiency DC spur geared motor offering reliable performance with customizable specifications for various industrial applications.

  • High Efficiency: 70% operational efficiency
  • Voltage Range: DC 1.5V-12V
  • Speed Range: 10rpm-3000rpm or customized
  • Torque Range: 0.05kgf.cm-2.0kgf.cm
  • Low Noise Operation: ≤55DB with high torque output
  • Customizable Options: Various diameters, materials, and shaft types available
  • Quality Assurance: 100% quality inspection before shipping
  • Free sample testing available
Technical Specifications
Parameter Specification
Speed (RPM) 10rpm-3000rpm or customized
Efficiency 56%-90%
Rated Torque 0.05kgf.cm-2.0kgf.cm
Shaft Diameter φ3mm
Gearbox Size φ12mm * H10mm
Temperature Range -40℃ - +60℃
Lifetime 500H-1000H
Weight 10g
Noise Level ≤55DB

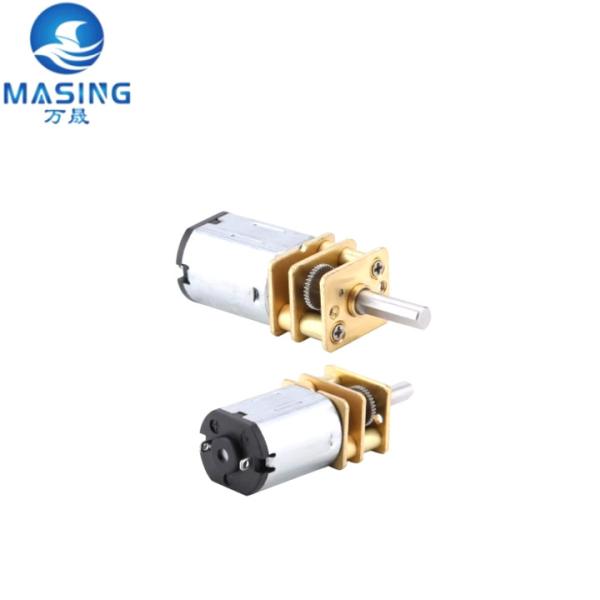

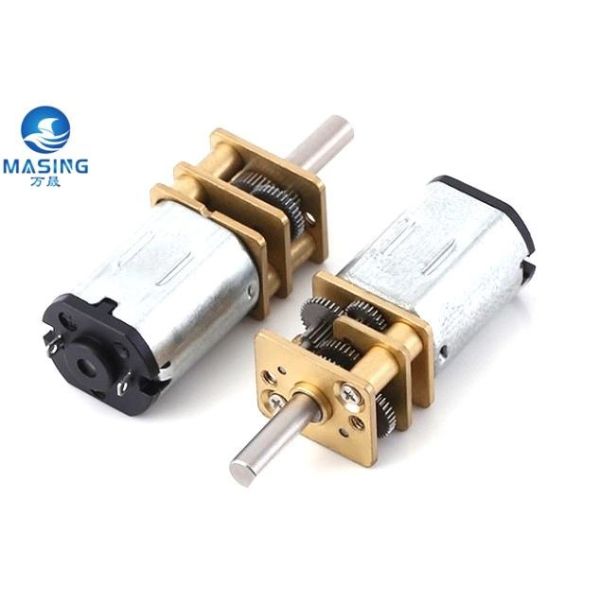

Product Images
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20 3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20 3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20 3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
Applications

Beauty products, educational robots, robot sweepers, radar systems, electronic door locks, smart home devices, appliance smart robots, electric toys, 3D printing, smart cabinet locks, driverless systems, artificial intelligence, intelligent transportation, healthcare, smart city infrastructure, automotive supplies, security monitoring, and 5G communication.

3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
Packaging & Delivery

Packaging: Strong carton 1000pcs/box, or customized packaging available

Shipping Ports: Shenzhen, Guangzhou, Shanghai

Package Size: 37×27×24cm

Gross Weight: 10.0kg

Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Supply Capacity

Supply Ability: 100,000 pieces per month

Minimum Order Quantity: 1000 pieces

Samples

Maximum Sample Quantity: 1 piece

Sample Price: $5/piece or negotiable

Certifications & Factory
3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20 3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20 3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20
Frequently Asked Questions
Q1: How to order?
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.
Q2: How about Sample order?
A2: Sample is available for you. Please contact us for details.
Q3: Which shipping way is available?
A3: DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. Other shipping methods also available upon request.
Q4: How long is the delivery?
A4: Delivery time depends on quantity ordered. Usually takes 15-25 working days.
Q5: Do you accept customization?
A5: Yes, we have a strong design team to handle custom requirements and provide technical support.
Q6: What kind of data do I need to provide for ordering?
A6: Please provide rated voltage, no load speed, load speed, load torque, and overall dimension requirements.
Q7: What if I don't know the above data?
A7: Please contact our sales team for assistance - we'll answer your questions patiently.
Q8: How to confirm the payment?
A8: We accept payment by T/T, PayPal. Other payment methods available upon request. Typically 30-50% deposit required, with balance paid before shipping.
