12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
12V/24V DC Gear Motor with Reduction Gearbox 37mm Gearbox Diameter Rated Voltage 6V-24V 10RPM/30RPM
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM37B5555
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
12volt dc gear motor
Gearbox diameter :
φ37mm
Rated Voltage :
6v-24v
Rated Power :
1W-100W
Rated Speed :
3rpm-3000rpm
Torque :
0.1NM-5NM
Bearing type :
Ball bearing / Oil bearing
Gear Ratio :
1:5-1:1000
Gear Type :
Spur gear
Direction of motor :
CW&CCW
Description

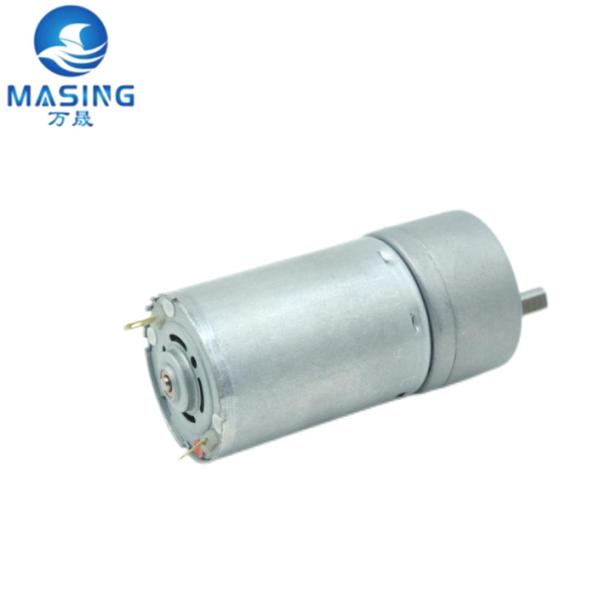

12V/24V DC Gear Motor with Reduction Gearbox
Product Overview

37mm diameter gear motor compatible with RS-550/RS-555 motors, featuring reduction gearbox and operating at 6V-30V DC with speeds of 10RPM/30RPM.

Key Features
  • Rated Speed: 2RPM - 3000RPM (Customizable)
  • Rated Voltage: DC 6V - 30V
  • Gearbox Shaft: φ6mm with multiple shaft type options
  • Shaft Materials: Carbon Steel or Stainless Steel
  • Direction: Clockwise & Counter-clockwise operation
  • Brush Type: Carbon brush
  • Customizable diameter and color options available
Technical Specifications
Parameter Specification
Rated Speed 3RPM - 3000RPM
Continuous Current 20-500mA
Efficiency IE1
Warranty 3 Months - 1 Year
Model Number MS-GM37B555
Type 12V Permanent Magnet DC Gear Motor
Torque 0.01NM - 3NM
Construction Permanent Magnet
Gearbox Material Rohs Metal Gearbox
Gearbox Diameter 37mm
Gearbox Ratio 1:5 to 1:1000
Certification CE, ROHS, ISO, 16949
Applications

Robotics, Automotive, Electric Bicycles, Home Appliances, Cosmetic Instruments, Smart Home Systems, Electric Locks, Vending Machines, Medical Devices, and more.

Packaging & Delivery

Packaging: Strong Carton (80pcs/box) or custom packaging available

Port: Shenzhen/Guangzhou/Shanghai

Package Size: 37×27×24cm

Gross Weight: Approximately 300g

Supply Capacity

100,000 pieces per month

Lead Time
Quantity (pieces) Lead Time (days)
1 - 100 10
101 - 1000 15
> 1000 To be negotiated
Samples

Maximum Order Quantity: 1 piece

Sample Price: $10/piece

Frequently Asked Questions
How to select a suitable motor?
Provide motor pictures, drawings, or detailed specifications including voltage, speed, torque, size, working mode, lifetime, and noise requirements for customized recommendations.
Do you offer customized services?
Yes, we customize voltage, speed, torque, shaft size/shape, and can add wires, connectors, capacitors, or EMC components as needed.
Do you provide individual design services?
Yes, we offer custom motor design services, which may require mold and design charges.
Can I request samples for testing?
Yes, we provide samples for testing. After confirming specifications, we'll provide a proforma invoice for sample payment.
How do you ensure motor quality?
We implement comprehensive inspection procedures including incoming material checks, production process monitoring, and final inspection before shipping.
What is your lead time?
Standard products: 25-30 days. Customized products may vary. Lead times are flexible and depend on specific order requirements.
Note: All specifications including voltage, rated torque, speed, current, power, and shaft size can be customized according to your requirements.
