12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM40B500
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
12v Dc Gear Motor Low Rpm
Shaft diameter :
φ6mm or Customized
Rated Torque :
0.1kgf.cm-10kgf.cm
Protect Feature :
Totally Enclosed
Direction of Rotation :
CW/CCW available
Gearbox Material :
40mm Gearbox Motor
Voltage :
DC1.2V-24V
Construction :
Permanent Magnet
Gearbox length :
10.4mm
Gears :
Metal/Plastic/Copper/Powder metallurgy
Description

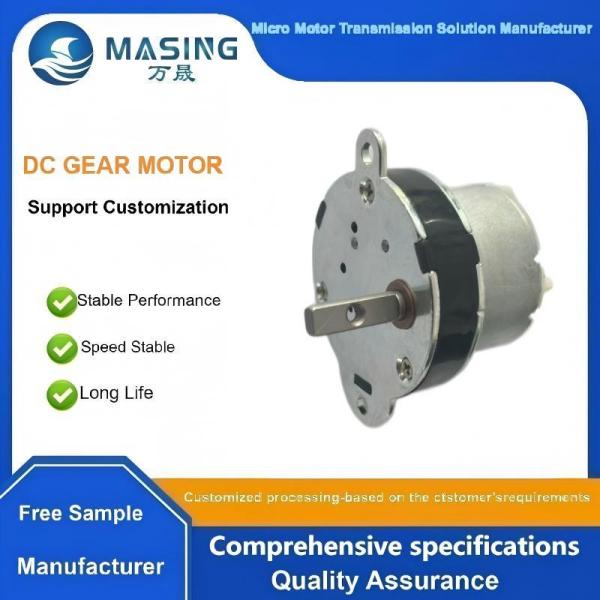

12V DC Gear Motor Low RPM High Torque DC Motor With Gear Box

This 12V DC gear motor offers low RPM and high torque performance, specifically designed for robotics and tea vending machine applications. The motor features customizable specifications to meet various industrial requirements.

Key Specifications
  • Rated Voltage: DC 1.2V-24V
  • Rated Speed: 2RPM to 500RPM (Customizable)
  • High Efficiency: 85%-55%
  • Direction of Rotation: CW/CCW available
  • Gearbox Shaft Diameter: φ6mm or Customized
  • Gearbox Shaft Type: M5/M6/Bare/D-Cut/Double D-Cut/Pin Hole/Keyway shaft
  • Brush Type: Metal brush or Carton brush
  • Gearbox Diameter: φ40mm
  • Gearbox Material: Plastic gearbox
  • Gear Material: Metal, Plastic, Powder metallurgy, Copper
  • Rated Torque: 0.1kgf.cm-10kgf.cm
Technical Attributes
Speed (RPM)3RPM-500RPM
VoltageDC 1.2V-24V
Efficiency55%-85%
Warranty3 Months-1 Year
Place of OriginGuangdong, China
Brand NameMasing Motor
Model NumberMS-GM40B500
UseSmart home, Smart toilet seat, Home Appliance, robot, vending machine, medical device
TypeDC Electric Motor 12V
Torque0.1kgf.cm-10kgf.cm
ConstructionPermanent Magnet
CommutationBrush
Protect FeatureTotally Enclosed
Direction of RotationCW & CCW available
Gearbox MaterialPlastic
Gearbox Length10.4mm
Gearbox Diameter40mm
Gearbox Ratio1:5 to 1:390
MOQ1000 Pcs
ShaftM5/M6/D-cut or Round or Flat or with a hole (Customer's Request)
Shaft MaterialCarbon Steel or Stainless Steel
CertificationCE, ROHS, ISO, 16949
Product Images
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine 12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine 12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine 12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
Packaging & Delivery
  • Packaging Details: Strong Carton 80pcs/box, or as requested
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Single Package Size: 37×27×24cm
  • Single Gross Weight: About 80-100g
Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples
  • Maximum Order Quantity: 1 piece
  • Sample Price: $10/piece
Certifications
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
Factory Show
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
Product Classification
12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
Applications

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine
Frequently Asked Questions
Q1: What's the price?
A1: We're a professional manufacturer. The exact price is based on clients' specifications, such as the speed, voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests. The MOQ is flexible if the product is not complicated to produce and we are not in a busy season. Kindly chat with our sales team to confirm it.
Q3: What's the delivery time?
A3: We maintain a production schedule. In the slack season, we can ensure delivery within one month. In the busy season, we may need more than one month for large quantities. We can provide overtime production for urgent orders.
Q4: Can you send some samples before the order?
A4: Yes, we send samples to confirm quality first. UPS, TNT, FEDEX or DHL are all available for shipping.
Q5: Can you make our logo on the products?
A5: Certainly, logo customization is available as most of our products are customizable. Logos can be labeled on the motors.
