12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM37B520
Certification :
16949,ISO,RoHS,CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
37mm dc gearbox micro motor
Gearbox Diameter :
φ37mm Gearbox
Brush tpye :
Carbon brush or metal brush
Direction of Rotation :
CW/CCW available
Gearbox Material :
Metal Gear box
Rated voltage :
DC6V-24V
Shaft Diameter :
φ6mm
Rated Torque :
0.1kgf.cm-30kgf.cm
Rated speed :
3rpm-3000rpm
Description

DC Gear Motor 37MM Geared Motors Title:

37mm High Torque Dc Gear Motor 12v 10 Rpm 33 Rpm Gear Motor For Baby Cradle

DC Gear Motor 37MM Geared Motors Description:

  • Rated Voltage:DC6v-24v or Customized

  • Rated Speed:3rpm-3000rpm Customized

  • Power:0.1W-30W Customized

  • Factory customization: customized according to demand, high performance, stable and controllable

  • Gearbox diameter :Ø37mm

  • Gearbox material :Rohs Metal Gearbox

  • Gear Reduction ratio:Customized 1:10-1:1006

  • Match Motor Types: RF-500,RF-520,RF-528,RS-385/380.RS-365/360.RS-390 ,RS-395,RS-540,RS-545,RS-550,RS-555 permanent magnet DC brushed motors

  • Bearing at output:Oil bearing or Ball bearing ,

  • Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)

  • Shaft Diameter :Ø6mm,Ø7mm,Ø8mm or Customized

  • Shaft Material:Carbon Steel or Stainless Steel

  • Shaft type: Round ,Flat,M6,Threaded hole,Bare /D-Cut /Pin Hole /Keyway shaft (Can be Customized)

  • Rated torque :0.1kgf.cm-35kgf.cm

  • Meet EU environmental standards: low energy consumption, low noise

  • Use:Home Appliance, robot,vending machine, medcial device,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment

  • Direction of motor :CW/CCW available

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • Sample testing can be provided

DC Gear Motor 37MM Geared Motors Key attributes:

Rated Speed(RPM)
2rpm-3000rpm
Continuous Current(A)
Customized
Efficiency
90%-58%
Warranty
3Months -1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-GM37B520
Use
Home Appliance, robot,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays
Gearbox Material
φ37mm gearbox
Gear Ratio
1:10-1:1006
Construction
Permanent Magnet
Direction of Rotation
cw & ccw available
Protect Feature
Totally Enclosed
Product Name
12volt gear motor
Gear box
37mm Metal Gearbox
Certificates
16949,ISO,CE,Rohs
Gearbox Size
φ37mm gearbox
Rated Voltage
DC 6v-24v
Gear Type
Straight tooth
MOQ
1000Pcs
Shaft Material
Carbon Steel or Stainless Steel
Shaft Type
Round ,Flat,M6,Threaded hole,Bare /D-Cut /Pin Hole /Keyway shaft
Life time
100hours-5000hours

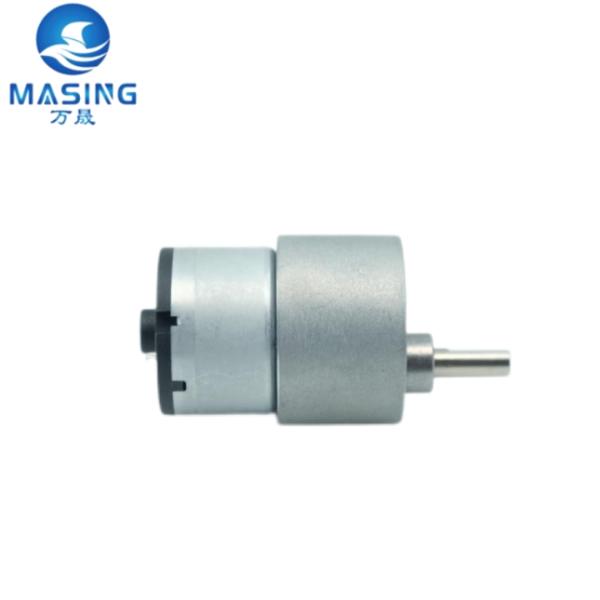

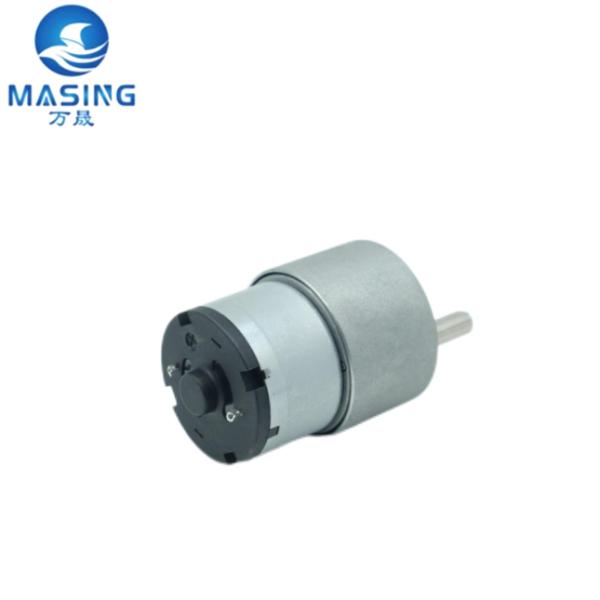

DC Gear Motor 37MM Geared Motors Product Photo:

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

DC Gear Motor 37MM Geared Motors Product Spec:

37mm Gearbox DC Spur Metal Geared Motor Typical Applications:

Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

Gear ratio iand length L of motor
Number of stages 2 3 4 5 6
Gear ratio i 6 16.7 45 110 330
10 23.3 50 121 350
30 60 135 405
70 150 420
90 180 450
100 210 490
250 540
270 630
300 810
Leng th of
gearbox L(mm)		 19 21.5 24 26.5 29

SPECIFICATIONS:


MODEL		 Voltage

V

NO LOAD

RATED LOAD

STALL


SPEED

rpm

CURRENT

A

SPEED

rpm

CURRENT

A

TORQUE

Nm

OUTPUT

W

TORQUE

Nm

CURRENT

A
37GB-528B-10 6 580 0.25 470 0.6 0.029 1.45 0.147 2.2
37GB-528B-30 6 193 0.25 156 0.6 0.88 1.44 0.44 2.2
37GB-528B-50 6 116 0.25 94 0.6 0.13 1.35 0.65 2.2
37GB-528B-70 12 117 0.2 94 0.75 0.38 3.76 1.85 3.2
37GB-528B-90 12 90 0.2 73 0.758 0.49 3.74 2.45 3.2
37GB-528B-150 12 40 0.15 32 0.55 0.49 1.64 2.6 2.5
37GB-528B-180 12 33 0.15 26.5 0.55 0.63 1.76 3.13 2.5
37GB-528B-210 12 28.5 0.15 22.5 0.55 0.73 1.73 3.7 2.5
37GB-528B-270 6 21 0.25 17 0.6 0.63 1.13 3.3 2.2
37GB-528B-490 6 11.5 0.25 9.5 0.6 1.07 1.07 5.8 2.2
37GB-528B-630 6 9 0.25 7 0.6 1.37 1.0 6 2.2

Packaging and delivery:

Packaging Details
Strong Carton 80pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
12X10X24mm
Single gross weight:
0.230kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$5/piece

Certifications:

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

Factory Show:

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

Product Classification:

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment

Electric curtains,Safe / Locker,Bean Mill.Coffee Machine,Smart Door Locks,Floor sweeper.

Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home
Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics

Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

12V 24V Slow Speed 5RPM 10RPM DC Gear Motor 37MM Geared Motors With Reduction Gearbox

FAQ

Q1:How to select a suitable motor?

A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3:Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?
A4:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5:How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
