Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM25A370
Certification :
ISO 9001/IATF16949/ROHS/CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
25mm dc geared motor
Gearbox Dimension :
φ25mm Gearbox
Construction :
Permanent Magnet
Rated Speed :
3rpm-1500rpm
Direction of Rotation :
CW/CCW
Rated Voltage :
DC3V-24V
Gears Material :
Metal ,steel ,copper ,Plastic gears
Shaft diameter :
φ4mm
Shaft type :
D-cut, Round,Flat ect
Description
GM25-370 Micro Metal Gearmotor
25mm diameter gearbox with RF-370 brushed DC motor delivering low RPM with high torque performance.
Product Specifications
  • Model: GM25-370 micro metal gearmotor
  • Gearbox: 25mm metal spur gear reducer
  • Voltage range: DC 3V-24V
  • Speed: 2RPM-1500RPM (Customized)
  • Power: 0.1W-10W (Customized)
  • Gearbox diameter: Ø25mm metal gearbox
  • Size: Φ25mm × L TBD
  • Reduction ratio: 1:10-1:1000 (Customized)
  • Commutation: Carbon brush/Graphite brush/Metal brush
  • Compatible motors: RF-300, RF-310, RF-370, RS-385, RS-365, RS-390
  • Output bearing: Ball bearing/Sleeve bearing/Oil bearing
  • Encoder: Magnetic encoder
  • Shaft size: Φ4mm D-cut 0.5mm (Customized)
  • Shaft type: Bare/D-Cut/Double D-Cut/Pin Hole/Keyway shaft (Customized)
  • Shaft material: Carbon Steel or Stainless Steel
  • Lifetime: 500-1500 hours
Key Attributes
Speed (RPM) 2RPM-1500RPM
Rated Voltage DC 3V-24V
Efficiency 90%-58%
Place of Origin Guangdong, China
Brand Name Masing Motor
Model Number MSGM25A370
Gear Ratio 1:15-1:1000
Construction Permanent Magnet
Direction of Rotation CW or CCW available
Protect Feature Totally Enclosed
Certificates ISO 9001/IATF16949/ROHS/CE
MOQ 1000 Pcs

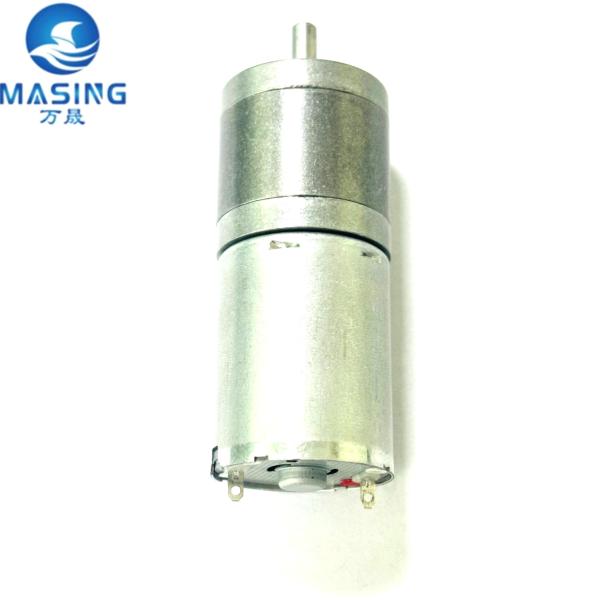

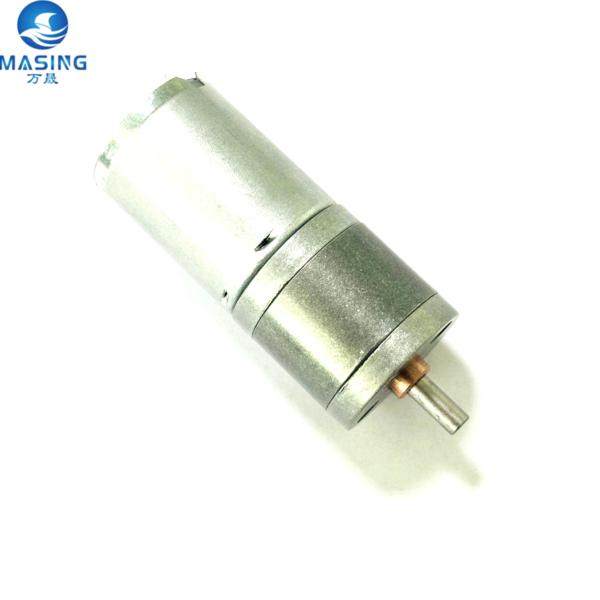

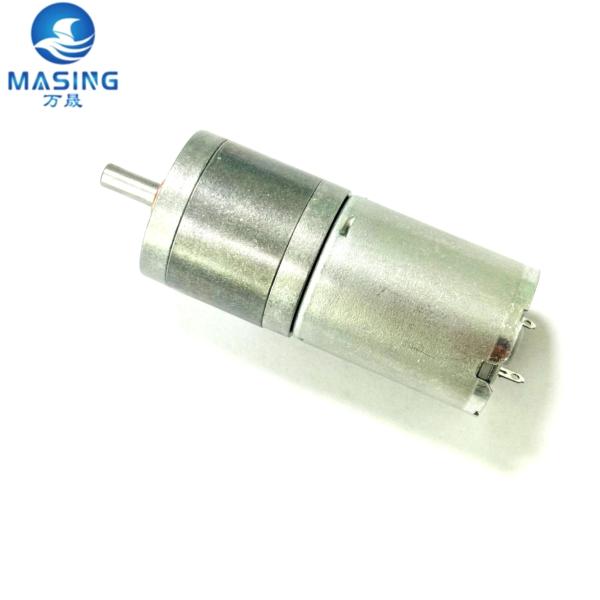

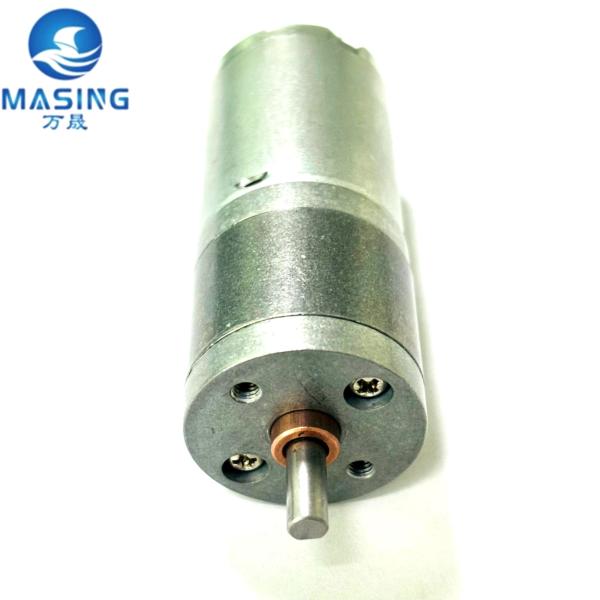

Product Photos
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Technical Specifications
DC Spur Plastic Gearbox Motor Typical Applications:
Voltage, rated torque, speed, current, power and shaft size can be customized as required.
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Packaging & Delivery
  • Packaging: Strong Carton 1000pcs/box, or as requested
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Package size: 12×10×24mm
  • Gross weight: 0.08kg
Supply Capacity
100,000 Piece/Pieces per Month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated
Samples
  • Maximum order quantity: 1 piece
  • Sample price: $5/piece
Certifications
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Applications
Textile machine, Smart garbage clamshell, Smart lock, electric valve, smart car, storage box, advertising equipment, electronic game console, shared charging pile, shredding machine, Home Appliance, robot, vending machine, medical device
Application Category Examples
Medical Equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain
Smart Home Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot
Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor
Frequently Asked Questions
Q1. Are you trading company or manufacturer?
A1: We are manufacturer. We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q2: How do you make sure motor quality?
A2: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
A3: Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
A4: Yes, we have CE, Rohs, ISO, 16949, etc. If you have the other certificates requirement, we can apply it for you.
Q6: Do you have a customized service for your standard motors?
A6: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
