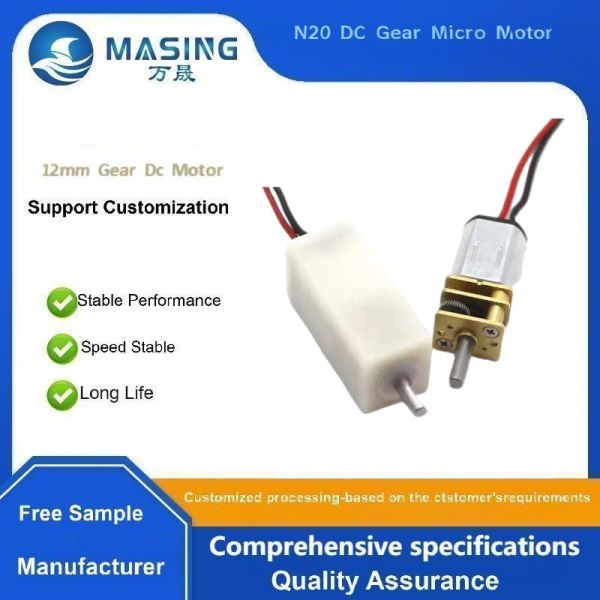

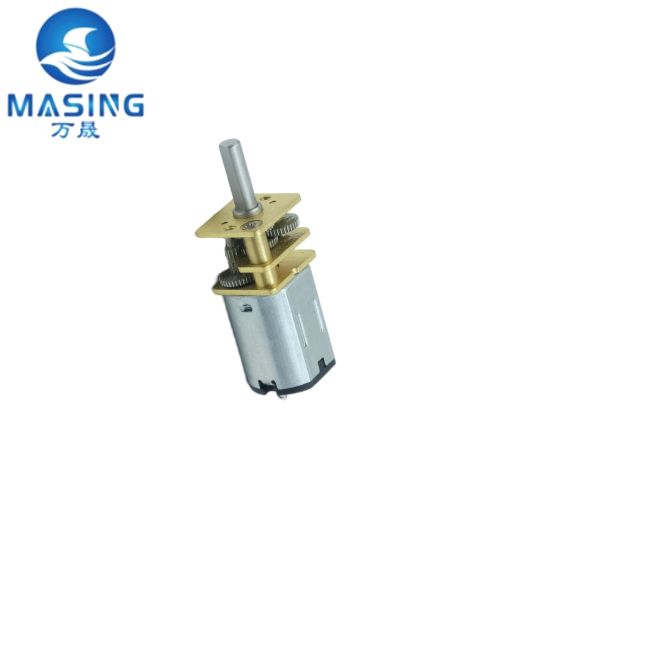

Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12N20
Certification :
ROHS CE ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Micro Waterproof motor 12MM gear motor
Gearbox Size :
12*10mm
OEM & ODM :
Accepted
Rated Voltage :
1.2v-24v DC
Rated Power :
0.1-3W or Can be Customized
Certificates :
CE Rohs ISO EU,16949
Bearing type :
oil bearing/ball bearing
Rated Speed :
3rpm-3000rpm
Material :
Copper ,Steel,plastic
Motor type :
FF-N10,FF-N20,FF-N30
Description
Micro Waterproof Motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20
Product Overview

Compact N20 series micro waterproof DC gear motor designed for intelligent robots and automation applications. Features metal brush construction and customizable specifications.

Technical Specifications
  • Rated Voltage: DC 1.2V - 24V
  • Rated Speed: 5 RPM - 3000 RPM
  • Rated Power: 0.1W - 5W
  • Gearbox Size: 12 × 10mm
  • Rated Torque: 0.05 kgf.cm - 2 kgf.cm
  • Continuous Current: 10mA - 500mA
  • Noise Level: ≤55 DB
  • Weight: 10g
  • Lifetime: 100 - 1000 hours
Motor Configuration
  • Gear Ratio: 1:10 to 1:1000 (customizable)
  • Shaft Diameter: φ3mm, φ4mm or custom
  • Shaft Types: Round, D-cut, Screw, Trapezoidal, Pin Hole, Keyway
  • Bearing Type: Ball bearing / Oil bearing
  • Rotation Direction: CW or CCW
  • Construction: Brush type
Product Images
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Technical Diagram
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Applications

Robotics, intelligent locks, automotive systems, home appliances, medical devices, security monitoring, smart home systems, and industrial automation.

Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Packaging & Delivery
  • Packaging: Strong carton (1000pcs/box) or custom packaging
  • Single Package Size: 12×10×24mm
  • Single Gross Weight: 0.01kg
  • Port: Shenzhen, Guangzhou, Shanghai
  • Supply Ability: 100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Sample price: $5/piece (maximum order quantity: 1 piece)

Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Factory & Product Classification
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Frequently Asked Questions
Q1: What's the price?
A1: Pricing is based on client specifications including speed, voltage, and custom requirements.
Q2: Can you send samples before order?
A2: Yes, samples are available via UPS, TNT, FEDEX or DHL for quality confirmation.
Q3: How to select a suitable motor?
A3: Provide specifications like voltage, speed, torque, size, working mode, lifetime, and noise requirements for recommendations.
Q4: Can you add our logo?
A4: Yes, logo customization through printing, embroidery, embossing, or jacquard is available.
Q5: Do you offer customization services?
A5: Yes, we customize voltage, speed, torque, shaft specifications, and can add wires, connectors, capacitors, or EMC components.
