Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12ZN20
Certification :
ROHS ,CE, ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
small worm gear motor
Gearbox Shaft :
φ3mm ,φ4mm or Customized
OEM & ODM :
Accepted
Gearbox diameter :
φ12mm
Brush type :
Metal Brush/Carbon brush
Gearbox type :
Worm Gearbox
Rated Voltage :
DC1.2V-12V
Direction of motor :
CW&CCW
Usage :
Laser,Locks,Toys,3D Printer,Robots
Motor type :
n30 Worm Micro gear motor
Description
Right Angle Gear Motor DC Metal Gearbox 12V 200RPM with Encoder
Compact 12mm worm gear motor designed for intelligent vehicle locks, robots, and automation applications. Features metal gearbox construction with encoder capability.
Technical Specifications
  • Rated Voltage: DC 1.2V-24V
  • Rated Speed: 5RPM-3000RPM
  • Motor Size: φ12mm * L18mm
  • Rated Torque: 0.05kgf.cm-2kgf.cm
  • Gearbox Size: φ12mm * 18mm
  • Shaft Diameter: φ3mm, φ4mm or Customized
  • Rotation: Clockwise & Counter-Clockwise
  • Noise Level: ≤55DB
  • Weight: 10g
Motor Construction
Permanent magnet brush DC motor with exposed gearbox protection. Compatible with N20, N30, N10 permanent magnet DC motors.
Shaft Types Available
  • Round Type: DIA 3mm, 4mm, 5mm
  • D-cut Type: DIA3-D2.5, DIA4-D3
  • Screw Type: M3, M4, M5 Series
  • Trapezoid/I-cut Type: DIA3-I2, DIA4-I3
  • Shaft with Hole and Other Custom Types

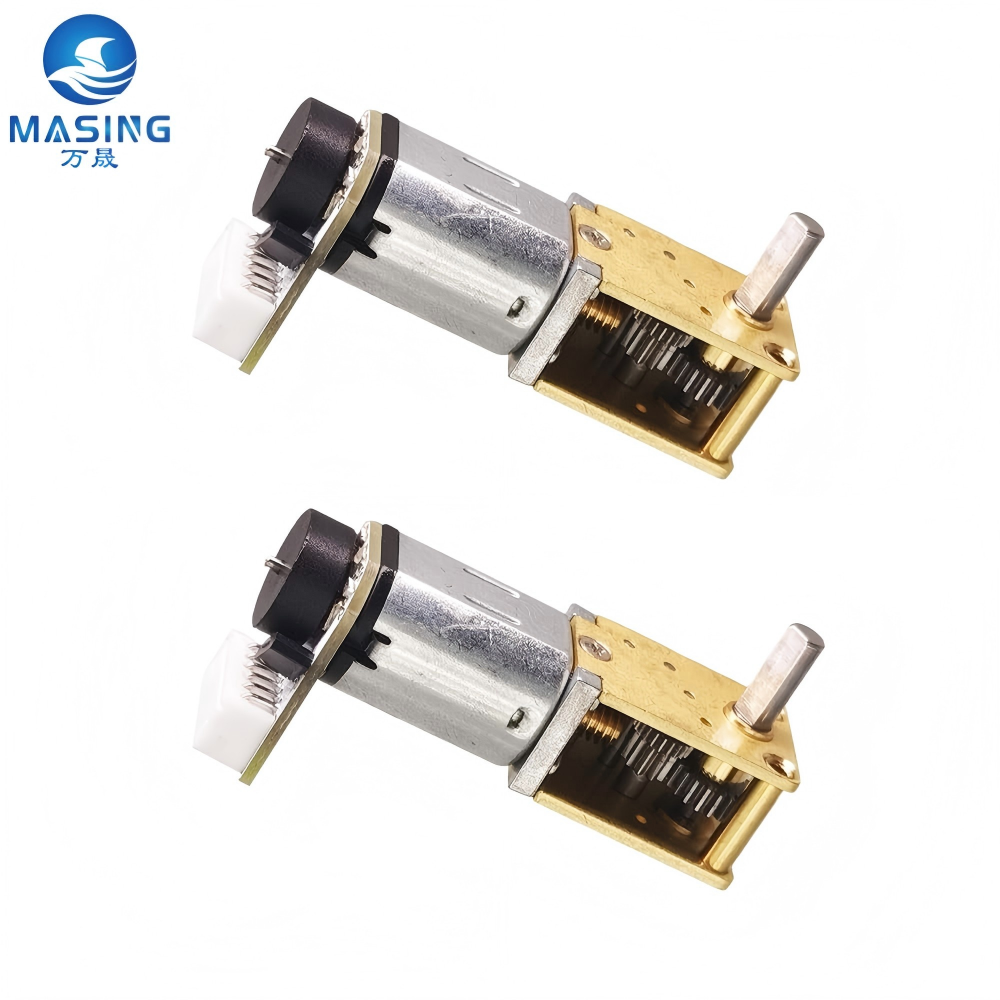

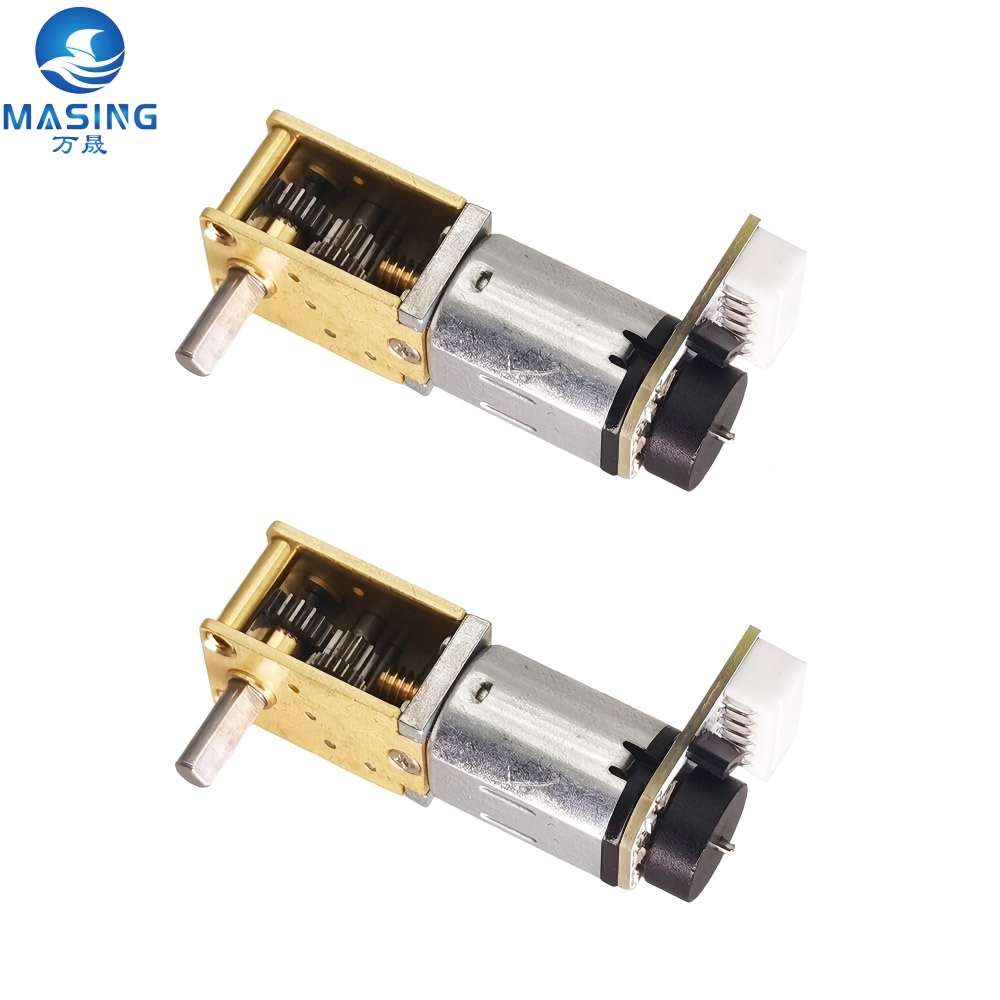

Product Images
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots

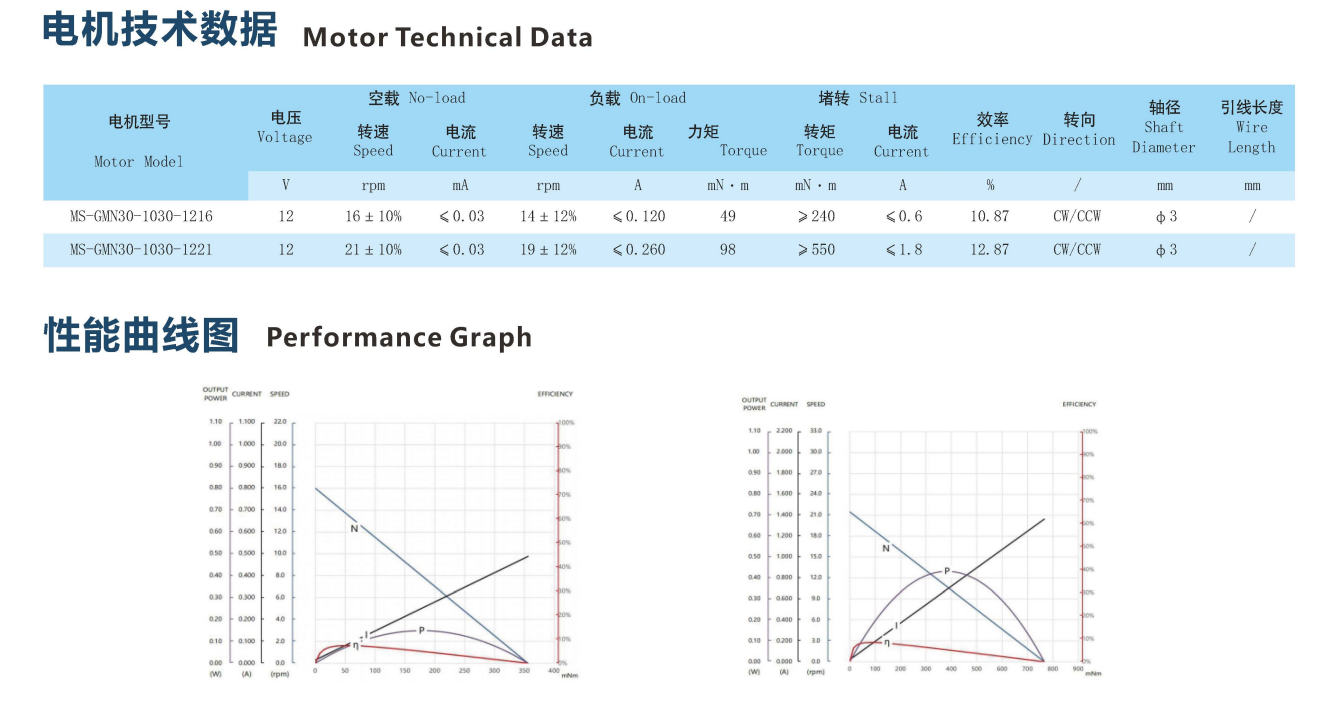

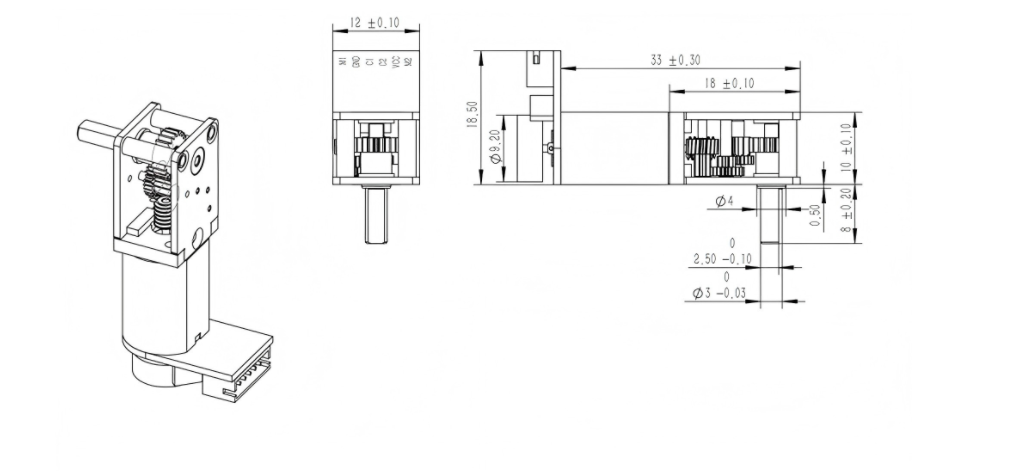

Technical Diagrams
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Typical Applications
Car systems, home appliances, cosmetic instruments, SMART HOME devices, robots, door locks, projectors, intelligent transportation, health care, smart city infrastructure, automotive supplies, security monitoring, 5G communication, and smart home automation.
Packaging & Delivery
Strong carton packaging: 1000pcs/box or customized packaging available. Shipping from Shenzhen, Guangzhou, or Shanghai ports.
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Quality Assurance
Every product undergoes thorough inspection before leaving the factory. Compliant with EU environmental standards featuring low energy consumption and low noise operation.
Certifications
CE, RoHS, EU, ISO, IATF 16949 certified
Right Angle DC Gear Motor 12V 200RPM with Encoder for Intelligent Vehicle Locks and Robots
Frequently Asked Questions
Do you manufacture products yourself?
Yes, we manufacture products ourselves. We have our own R&D team and industrial park, controlling all design and production procedures.
Do you own patents?
Yes, we own patents on all our products, ensuring no patent infringement concerns when selling our products.
Do you accept private label? What's the MOQ?
Yes, we accept private labeling. MOQ depends on the model - typically 1000pcs or 5000pcs.
What testing certificates do you have?
We hold CE, ROHS, ISO9001, ISO14000, and IATF16949 certificates, and can assist with additional testing requirements.
Are you searching for distributors and agents?
Yes, we are actively seeking distributors and agents. Contact our sales team for partnership details and support programs.
What's your lead time?
Standard lead time is 25 days after confirming packaging details.
