Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft
Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft
Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft
Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft
Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft
Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12N20
Certification :
ROHS ,CE, ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Spur Brushed Dc Geared Motor
Gearbox Shaft :
φ3mm ,φ4mm ,M3,M4,M5 or Customized
OEM & ODM :
Accepted
Gearbox diameter :
φ12mm
Brush type :
Metal Brush/Carbon brush
Gearbox type :
Spur Gearbox
Rated Voltage :
DC1.2V-12V
Direction of motor :
CW&CCW
Usage :
Laser,Locks,Toys,3D Printer,Robots
Motor type :
n20 Micro dc motor
Description

12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor Title:

N20 Micro DC Gear Motor 6Volt 100 RPM For Smart Home & Home Appliance Robotics Use

12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor Description:

  • Rated voltage :DC1.2V-12V

  • Rated speed :5rpm-3000rpm

  • Motor Size:φ12mm*L15mm

  • Rated Torque :0.05kgf.cm-2kgf.cm,

  • The torque of the motor is nronortional to the speed of the motor

  • Gearbox Size:φ12*10mm gearbox with N20, N30, N10 permanent magnet DC motors

  • Meet EU environmental standards: low energy consumption, low noise

  • Shaft diameter :φ3mm,φ4mm or Customized

  • Direction of motor:CW &CCW

  • Encoders, gears and other requirements can be configured

  • Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000

  • The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

  • Quality: With professional equipment, improve the testing process, quality control system

  • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

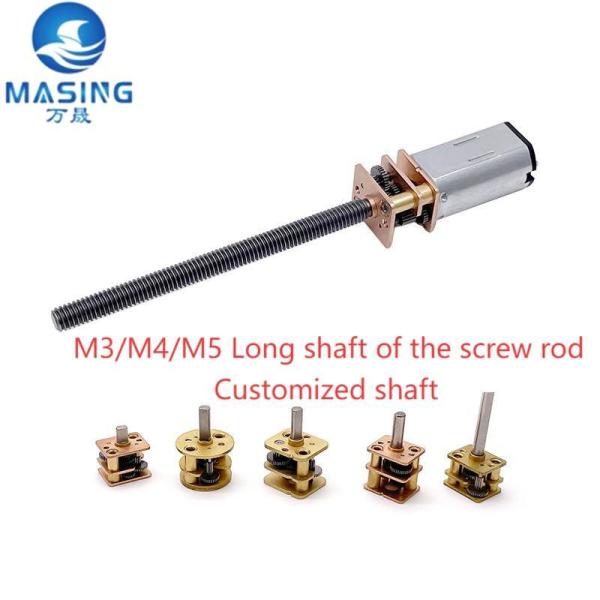

  • SHAFT TYPES:

    Out shaft standard as follows,also can customerized due to the user drawings

    welcome to contact customer service for more types

  • Round Type :DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc

  • Free sample testing can be provided

  • Every product must pass the inspection before leaving the factory

12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor Key attributes:

Rated Speed(RPM)
5rpm-3000 rpm
Continuous Current(A)
10mA-500mA
Gearbox Shaft
φ3,φ4 ,M3 or M4 ,M5 ,D-cut or Round ect
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
N20 Spur Dc Gear Motor
Use
Robots,Locks ,Locker lock,Toys,Precision instruments, electric tools, screwdrivers
Type
6volt Micro Gearbox motor
Rated Torque
0.01kgf.cm-2kgf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Exposed Gearbox
Product Name
12mm gearbox motor
Rated Voltage
DC 1.2v-12v
Certificate
CE,Rohs,EU,ISO,16949
Gearbox Size
12mm*10mm
Weight
10g
Noise
≤55DB
MOQ
1000Pcs
Gears
Metal,Steel or Copper Rohs
Color
Customer's Request
Motor type
N20 Brushed motor

12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor Product Photo:

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded ShaftMicro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor Product Spec:

N20 Gear Motor Typical Applications:

Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

GM12-N20VA 12mm gearboxplus N20permanent magnetDC motor
模数Module 0.15
额定负载Rated torque(kg.cm) 0.5kg.cm max
瞬间允许力矩
Maxmomentary tolerance torque(kg.cm)		 1.0kg.cmmax
减速比Reduction ratio 1/10 1/20,130
1/50,163
1/100		 17110,1150
1/210,1/250
1/298,1380		 1/1000
齿轮箱减速级数Number of gear stages 2 4 5 7
减速箱长度Gearbox length L(mm) 9.0 12.0
减速比Reduction ratio 10 30 50 100 150 210 250 298 380 1000
2.4V 空载转速No-load speed(rpm) 1450 470 285 145 96 69 58 50 38 14.5
负载转速Ratedspeed(rpm) 1200 400 240 120 80 57 48 40 31 12
负载力矩Rated torque(kg.cm) 0.015 0.05 0.07 0.15 0.22 0.31 0.37 0.45 0.5 0.5
5.0V 空载转速No-load speed(rpm) 1450 470 285 145 96 69 58 50 38 14.5
负载转速Ratedspeed(rpm) 1200 400 240 120 80 57 48 40 31 12
负载力矩Rated torque(kg.cm) 0.015 0.05 0.07 0.15 0.22 0.31 0.37 0.45 0.5 0.5
单 电 机 技 术 参 数 Motor Technical Data

电机型号
Motor model
额定电压
Rated voltage
无负荷No-load 额定Rated 堵转Stall
转速
Speed		 电 流
Current		 转速
Speed		 力矩
Torque		 电流
Current		 功率
Power		 力矩
Torque		 电流
Current
VDC r/min mA r/min g.cm mA W g.cm A
FF-N20VA-13110 2.4 14800 60 12000 2.5 200 0.31 13 1.20
FF-N20VA-09220 5.0 14800 30 12000 2.5 120 0.31 13 0.52

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$10/piece

Certifications:

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

Factory Show:

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

Product Classification:

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

Micro N10 N20 N30 High Torque 12mm Gearbox Electric Motor Spur Brushed Dc Geared Motor With M3 M4 M5 Customized Threaded Shaft

FAQ


Q1:How to select a suitable motor?

A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?

A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3: Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.


Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q6: What's your lead time?
A6: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
