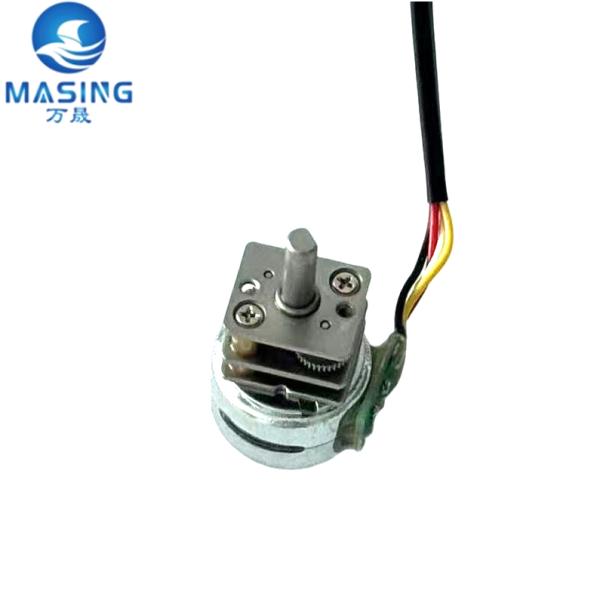

High-performance compact stepper motor designed for 3D printers, robotics, and precision applications. Features micro gear design with customizable specifications.

• Rated Voltage: DC 1.2V-12V
• Rated Speed: 5rpm-3000rpm
• Motor Size: φ15mm × L10.7mm
• Rated Torque: 0.05kgf.cm-2kgf.cm
• Gearbox Size: φ12mm × 10mm
• Shaft Diameter: φ3mm, φ4mm or Customized
• Rotation Direction: CW & CCW
• Noise Level: ≤55dB
• Weight: 10g

Available reduction ratios: 1:10, 1:20, 1:30, 1:50, 1:75, 1:100, 1:150, 1:210, 1:250, 1:298, 1:300, 1:500, 1:1000. Custom ratios available upon request.

• Round Type: DIA 3mm, 4mm, 5mm
• D-cut Type: DIA3-D2.5, DIA4-D3, etc.
• Screw Type: M3, M4, M5 Series
• Trapezoid/I-cut Type: DIA3-I2, DIA4-I3
• Other Types: Shaft with hole, etc.

• Packaging: Strong Carton (1000pcs/box) or custom packaging
• Ports: Shenzhen, Guangzhou, Shanghai
• Package Size: 37×27×24cm
• Gross Weight: 10.0kg

100,000 pieces per month

• Maximum Order Quantity: 1 piece
• Sample Price: $10/piece

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Robots, Locks, Toys, Projectors

Provide motor pictures, drawings, or detailed specifications including voltage, speed, torque, motor size, working mode, required lifetime, and noise level. We will recommend suitable motors accordingly.

Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as needed.

Yes, we provide custom motor design services, which may require mold and design charges.

Yes, after confirming motor specifications, we provide quotes and proforma invoices for samples. Payment is required before sample production.

We implement comprehensive inspection procedures: incoming material checks, process inspections, and final inspections to ensure product quality before shipping.

Standard products: 25-30 days. Customized products may require longer. Lead times are flexible and depend on specific order requirements.
