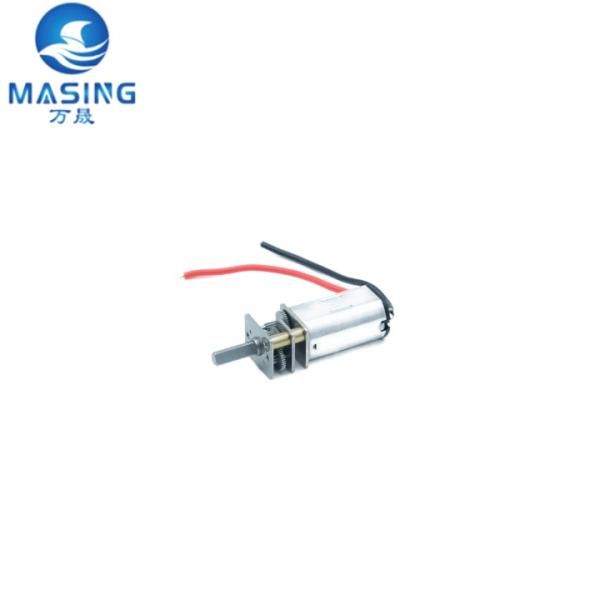

Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike

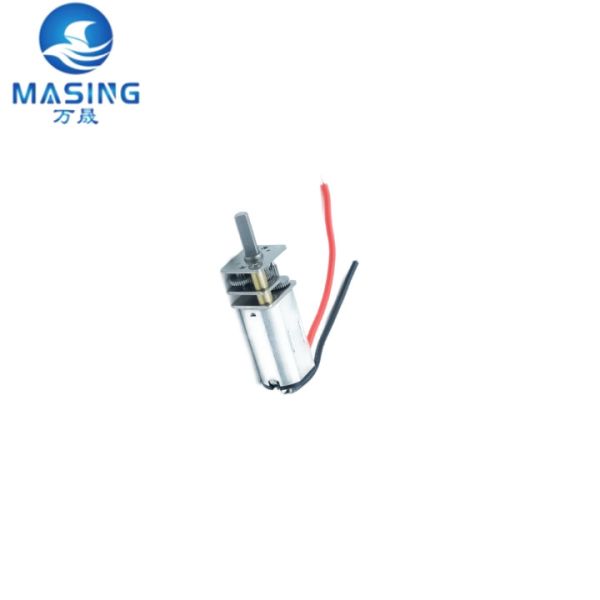

Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12N30
Certification :
ROHS CE ISO 16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
6v Micro Spur Dc Geared Motor
Shaft type :
Round ,Flat ,D-cut ,Round,M3 M4 ect
Brush type :
Metal brush or carton brush
Rated torque :
0.05kg-1.5kg
Motor Size :
φ12mm *L20mm
Direction of rotation :
CCW&CW available
Gearbox material :
Copper,steel or customized
Certificates :
16949,CE Rohs,ISO
Shaft diameter :
φ3mm, D-cut 2.5mm
Description
Customized 3V 6V Micro Spur DC Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Product Overview

12mm gearbox with FF-N10, FF-N20, FF-N30 permanent magnet DC motor designed for high torque applications in electric bikes and various industrial uses.

  • Rated Voltage: DC 1.5V - 12V
  • Gear Module: 0.15
  • Rated Speed: 10rpm - 3000rpm or customized
  • High Efficiency: 80% - 55%
  • Rated Torque: 0.1 kgf.cm - 2 kgf.cm
  • Max Momentary Tolerance Torque: 1.0 kgf.cm max
  • Reduction Ratio: 1/10 to 1/1000 available
  • Gearbox Length: 9.0mm / 12.0mm
  • Motor Size: φ12mm × L20mm, φ12mm × L15mm
Technical Specifications
Parameter Specification
Rated Speed (RPM) 5rpm - 3000rpm
Continuous Current (A) 10mA - 500mA
Efficiency 56% - 85%
Rated Torque 0.1kgf.cm - 2kgf.cm
Rotating Direction CW/CCW available
Shaft Diameter φ3mm, D-cut 2.5mm
Temperature Range -40℃ - +60℃
Life Time 500H - 1000H / 200,000 cycles
Noise ≤55DB
Weight 10g
Product Images
Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Applications

Educational robots, beauty products, robot sweepers, radar systems, electronic door locks, smart home devices, appliance smart robots, electric toys, 3D printing, smart cabinet locks, driverless systems, artificial intelligence, intelligent transportation, health care, smart city, automotive supplies, security monitoring, 5G communication.

Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Packaging & Delivery
  • Packaging: Strong Carton 1000pcs/box, or customized
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Package Size: 37×27×24cm
  • Gross Weight: 10.0kg
Supply & Lead Time

Supply Ability: 100,000 Piece/Pieces per Month

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Maximum sample order quantity: 1 piece

Sample price: $5/piece or Negotiable

Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike Customized 3v 6v Micro Spur Dc Geared Motor N10 N20 N30 High Torque Gearbox Motor For Electric Bike
Frequently Asked Questions
Q1: What's the minimum order quantity?
A1: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.
Q2: What's your shipping method for motors?
A2: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
Q3: Can you send me your price list?
A3: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.
Q4: Can I visit your company?
A4: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.
Q5: What is the advantage about your company?
A5:
  • Advanced manufacturing equipment
  • More than 15 years motor design and manufacturing experience
  • Flexible customization of OEM/ODM orders
  • Advanced automated production equipment
  • ISO9001, ISO14001, TS16949 system certification

Quality Assurance: Every product must pass 100% quality inspection before shipping. Free sample testing is available.
