N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12N20
Certification :
ROHS ,CE, ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
n20 gear motor 1000 rpm
Gearbox Shaft :
φ3mm ,φ4mm ,M3,M4,M5 or Customized
OEM & ODM :
Accepted
Gearbox diameter :
φ12mm
Brush type :
Metal Brush/Carbon brush
Gearbox type :
Spur Gearbox
Rated Voltage :
DC1.2V-12V
Direction of motor :
CW&CCW
Usage :
Laser,Locks,Toys,3D Printer,Robots
Motor type :
n20 Gear dc motor
Description
N20 Mini Micro Metal Gear Motor
DC 6V 12V 30RPM-1000RPM N20 micro metal gear motor with GA12-N20 configuration, ideal for robotic arms, robots, and precision applications.
Technical Specifications
Rated Voltage DC 1.2V - 12V
Rated Speed 5 RPM - 3000 RPM
Motor Size φ12mm * 15mm
Gearbox Size φ12mm * 10mm
Rated Torque 0.01 kgf.cm - 2 kgf.cm
Shaft Diameter φ3mm, φ4mm or customized
Reduction Ratio 1:10 to 1:1000 (customizable)
Weight 10g
Noise Level ≤55 dB
Certifications CE, RoHS, EU, ISO, 16949
Key Features
  • Professional quality control with comprehensive testing
  • Meets EU environmental standards with low energy consumption
  • Available in CW & CCW rotation directions
  • Customizable voltage, speed, torque, and shaft configurations
  • Multiple shaft types available: Round, D-cut, Screw, Trapezoidal
  • Metal, steel, or copper gears compliant with RoHS standards
  • Free sample testing available

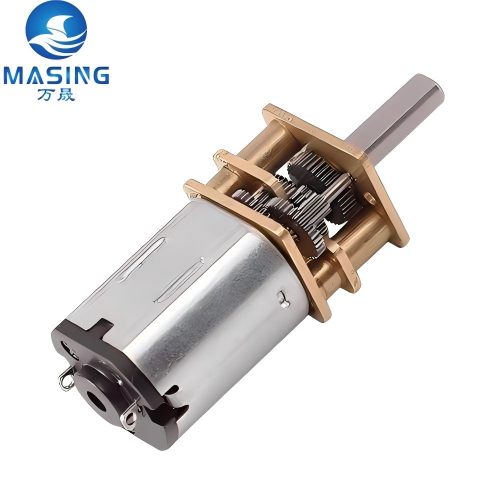

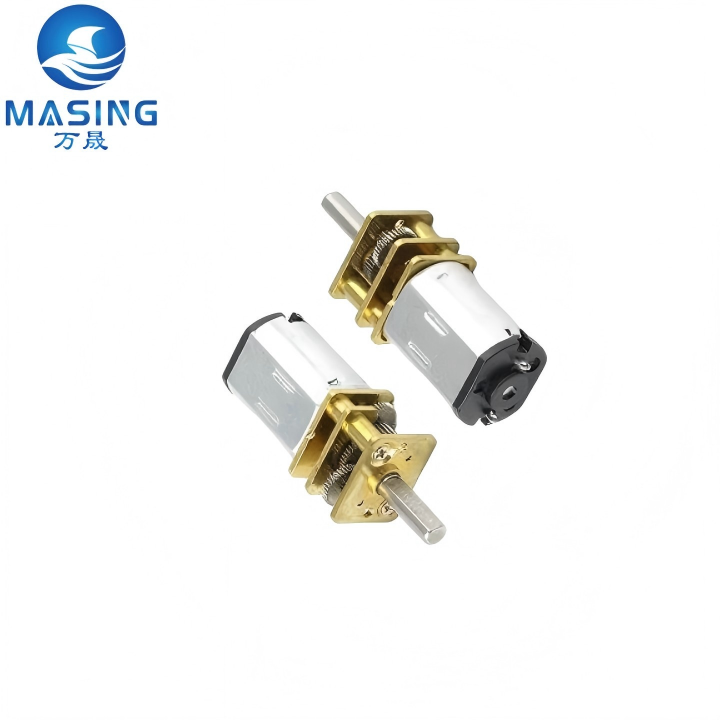

Product Images
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
Typical Applications
Robotic Arms Precision Instruments Electric Tools ATM Machines Printers & Scanners Medical Equipment Food Processors Camera Systems Smart Home Devices
Packaging & Delivery
Packaging: Strong carton (1000pcs/box) or customized packaging
Shipping Ports: Shenzhen, Guangzhou, Shanghai
Unit Weight: 10.0kg per package
Supply Capacity: 100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications
Sample Price: $10/piece (maximum order quantity: 1 piece)
Certifications: CE, RoHS, EU, ISO, 16949
N20 Gear Motor 1000 RPM with Customizable Shaft and Low Noise for Robotics and Toys
Industry Applications
Driverless Technology Artificial Intelligence Intelligent Transportation Healthcare Smart Cities Automotive Security Monitoring 5G Communication Smart Home
Frequently Asked Questions
What's the price?
As a professional manufacturer, our pricing is based on client specifications including speed, voltage, and other requirements. Contact us for a customized quote.
What's the MOQ?
We offer flexible minimum order quantities depending on product complexity and production schedule. Contact our sales team to discuss your specific requirements.
What's the delivery time?
Standard delivery is within one month during slack seasons. For large quantities during busy seasons, additional time may be required. We offer expedited production for urgent orders.
Can you send samples before ordering?
Yes, we provide samples for quality confirmation. Shipping available via UPS, TNT, FedEx, or DHL.
