37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM37BL3625
Certification :
16949,ISO,RoHS,CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
12v Brushless Dc Gear Motor
Gearbox Dimension :
φ37mm Gearbox
Motor type :
Micro Brushless Motor
Direction of Rotation :
CW/CCW available
Shaft diameter :
φ6mm,D-cut
Gear Material :
Steel ,Plastic,copper,Customized
Shaft Material :
Carbon Steel or Stainless Steel
Rated Torque :
0.1kgf.cm-30kgf.cm
Gear Type :
Spur gears
Description
37mm Diameter Gearbox Brushless Motor
DC12V/24V 65RPM low noise high torque brushless motor designed for robotics and automation applications.
Product Overview
Factory-customizable brushless DC motor with high performance, stable operation, and precise control capabilities.
  • Rated Voltage: DC12V-24V
  • Rated Speed: 2RPM-3000RPM (Customizable)
  • Power: 0.1W-30W
  • Gearbox Diameter: Ø37mm Metal Gearbox (Rohs Compliant)
  • Gear Reduction Ratio: 1:6.7-1:2700 (Customizable)
  • Motor Type: Brushless DC Motor
  • Bearing Type: Ball Bearing or Oil Bearing
  • EU Environmental Standards: Low Energy Consumption, Low Noise
  • Available Accessories: Encoder, Brake, Cool Fan, Wires, Connectors
Technical Specifications
Key Attributes
Speed (RPM) 1.5RPM - 2000RPM
Continuous Current 10mA - 500mA
Efficiency 81% - 48%
Place of Origin Guangdong, China
Brand Name Masing Motor
Model Number MS-GM37BL3640
Gearbox Diameter φ37mm Micro Gearbox Motor
Gear Ratio 1:6.7 - 1:2700
Construction Permanent Magnet
Direction of Rotation CW or CCW Available
Protect Feature Totally Enclosed
Certificates 16949, ISO, CE, Rohs
Voltage 6V - 24V
Gear Type Spur Gear
MOQ 1000 Pcs
Shaft Diameter φ6mm D-cut
Shaft Type Round, Flat, M6, Threaded Hole, Bare/D-Cut/Pin Hole/Keyway Shaft
Lifetime 1000 - 5000 hours

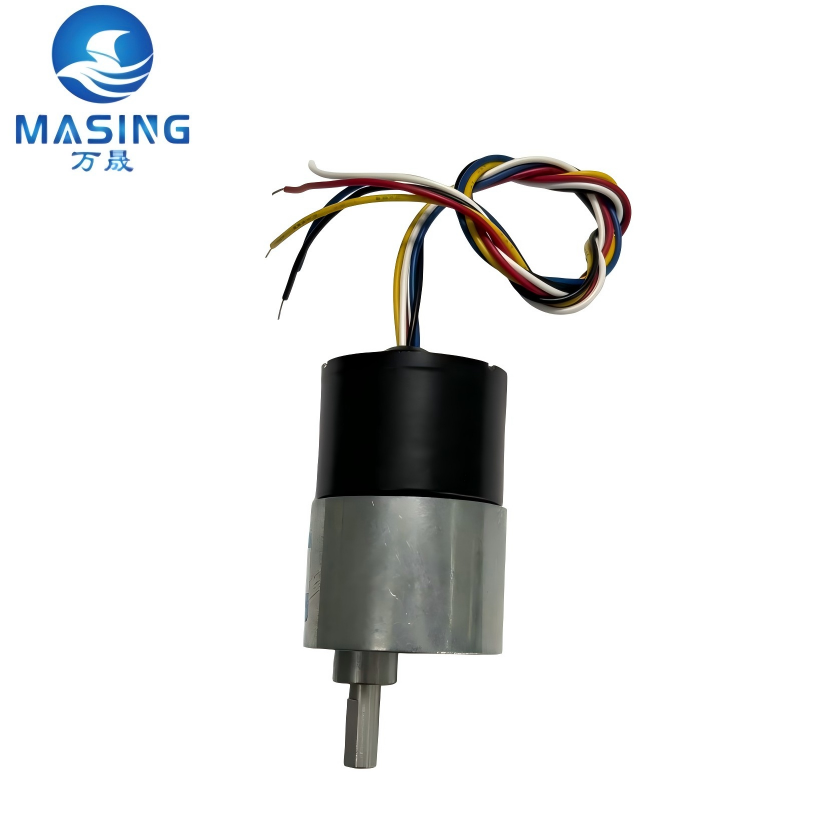

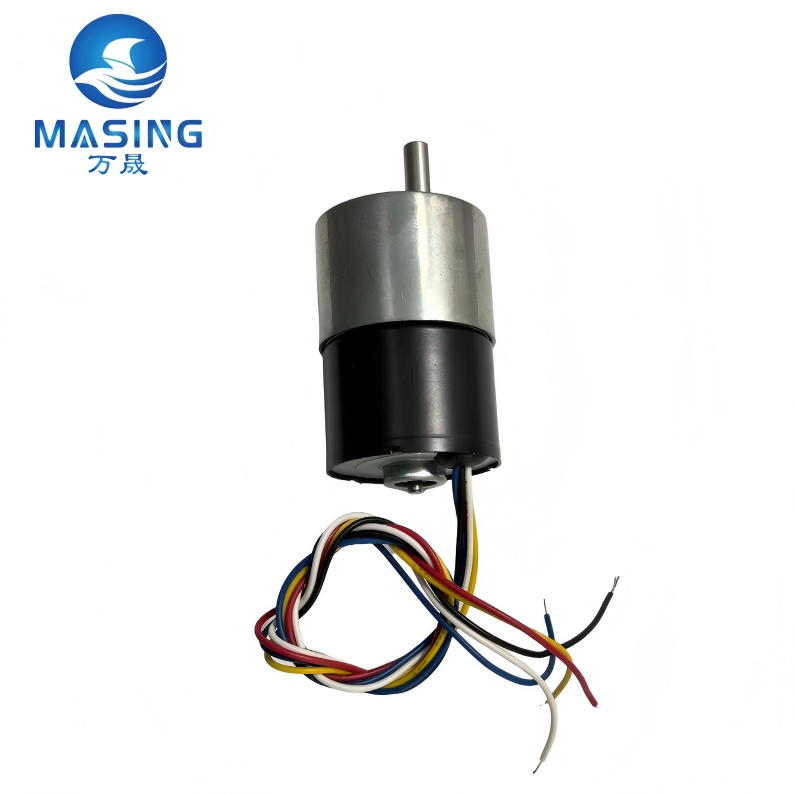

Product Images
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots 37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots 37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
Technical Data
Gearbox Performance Specifications
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
Calculation Formulas:
Output Torque = Motor Torque * Reduction Ratio * Gear Box Efficiency
Output Speed = Motor Speed ÷ Reduction Ratio
Packaging & Delivery
Packaging Details Strong Carton 80pcs/box, or customized
Port Shenzhen/Guangzhou/Shanghai
Selling Units Single Item
Package Size 12*10*24mm
Gross Weight 0.230kg
Supply Ability 100,000 Pieces per Month
Lead Time
Quantity (Pieces) Lead Time (Days)
1 - 100 10
101 - 1000 15
> 1000 To be negotiated
Samples & Certifications
Samples: Maximum order quantity: 1 piece
Sample Price: $15/piece or Negotiable
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots 37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots 37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
Applications
Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Robotics, Home appliances, Vending machines, Automation equipment, Electric curtains, Safety/Locker systems, Bean mills, Coffee machines, Smart door locks, Floor sweepers.
Application Area Specific Uses
Medical Equipment Sphygmomanometer, Massaging mattress, Air pump, Urine analyzer
Business Machines Intelligent robot, Copiers and scanners, 3D printers, Tattoo pen
Electric Powered Equipment Electric toothbrush, Electric tool, Adult products, Electric toy car, Electric curtain
Smart Home Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair dryer, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock
Food and Beverage Hand blenders, Blenders, Mixers, Coffee machines, Food processors, Juicers, Fryers, Ice makers, Soy bean milk makers
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot
37mm Diameter DC Gear Motor Brushless Motor Low Noise High Torque for Robots
Frequently Asked Questions
Q1: What's the price?
A1: As a professional manufacturer, the exact price is based on client specifications including speed, voltage, and other requirements.
Q2: What's the MOQ?
A2: MOQ is flexible depending on product complexity and production season. Please contact our sales team for confirmation.
Q3: What's the delivery time?
A3: Delivery time is approximately one month during slack season. During busy season, larger quantities may require more than one month. Overtime production is available for urgent orders.
Q4: Can you send samples before order?
A4: Yes, we provide samples for quality confirmation. Shipping available via UPS, TNT, FEDEX, or DHL.
Q5: Can you add our logo on products?
A5: Certainly. Most products are customizable and logo application is available upon request.
