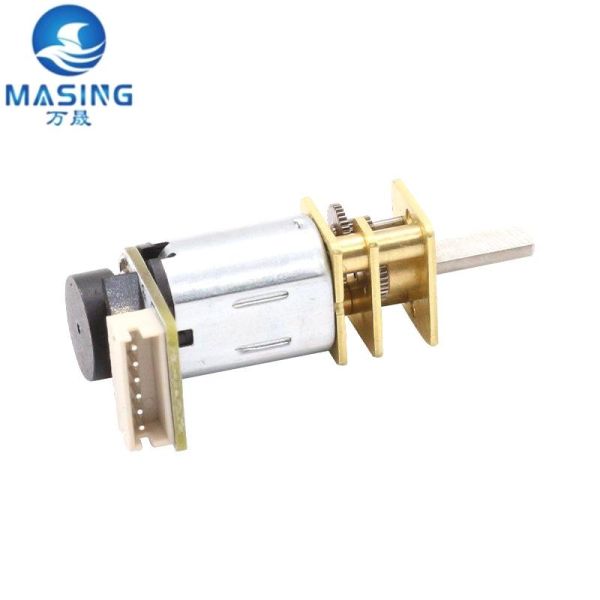

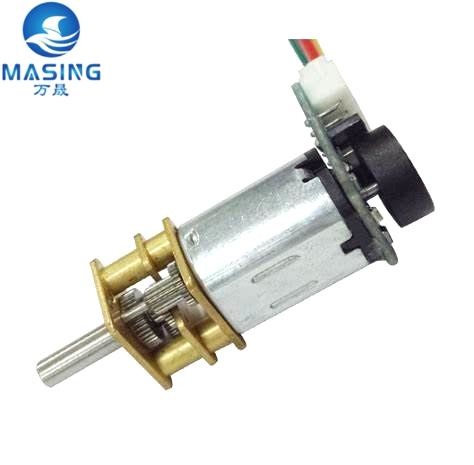

Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM12N20
Certification :
ROHS CE ISO 16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
N20 12mm dc gear motor
Gearbox Shaft :
φ3mm,D-cut Customized
Rated Torque :
5gf.cm-2kgf.cm
Motor Size :
φ12mm *15mm
Motor Model :
FF-N20,FF-N30
Gearbox diameter :
φ12mm Gearbox
Construction :
Permanent Magnet
Usage :
Robots ,Locks,Toys ,robot vacuum cleaner, laser
Direction of motor :
cw&ccw available
Motor type :
Brushed Motor
Description
DC Gear Motor with Encoder
N20 Electric Robot Brushed Motor Mini 12mm DC Gear Motor with 12PPR/24PPR Encoder
Product Overview
This high-performance DC gear motor features a compact design with encoder options, making it ideal for robotics and automation applications. The motor offers customizable specifications to meet specific project requirements.
Technical Specifications
  • Rated Voltage: DC 1.2V-24V
  • Rated Speed: 5RPM-3000RPM (speed proportional to voltage)
  • Rated Torque: 10gf.cm-2kgf.cm (torque proportional to speed)
  • Gearbox Size: φ12*9mm metal gearbox
  • Gearbox Material: Copper and stainless steel
  • Shaft Diameter: φ3mm with D-cut
  • Bearing Type: Ball bearing / Oil bearing
  • Weight: 10g
  • Noise Level: ≤55DB
Compatible Motors & Accessories
Compatible with FF-N10, FF-N20, FF-N30 brushed DC motors
Optional accessories: Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan
Key Attributes
Speed (RPM) 5RPM-3000RPM
Continuous Current 10mA-300mA
Gearbox Shaft Flat, M3, M4, D-cut or Round
Warranty 3 Months - 1 Year
Place of Origin Guangdong, China
Brand Name Masing Motor
Model Number MS1215 DC Gear Motor
Minimum Order Quantity 1000 Pieces
Product Images
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Applications
Robot vacuum cleaner, laser systems, automotive applications, home appliances, cosmetic instruments, smart home devices, robotics, door locks, projectors, driverless technology, artificial intelligence, intelligent transportation, healthcare, smart city infrastructure, security monitoring, 5G communication.
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Technical Documentation
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Packaging & Delivery
Packaging Details Strong Carton (1000pcs/box) or custom packaging
Shipping Port Shenzhen/Guangzhou/Shanghai
Package Size 37*27*24cm
Gross Weight 10.0kg
Production Capacity & Lead Time
Supply Ability: 100,000 pieces per month
Quantity (pieces) Lead Time (days)
1 - 100 10
101 - 1000 15
> 1000 To be negotiated
Samples
Maximum order quantity: 1 piece
Sample price: $10/piece
Certifications & Quality
Professional equipment with comprehensive quality control system
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Manufacturing Facilities
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Product Range
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor
Frequently Asked Questions
Q1: Can I visit your company?
A1: Yes, welcome to visit our company. Please notify us at least two weeks in advance to schedule your visit.
Q2: How can we get samples?
A2: Samples are shipped via express (DHL/UPS/FEDEX/TNT) within 1 day after receiving your address.
Q3: Can we test samples?
A3: Yes, we have R&D and Testing Center. Customized samples and freight are charged.
Q4: Do you offer discounts?
A4: As a factory, we offer competitive pricing. Large quantity orders are eligible for price negotiation.
Q5: How can I know if the product is suitable for my application?
A5: Provide your detailed requirements, and we will recommend suitable products and prepare samples accordingly.
Q6: Why should I choose your products?
A6: Our products offer high quality at competitive prices with comprehensive customization options.
