Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM37BL3640
Certification :
16949,ISO,RoHS,CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
24 Volt Dc Gear Motor
Gearbox Dimension :
φ37mm Gearbox
Motor type :
Brushless Motor
Direction of Rotation :
CW/CCW available
Shaft diameter :
φ6mm,D-cut
Gear Material :
Steel ,Plastic,copper,Customized
Shaft Material :
Carbon Steel or Stainless Steel
Rated Torque :
0.1kgf.cm-30kgf.cm
Gear Type :
Spur gears
Description

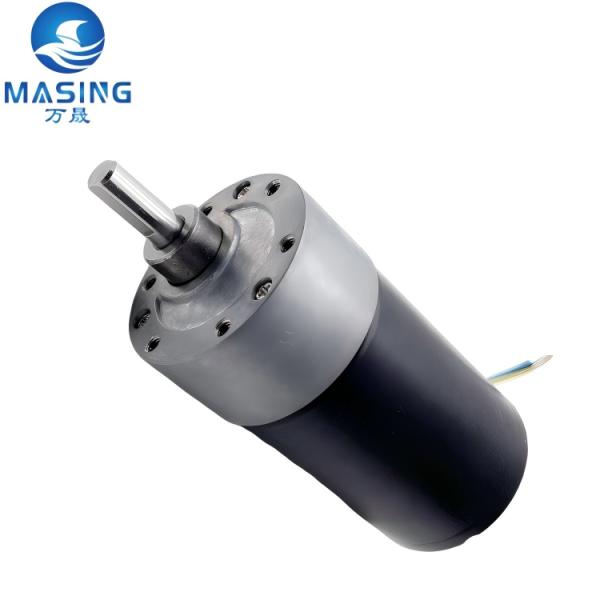

DC Brushless Gear Motor 12V - Low RPM and High Torque 37mm Gearbox Motor
Product Overview

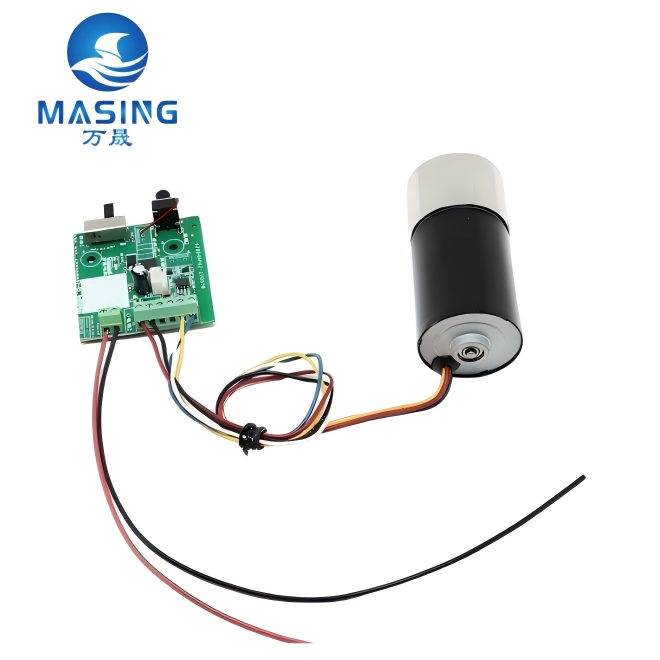

This 37mm DC brushless gear motor operates at 12V with low RPM and high torque output, specifically designed for baby milk shaker applications. Factory customization is available with high performance and stable controllability. Suitable for robots and various industrial applications.

Technical Specifications
  • Rated Voltage: DC 6V-30V
  • Rated Speed: 5RPM-3000RPM (Customizable)
  • Power: 0.1W-30W
  • Gearbox Diameter: Ø37mm Metal Gearbox (RoHS Compliant)
  • Gear Reduction Ratio: 1:6.7-1:2700 (Customizable)
  • Motor Type: Brushless DC Motor
  • Motor Sizes: φ36×L40mm, φ36×L36mm, φ36×L26mm, φ36×L50mm, φ36×L57mm
  • Bearing Type: Ball Bearing or Oil Bearing
  • Shaft Size: Ø6mm D-cut, Ø7mm D-cut, or Customized
  • Shaft Type: Threaded Hole, Bare/D-Cut/Double D-Cut/Pin Hole/Keyway Shaft, Flat, M6 (Customizable)
Key Attributes
  • Speed (RPM): 1.5RPM - 2000RPM
  • Continuous Current: 10mA-500mA
  • Efficiency: 81%-48%
  • Warranty: 3 Months - 1 Year
  • Place of Origin: Guangdong, China
  • Brand Name: Masing Motor
  • Model Number: MSGM37BL3640
  • Construction: Permanent Magnet
  • Direction of Rotation: CW or CCW Available
  • Protect Feature: Totally Enclosed
  • Certificates: 16949, ISO, CE, RoHS
  • MOQ: 1000 Pieces
  • Lifetime: 1000-5000 Hours
Product Images
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor

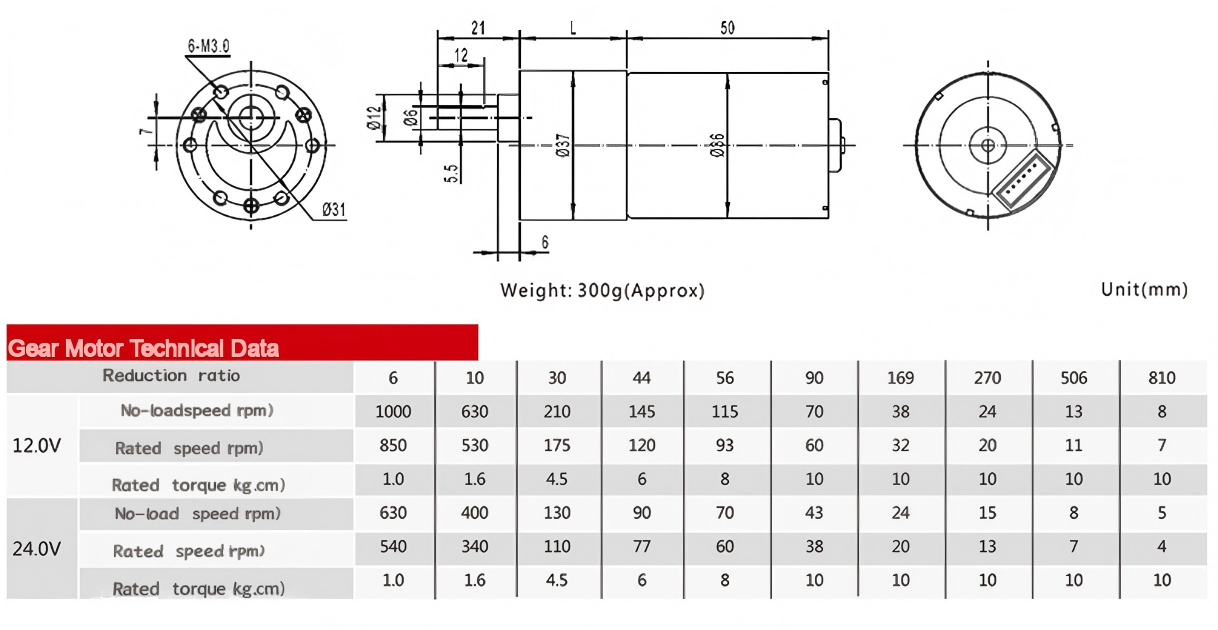

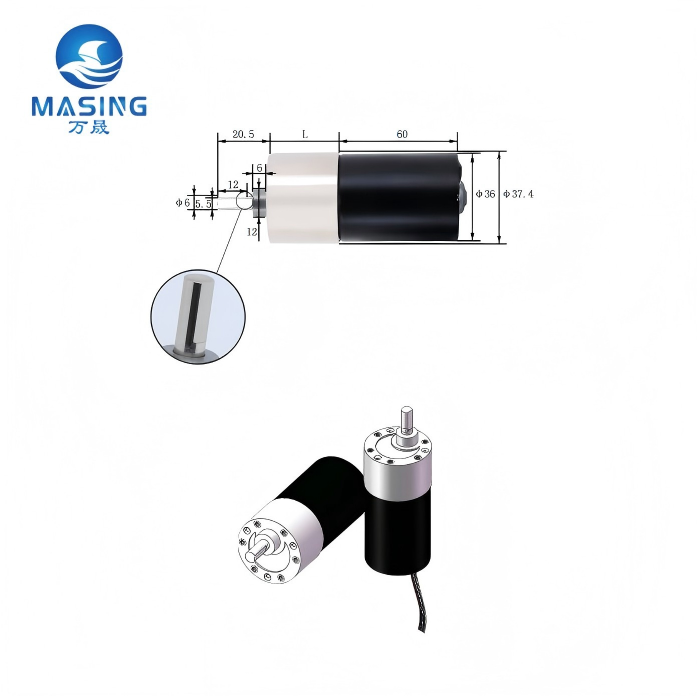

Gearbox Technical Specifications

37mm Gearbox DC Spur Metal Geared Brushless Motor - Typical applications include smart home devices, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, and home appliances. Voltage, rated torque, speed, current, power, and shaft size can be customized according to requirements.

Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Packaging & Delivery
  • Packaging: Strong Carton (80pcs/box) or Custom
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single Item
  • Package Size: 12×10×24mm
  • Gross Weight: 0.230kg
  • Supply Ability: 100,000 Pieces per Month
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications
  • Maximum Sample Quantity: 1 piece
  • Sample Price: $15/piece or Negotiable
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Applications

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment, Electric curtains, Safe/Locker, Bean Mill, Coffee Machine, Smart Door Locks, Floor sweeper.

Medical Equipment Business Machines Electric Powered Equipment Smart Home Food and Beverage Robotics
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot
Dc Brushless Gear Motor 12v Low Rpm And High Torque 37mm Gearbox Motor For Baby Milk Shaker Motor
Frequently Asked Questions
Q1. What's the price?
A1: We're a professional manufacturer. The exact price is based on clients' specifications, such as the speed, voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients. The MOQ is flexible if the product is not complicated to produce and we are not in a busy season. Kindly chat with our sales team to confirm it.
Q3: What's the delivery time?
A3: We have a production schedule - the earlier you place your order, the faster we finish production. In the slack season, we can ensure delivery within one month. In the busy season, we may need more than one month for large quantities. We can provide overtime production if your order is urgent.
Q4: Can you send some samples before the order?
A4: Yes, we must send samples to confirm quality with you first. UPS, TNT, FEDEX or DHL are all available.
Q5: Can you make our logo on the products?
A5: Certainly, logo customization is available as most of our products are customizable. Logos can be labeled on the motors.
