Specifications
Brand Name :
Masing Motor
Model Number :
MSGM1224N20
Certification :
16949 ,ROHS, CE, ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
12 volt gear reduction motor
Shaft tpye :
Flat, D-cut, Round,with a hole ,with worm ect
Brush type :
Metal Brush or carton brush Motor
Rated Torque :
0.1kgf.cm-2kgf.cm
Gearbox Size :
φ12mm *24mm
Motor type :
FF-N10,FF-N20,FF0N30
Direction of rotation :
CCW&CW
Construction :
Permanent Magnet
voltage range :
9.0V-16.0V DC
Operating Temperature Range :
-40℃-+85℃
Insulation Resistance :
B CLASS
Description

12v Dc Reduction Gear Motors Title:

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

12v Dc Reduction Gear MotorsDescription:

  • Operating voltage range:9.0V-16.0V DC Ratedd voltage:12.0V

  • Operating Temperature Range:-40℃-+85℃

  • Storage temperature Range:-40℃-+105℃

  • Insulation Resistance:B CLASS

  • Gearbox materials :Copper or steel or customized

  • Gearbox size :φ12mm*24mm

  • Shaft diameter :φ3mm

  • Shaft type:D-cut ,Flat ,round ,M3,M4 or customized

  • Gear Ratio:1:165 or customized

  • Life test:Life expectancy is more than 100000 cycles

  • Noise :50DB Max ,Rated voltage & no load operation. Measured with following condition.Background noise: 32db max.

  • High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%

  • Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.

  • Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.

  • We can provide samples for testing

  • Every product before shipped is 100% inspected for quality

12v Dc Reduction Gear Motors Key attributes:

No-load Speed(RPM)
5RPM-500RPM
No-load Current
0.01-0.1A
Efficiency
90%-55%
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-GM24N20
Use
New energy charging pile motor,Car, Robots ,Locks ,Electric Bicycle Lock, Home Appliance, Cosmetic Instrument, SMART HOME
Brush Type
Metal brush/Carton brush

Temperature Range

-40℃-+85℃
Gear type
Spur gears
Shaft diameter
φ3mm
Protect Feature
Exposed Gearbox
Product Name
60rpm dc geared motor
Direction of motor
CW & CCW
Keywords
300rpm micro 12v gear motor
Gearbox Diameter
φ12mm,φ13mm,φ14mm,ect
Weight
12g
Noise
50dB max
MOQ
1000Pcs
Shaft type
D-cut ,Flat ,round ,M3,M4 or customized
Insulation Resistance
B CLASS
Gear Ratio
Customizable

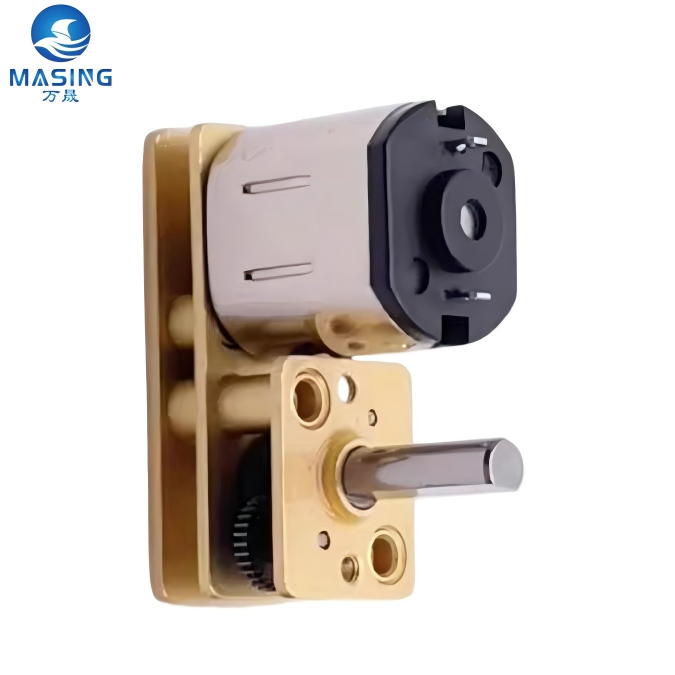

12v Dc Reduction Gear Motors Product Photo:High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System MotorHigh Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

12v Dc Reduction Gear Motors Product Spec:

N20 DC Gear Motor Typical Applications:

Home Appliance, robot,door lock,camera,medcial device,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

GM1224-N20-3.0V

Reduction
10
30
50
100
150
210
250
298
330
Length(mm)
9
9
9
9
9
9
9
9
9
No-load speed(rpm)
960
320
192
96
64
46
38
32
29
Rated speed(rpm)
730
243
146
73
49
35
29
24
22
Rated torque(kg.cm)
0.02
0.04
0.06
0.12
0.15
0.21
0.25
0.30
0.33
Stalling Torque (kg.cm)
0.07
0.18
0.25
0.50
0.63
0.88
1.04
1.24
1.38
GM1224-N20-12.0V
Reduction
50
100
150
210
250
298
330
380
1000
Length(mm)
9
9
9
9
9
9
9
9
12
No-load speed(rpm)
460
230
153
110
92
77
70
61
23
Rated speed(rpm)
410
205
137
98
82
69
62
54
21
Rated torque(kg.cm)
0.06
0.12
0.15
0.21
0.25
0.30
0.33
0.38
0.60
Stalling Torque (kg.cm)
0.55
1.10
1.38
1.93
2.30
2.74
3.04
3.50

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$10/piece

Certifications:

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

Factory Show:

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

Product Classification:

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Locks,Car, Electric Bicycle, Home Appliance, Cosmetic instrument

High Torque Low Noise 24mm DC Motors N20 N30 12v Dc Reduction Gear Motors IATF16949 For New Energy Charging Locks System Motor

FAQ
Q1: How to order?
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.

Q2: How does a gearbox work?
A2: Inside a gearbox, there is one of several different types of gears that can be found - these include bevel gears, worm gears, helical gears, spur gears, and planetary gears. These gears are mounted on to shafts and rotate on rolling element bearings.

Q3: What type of gearboxes are there?
A3: The most common types of gearboxes are spur and planetary.

Spur gearboxes have straight teeth and are mounted on parallel shafts. Spur gearboxes offer a high power transmission efficiency, a constant velocity ratio and have no slip.

Planetary gearboxes have the input shaft and output shaft aligned. They are particularly suited to high torque and low-speed applications.


Q4: How is the gear ratio defined?
A4: The gear ratio is defined through the number of turns the output shaft will makes when the input shaft is turned once. When the gear ratio is 1:1, the torque and speed are the same. If the ratio is increased to 1:4, the torque is reduced and the maximum speed is significantly increased. If this is reversed to a ratio of 4:1, then the speed is reduced and the torque is increased.

Q5:What are gearboxes used for?
A5: Gearboxes are used in various applications depending on the type and gear ratio. This includes machine tools, conveyor systems and elevators, as well as industrial equipment and mining industry applications. Right angle gearboxes can be utilized in rotary tables.
