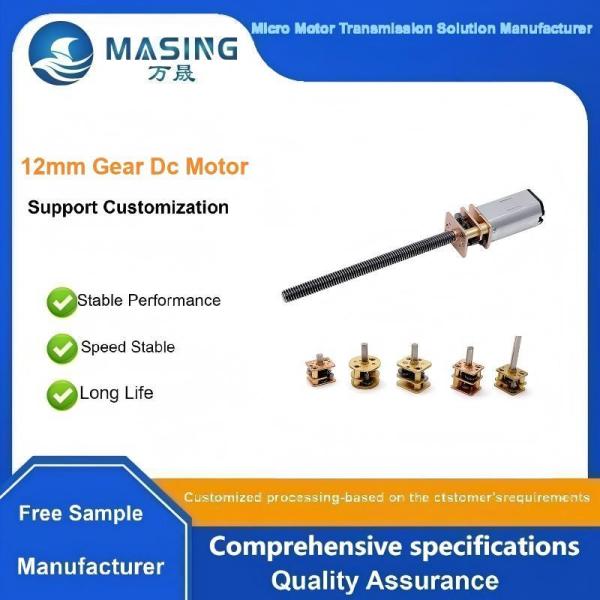

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12N20
Certification :
ROHS ,CE, ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
12mm Gear Motor Manufacturers
Gearbox Shaft :
φ3mm ,φ4mm ,M3,M4,M5 or Customized
OEM & ODM :
Accepted
Gearbox diameter :
φ12mm
Brush type :
Metal Brush/Carbon brush
Gearbox type :
Spur Gearbox
Rated Voltage :
DC1.2V-12V
Direction of motor :
CW&CCW
Usage :
Laser,Locks,Toys,3D Printer,Robots
Motor type :
n20 Micro dc motor
Description

12mm Gear Motor Manufacturers​ Title:

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor for Robots and Locks

12mm Gear Motor Manufacturers​ Description:

  • Rated voltage :DC1.2V-12V

  • Rated speed :5rpm-3000rpm

  • Motor Size:φ12mm*L15mm

  • Rated Torque :0.05kgf.cm-2kgf.cm,

  • The torque of the motor is nronortional to the speed of the motor

  • Gearbox Size:φ12*10mm gearbox with N20, N30, N10 permanent magnet DC motors

  • Meet EU environmental standards: low energy consumption, low noise

  • Shaft diameter :φ3mm,φ4mm or Customized

  • Direction of motor:CW &CCW

  • Encoders, gears and other requirements can be configured

  • Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000

  • The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

  • Quality: With professional equipment, improve the testing process, quality control system

  • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • SHAFT TYPES:

    Out shaft standard as follows,also can customerized due to the user drawings

    welcome to contact customer service for more types

  • Round Type :DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc

  • Free sample testing can be provided

  • Every product must pass the inspection before leaving the factory

12mm Gear Motor Manufacturers​ Key Attributes:

Rated Speed(RPM)
5rpm-3000 rpm
Continuous Current(A)
10mA-500mA
Gearbox Shaft
φ3,φ4 ,M3 or M4 ,M5 ,D-cut or Round ect
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
12mm gear motor
Use
Robots,Locks ,Locker lock,Toys,Precision instruments, electric tools, screwdrivers
Type
6volt brushed gear motor
Rated Torque
0.01kgf.cm-2kgf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Exposed Gearbox
Product Name
12mm Gear Motor Manufacturers​
Rated Voltage
DC 1.2v-12v
Certificate
CE,Rohs,EU,ISO,16949
Gearbox Size
12mm*10mm
Weight
10g
Noise
≤55DB
MOQ
1000Pcs
Gears
Metal,Steel or Copper Rohs
Color
Customer's Request
Motor type
N20 micro motor

12mm Gear Motor Manufacturers​ Product Photo:

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

12mm Gear Motor Manufacturers​ Product Spec:

N20 Gear Motor Typical Applications:

Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor


Motor model

Rated voltage

Speed
Current
Speed
Torque
Current
Power
Torque
Current
VDC r/min mA r/min g.cm mA W g.cm A
FF-N20VA-13110 2.4 14800 60 12000 2.5 200 0.31 13 1.20
FF-N20VA-09220 5.0 14800 30 12000 2.5 120 0.31 13 0.52

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$10/piece

Certifications:

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

Factory Show:

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

Product Classification:

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

12mm Gear Motor Manufacturers With High Power 6v brushed geared N20 micro motor

FAQ

Q1:How to select a suitable motor?

A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?

A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3: Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5:How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
