16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Specifications
Gears :
Precision Metal Gear Motor
Dimension :
16mm gearbox
Shaft tyoe :
round ,flat ,d-cut ect
Brand Name :
Masing Motor
Model Number :
MSGM16A030
Certification :
ISO,RoHS,CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Direction of Rotation :
CW/CCW
Power :
0.2-3.0W
Gearbox Material :
Metal ,copper ,steel
Applicationl :
Robot , door lock , toy, cabinet lock
Product Name :
16mm small dc gear motor
Encoder :
Encoder available
Description
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Product Overview

High quality 16mm metal gear DC motor designed for cabinet locks and various industrial applications. Features precision metal gears, customizable specifications, and durable construction.

Technical Specifications
  • Voltage: DC 1.5V-24V (Customized)
  • Speed: 2RPM-3000RPM (Customized)
  • Output Power: 0.2W-5W (Customized)
  • Gearbox Diameter: Ø16mm
  • Gearbox Material: Metal
  • Gear Material: Precision Metal Gear
  • Reduction Ratio: 1:10-1:1000 (Customized)
  • Shaft Size: Ø3mm or Customized
  • Shaft Type: Bare / D-Cut / Double D-Cut / Pin Hole / Keyway (Customizable)
  • Shaft Material: Carbon Steel or Stainless Steel
Key Features
  • Special imported steel gears with minimum modulus (0.15 mode)
  • Ultra-low noise operation with high reliability
  • High anti-oxidation commutator and brush material
  • Smooth operation with long life up to 200,000 cycles
  • Small vibration and high torque output
  • Drip-proof design and permanent magnet construction
  • Resistant to water and dust for harsh environments
  • Meets EU environmental standards: low energy consumption, low noise
Key Attributes
Speed (RPM): 90rpm
Continuous Current: 0.02A
Efficiency: IE 1
Brand Name: Masing Motor
Model Number: MSGM16A030
Gearbox Material: Metal gearbox copper, steel
Gear Ratio: 1:15-1:1000
Construction: Permanent Magnet
Protect Feature: Totally Enclosed
Certificate: CE, Rohs, ISO
Power: approx 0.2W-3.0W
MOQ: 1000Pcs
Product Images
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock 16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock 16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock

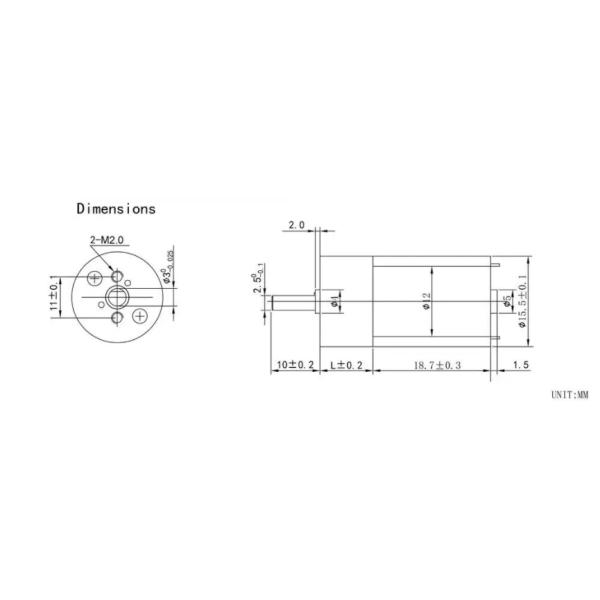

Technical Data
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Applications

Electronic Door Lock, Smart Home Appliance, Smart Robot, Electric Toys, Robot, door lock, toy, cabinet lock, Home Appliance, vending machine, medical device

Packaging & Delivery
  • Packaging: Strong Carton 1000pcs/box, or as requested
  • Port: Shenzhen/Guangzhou/Shanghai
  • Single Package Size: 12×10×24mm
  • Single Gross Weight: 0.08kg
Supply & Lead Time

Supply Ability: 100,000 Piece/Pieces per Month

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples
  • Maximum order quantity: 1 piece
  • Sample price: $5/piece
Certifications
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Factory & Products
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock 16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Detailed Applications
  • Medical Equipment: sphygmomanometer, massaging mattress, air pump, urine analyzer
  • Business Machines: intelligent robot, copiers and scanners, 3D printers, tattoo pen
  • Electric Powered Equipment: electric toothbrush, electric tool, adult erotica products, electric toy car, electric curtain
  • Smart Home: intelligent window opener, vacuum cleaner, smart coffee machine, hair dryer, fascia gun, fan, air cleaner, hair removal device, door lock, intelligent door lock
  • Food and Beverage: hand blenders, blenders, mixers, coffee machines, food processors, juicers, fryers, ice makers, soy bean milk makers
  • Robotics: servicing robotics, food delivery robot, reception robot, medical serving robot, AGV & AMR, conveying robot, inspection robot
16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Frequently Asked Questions
Q1. Are you factory?
A1: Yes, we are factory. Main products include micro geared motor, brushless DC motor, micro motor and planetary gear box.
Q2: How can you guarantee the quality?
A2: We have 100% finished product inspection before delivery and no defective products returned.
Q3: What's the minimum order quantity?
A3: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.
Q4: Can I buy samples placing orders?
A4: Yes. Please feel free to contact us.
Q5: Do you have a customized service for your standard motors?
A5: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q6: How do you make our business long-term and good relationship?
A6: a. We keep good quality and competitive price to ensure our customers benefit; b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
