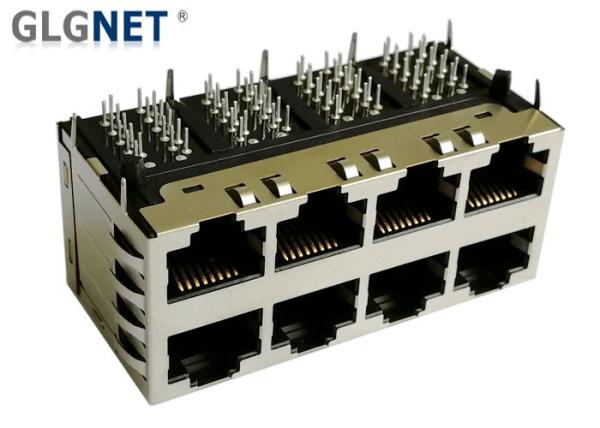

2x4 Rj45 Multi Port Jack 6 U" Gold Plating For Industrial Switchers


1. Features

Number of Ports2 x 4
PCBFR4
Package Height (mm)25.27
Package Length (mm)28.4
Package Width (mm)59.18
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed1000 BASE-T
Temperature0 TO 70℃
Turns Ratio RX1CT:1CT
Turns Ratio TX1CT:1CT



2. Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃
  • Storage Temperature: -40 ℃ to +85 ℃



3. Why Choose GLGNET?

  • 20 years experiences in Magnetic RJ45 Connector
  • 1500 Employees
  • 58 R&D Engineers.
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops



4. 2 X 4 ports Stacked RJ45 Jack Electrical Specification:

ParameterSpecification
BrandGLGNET
Operating Temperature0 to 70 ℃
Turns Ratio1:1±2%

Open Circuit
Inductance (ocl)

350uH MIN@ 100KHz/100mV with 8mA DC Bias

Insertion Loss (IL)

-1.0dB MAX @ 0.3MHz – 100MHZ;
-1.2dB MAX @ 100MHz - 125MHz;

Return Loss (RL)
Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;
-13dB MIN @ 30MHz – 60MHZ;
-10dB MIN @ 60MHz – 100MHZ;

Crosstalk
Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)-30dB MIN @ 1 MHz – 100MHZ
HI - POT400 VDC TYP
Protection10/700uS, 6KV Common Protection Module



5. Applications


Networking equipment

  • Hubs
  • Switches
  • Routers
  • PCs
  • Servers
  • Workstations
  • Motherboards



Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices



6. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

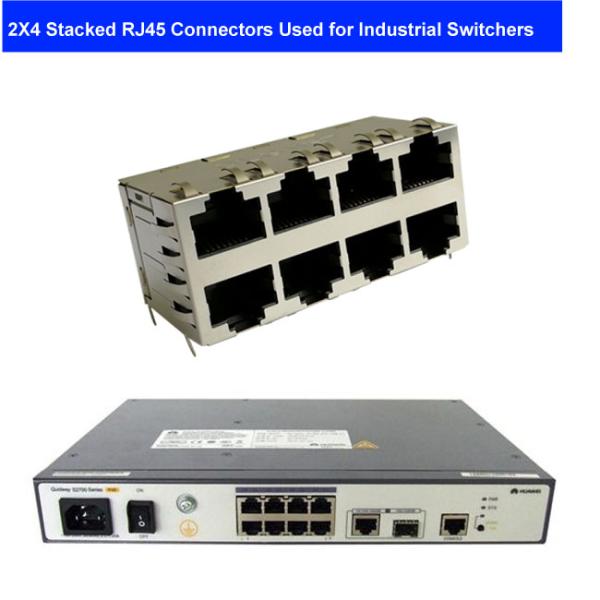

3. Stacked RJ45 Connectors with Transformers Application:



2x4 Rj45 Multi Port Jack 6 U

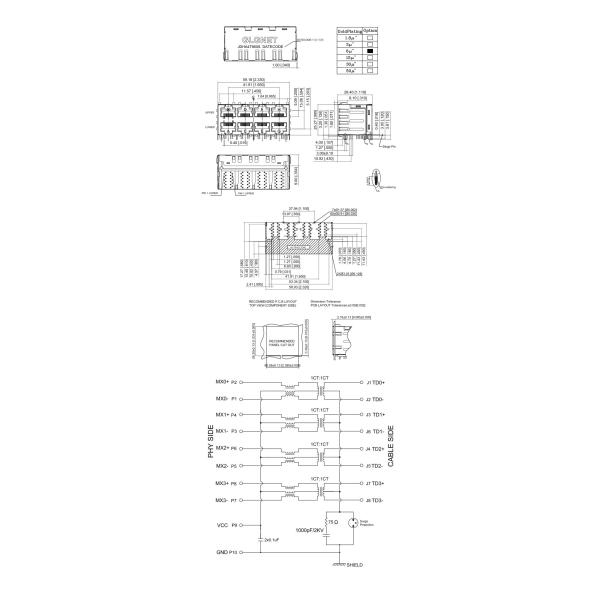

8. Mechanical Drawing:
