1000 Base T Through Hole 8 Port Rj45 Connector 2x4 Ports With Integrated Magnetics
1000 Base T Through Hole 8 Port Rj45 Connector 2x4 Ports With Integrated Magnetics
1000 Base T Through Hole 8 Port Rj45 Connector 2x4 Ports With Integrated Magnetics
1000 Base T Through Hole 8 Port Rj45 Connector 2x4 Ports With Integrated Magnetics
Specifications
Brand Name :
GLGNET
Model Number :
JDKA4T807
Certification :
ISO9001, ISO1400, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Turns Ratio (+/- 5%) TX :
1CT:1CT
Turns Ratio (+/- 5%) RX :
1CT:1CT
Insertion Loss (dB Max) 0.3-100MHZ 100BASE :
-1.1
HI-POT :
2250 V DC @ 60 Seconds
OCL(uH Min) @100KHz/0.1with 8mA DC Bias :
350
Ports :
2 x 4
Description

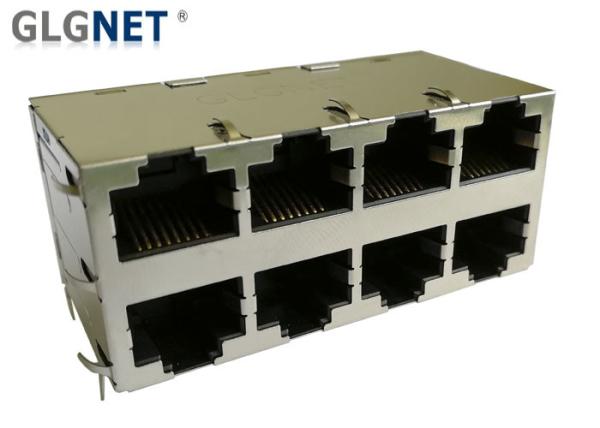

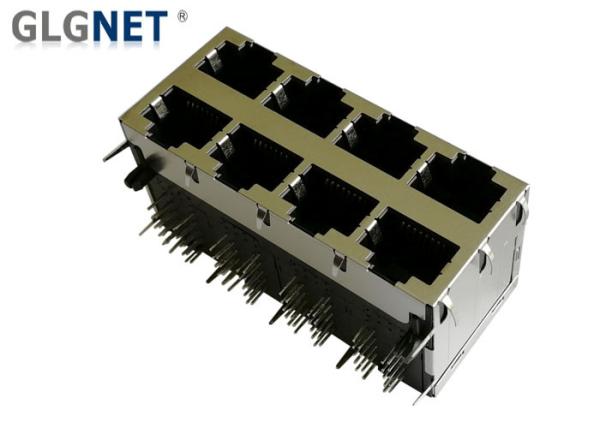

1000 Base T Through Hole 8 Port Rj45 Connector 2x4 Ports With Integrated Magnetics


1. Features

Number of Ports2 x 4
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed1000 BASE-T
Temperature0 TO 70℃
Turns Ratio RX1CT:1CT
Turns Ratio TX1CT:1CT




2. Applications

  • Networking equipment
    • Hubs
    • Switches
    • Routers
    • PCs
    • Servers
    • Workstations
    • Motherboards

  • Equipment utilizing a network port
    • NICs
    • Servers
    • PCs
    • Consumer Devices




3. Our Advantages:

  • 20 years experiences in Magnetic RJ45 Connector
  • 1500 Employees
  • 58 R&D Engineers.
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops


4. 2 X 4 ports Stacked RJ45 Jack ( JDKA4T807 ) Attributes:

Part NumberJDKA4T807BrandGLGNET
Place of OriginGuangdong of ChinaCertificationCE /UL/FCC/Reach/RoHS
Product Type RJ45 Modular JackConnector StyleRJ45
Jack TypeRJ45Connector Type Modular Jack
Latch StyleStandardLatchUnavailable
FilterWith FilterLED OptionCan be with or without LED
LED ColorCan Be Green/Yellow/ Orange/ Red etcPanel StopsWithout Panel Stops
ShieldedYesApplies To Ethernet Hubs, Splitters, Switchers
Performance Speed1000 Base TGrounding OptionsPanel Ground and PCB Ground
Port Configuration 8Number of Positions RJ45 with 8P8C
Jack Configuration2 x 4Terminals per PortRJ45 : 8
Shield MaterialBrassPCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50uContact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over NickelPCB Mounting Style Through Hole
Termination Method to PC Board Through HoleBoard LockWithout Board Lock
Housing Material Rj45 : Glass filled PA46 ( Black )Housing ColorBlack
Housing Material  TemperatureStandardUL Flammability Rating UL 94V-0



5. Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃
  • Storage Temperature: -40 ℃ to +85 ℃



6. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

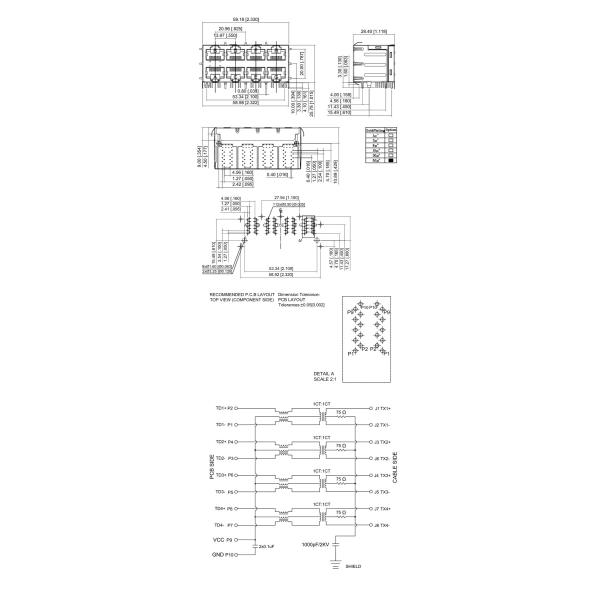

7. Mechanical Drawing
