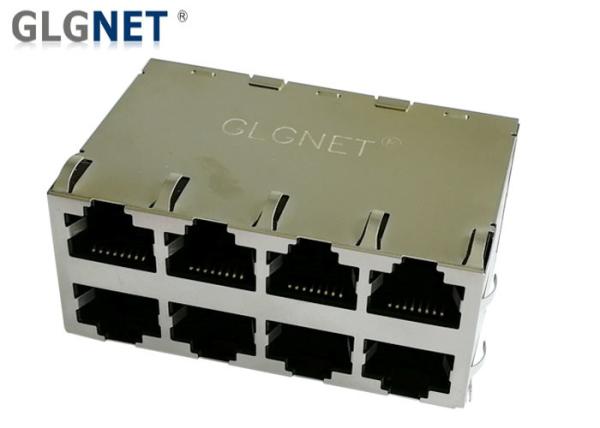

Phosphor Bronze Stacked RJ45 Connectors Glass Filled PA46 0.2MM Thickness

1. Product Features

• Complies with requirements of IEEE 802.3ab standards
• 2 x 4 Stacked RJ45 Connectors with 1000 BASE-TX magnetic
• Design for 10/100 BASE transmission over UTP-5 cable
• Comply with RoHS requirements

2. Product Using

• Switches
• Routers
• Servers
• Workstations
• Motherboards
• NICs
• Servers
• Consumer Devices

3. 2 X 4 ports Stacked RJ45 Jack ( JDHA4T908 ) Attributes:

4. Why Choose Shenzhen GLGNET Electronics Co.,Ltd?

• 20 years experiences in Magnetic RJ45 Connector
• 1500 Employees
• 58 R&D Engineers.
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops
• 20 years experiences in Magnetic RJ45 Connectors

5. Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged structure or Stacked Structure;
• With or without POE function;
• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

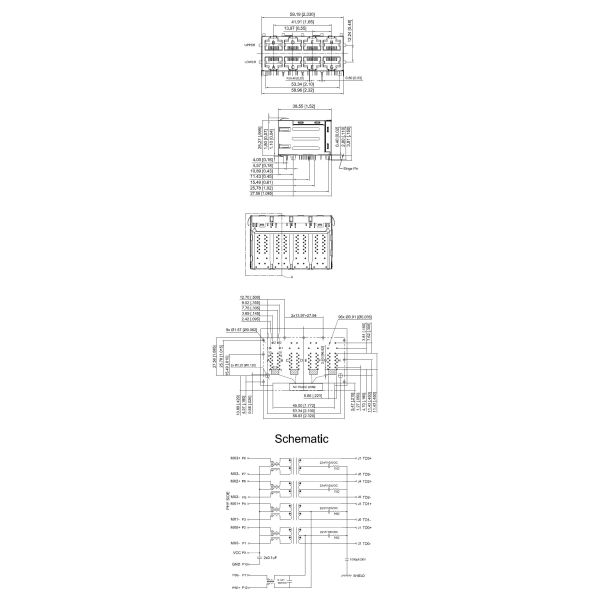

6. Mechanical Drawing
