Copper Alloy Stacked RJ45 Connectors 12 Ports Pcb Rj45 Jack 1000 BASE - T
Copper Alloy Stacked RJ45 Connectors 12 Ports Pcb Rj45 Jack 1000 BASE - T
Copper Alloy Stacked RJ45 Connectors 12 Ports Pcb Rj45 Jack 1000 BASE - T
Copper Alloy Stacked RJ45 Connectors 12 Ports Pcb Rj45 Jack 1000 BASE - T
Specifications
Brand Name :
GLGNET
Model Number :
JDHA6T836-D1D1
Certification :
ISO9001, ISO14001, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Applications :
1000 BASE - T
Port Number :
12 ( 2 x 6 )
LED :
Yes
HI-POT :
2250 V DC @ 60 Seconds
OCL(uH Min) @100KHz/0.1with 8mA DC Bias :
350
Latch :
Yes
Description

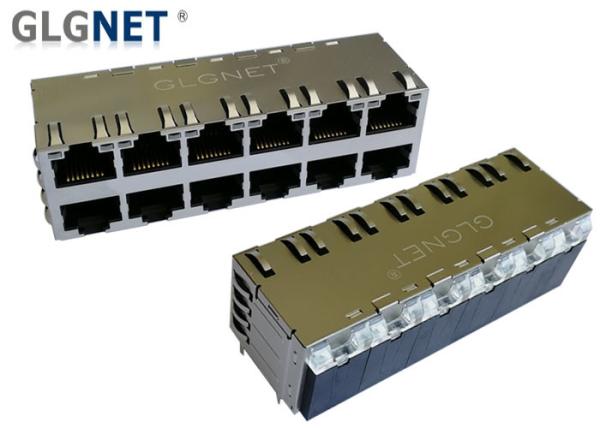

Copper Alloy Stacked RJ45 Connectors 12 Ports Pcb Rj45 Jack 1000 BASE - T


1. Materials

  1. Housing: Class Filled PBT UL94V-0 (ROHS)
  2. Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  3. Shield: 0.2mm Thickness With Brass
  4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  5. The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  6. Operating Temperature: 0 ℃ to +70 ℃

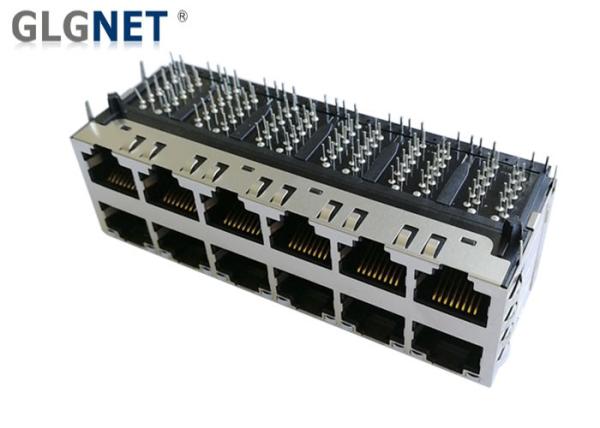

2. GLGNET Stacked RJ45 Connector (JDHA6T836-D1D1 ) Features

  • Has 12 (2 x 6 ) prots,
  • Supports 1000 BASE - T Transmission Speed,
  • With Integrated Magnetics, supports Surge Protection;
  • Operating Temperature is 0 ℃ to 70 ℃,
  • Storage Temperature is -40 ℃ to 85 ℃
  • Contact Finish : 6 u " Gold Plating,
  • The Shield shell : 0.2mm Thickness Copper Alloy With Nickel Plated;

3. Product attributes

Part Number JDHA6T836-D1D1 Brand GLGNET
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Filter With Filter LED Option Without LED
LED Color Without LED Panel Stops With
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 1000 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Multiple Ports Number of Positions  8
Jack Configuration 2 x 6 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 30u " Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



4. Applications


Networking equipment

  • Hubs
  • Switches
  • Routers
  • PCs
  • Servers
  • Workstations
  • Motherboards



Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices



5. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO



6. GLGNET Advantages

  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

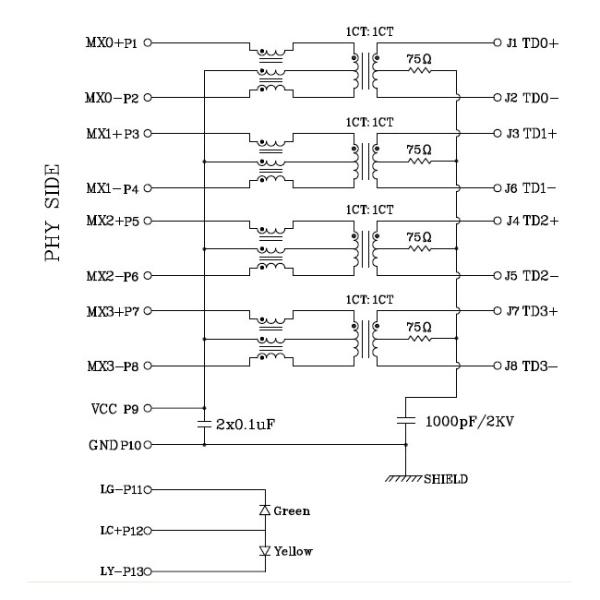

7. Transformer Shematic Drawing
