Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Specifications
Brand Name :
LongJoin
Model Number :
JL-700M-K4
Place of Origin :
China
Price :
negotiable
Payment Terms :
Western Union,MoneyGram,T/T
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Related Humidity :
9
Ambient Temperature :
-
Wires :
A
IP :
I
Certifications :
R
Real-world Scenarios) :
S
Description

JL-700M-K4 Z10 lock socket,USA 0-10V dimming scheme

Product Summary

Z10 standard, JL-700M socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.
According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

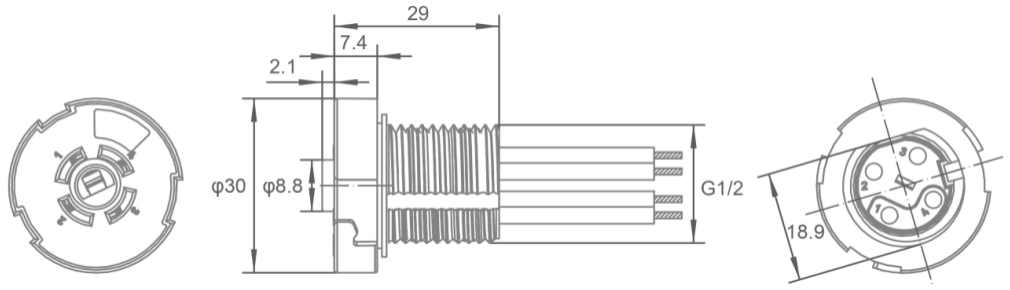

Product size

Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme

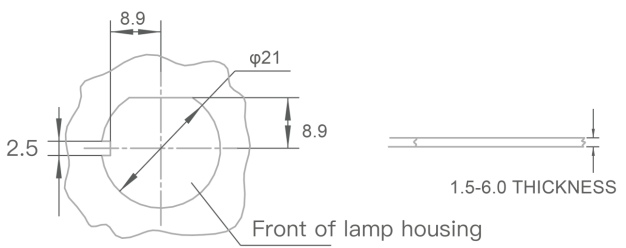

Drilling plan

Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme

Product Features

  • Z10 standard interface, used for 0-10V dimming scheme

  • small size, suitable for more lamps

  • advanced sealing, IP66 can be achieved without installing screws

  • expandable solution: it is allowed to use Φ 40-80mm expansion controller with the same connection interface in the central management system

  • flexible installation position, which can be installed on the top / bottom / side of the lamp

  • integrated single gasket to seal lamps and modules to minimize assembly time

Specifications

Model No.

JL-700M-K4

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

*Wires

AWM 1015,18/20/22 AWG,105°C

AWM 1007,18/20/22 AWG,80°C

IP

IP66

Certifications

 Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme

*Conductor specification: # 20 conductor has UL certification


FAQs

Q1:What is the JL-700M-K4 Z10 Lock ZHAGA Socket?
A:It is a professional lighting control socket model JL-700M-K4, which integrates US-standard Z10 lock structure and ZHAGA interface, designed for intelligent outdoor lighting control.

Q2:What is the function of the Z10 lock design?
A:The Z10 locking structure provides stable mechanical connection, anti-loosening, waterproof and shockproof performance, fully complying with North American outdoor lighting standards.

Q3:What dimming solution does this product adopt?
A:It adopts the 0-10V dimming scheme, which is stable, universal, and can realize smooth and flicker-free brightness adjustment for LED lighting fixtures.

Q4:What are the advantages of combining Z10 and ZHAGA standards?
A:It meets the US market interface specifications while supporting modular intelligent control systems, ensuring high compatibility and interchangeability of sensors and dimming modules.

Q5:In which lighting applications is JL-700M-K4 mainly used?
A:It is mainly used in US-standard road lighting, courtyard lighting, park lighting, residential community lighting and commercial outdoor lighting projects.
