Specifications
Brand Name :
LongJoin
Model Number :
JL-770W
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
24VDC
Power Consumption :
1.5A MAX
Wires :
20~22AWG，Strip the head 9 ~ 11mm and tin it
IP :
IP66
Certifications :
RoHS,RU,CE,CB,UKCA,REACH
Real-world Scenarios :
Next-Gen Smart Poles
Description
Z10 Lock Socket No Wire Version USA 0-10V Dimming Scheme Next-Gen Smart Poles
JL-770W Z10 Lock Socket No Wire Version, USA 0-10V Dimming Scheme

Z10 standard JL-770W socket is designed for 0-10V dimming applications, making it ideal for developing standardized equipment suitable for road lighting, area lighting, and residential lighting applications.

Based on equipment configuration, these devices can implement monitoring, communication, and control functions using 0-10V dimming technology.

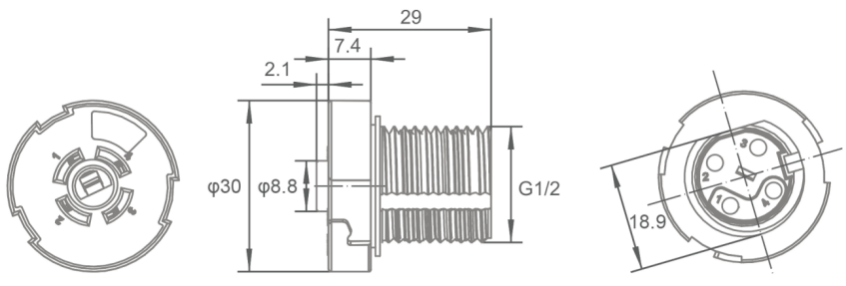

Product Dimensions
Z10 Lock Socket No Wire Version USA 0-10V Dimming Scheme Next-Gen Smart Poles

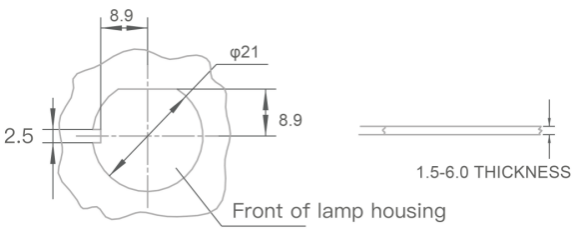

Drilling Plan
Z10 Lock Socket No Wire Version USA 0-10V Dimming Scheme Next-Gen Smart Poles
Product Features
  • Leadless version for convenient modification and new installations
  • Z10 standard interface designed for 0-10V dimming schemes
  • Compact size suitable for various lighting fixtures
  • Advanced sealing technology achieving IP66 rating without installation screws
  • Expandable solution: compatible with Φ40-80mm expansion controllers using the same connection interface in central management systems
  • Flexible installation positions: top, bottom, or side mounting on lighting fixtures
  • Integrated single gasket design for sealing lamps and modules, minimizing assembly time
Specifications
Model No. JL-770W
Rated Voltage 24VDC
Power Consumption 1.5A MAX
Relative Humidity 96%
Ambient Temperature -40°C ~ +70°C
Wires 20-22AWG, strip head 9-11mm and tin it
IP Rating IP66
Certifications Z10 Lock Socket No Wire Version USA 0-10V Dimming Scheme Next-Gen Smart Poles
Frequently Asked Questions
What is a Z10 Lock Socket No Wire Version?

It is a US-standard Z10 locking socket designed with a wire-free structure, supporting 0-10V dimming, specially built for next-generation smart lighting and smart pole applications.

What are the advantages of the no-wire design?

The wire-free structure simplifies installation, reduces failure points, improves waterproof and anti-loosening performance, and enables faster on-site assembly and maintenance.

What is the function of the Z10 lock mechanism?

The Z10 lock provides secure mechanical fixation, strong vibration resistance, reliable waterproof connection, and fully complies with American outdoor lighting interface standards.

Why use the 0-10V dimming scheme?

0-10V is a stable, universal and smooth dimming method with high compatibility with LED drivers, making it very suitable for large-scale smart lighting projects.

What role does it play in next-gen smart poles?

It provides a standardized, reliable interface for lighting control modules, supporting intelligent dimming, sensor access and unified management of modern smart poles.
