Specifications
Brand Name :
LongJoin
Model Number :
JL-700W
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
24VDC
Power Consumption :
1.5A MAX
Wires :
20~22AWG，Strip the head 9 ~ 11mm and tin it
IP :
IP66
Certifications :
RoHS,RU,CE,CB,UKCA,Zhaga,REACH
Real-world Scenarios :
Smart City Infrastructure
Description

JL-700W Zhaga Book-18 Receptacle Leadless version

Product Summary

Jl-700W locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R,Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

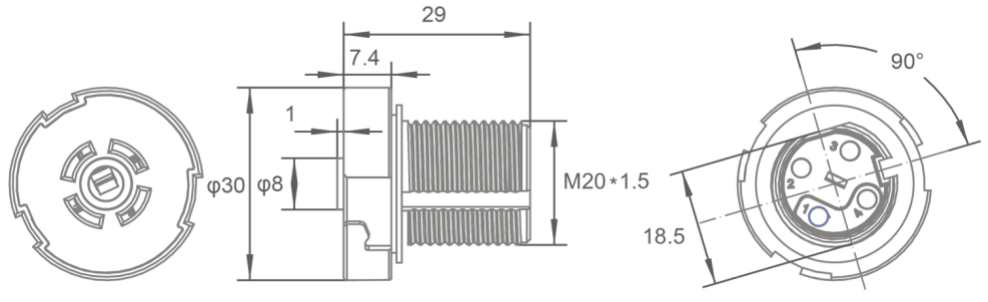

Product size

ZHAGA Socket Book 18 Receptacle Leadless Version 24V DC Auxiliary Power

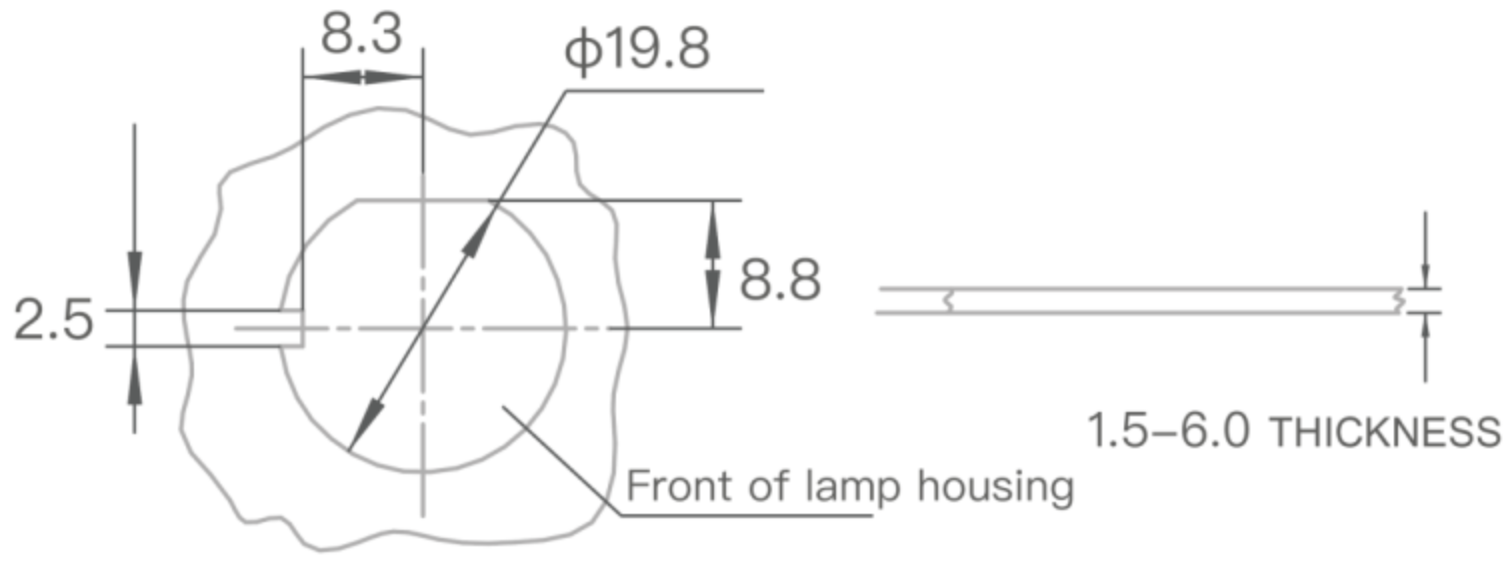

Drilling plan

ZHAGA Socket Book 18 Receptacle Leadless Version 24V DC Auxiliary Power

Product Features


  • Standardized interface defined in Zhaga Book-18

  • Compact size allowing greater flexibility in luminaire design

  • Advanced sealing to achieve IP66 with no mounting screws

  • Flexible mounting position, upwards, downwards and sideways facing

  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time


Specifications


Model No.

JL-700W

Rated Voltage

24VDC

Power Consumption

1.5A MAX

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

IP

IP66
Wires

20~22AWG,Strip the head 9 ~ 11mm and tin it

Certifications

ZHAGA Socket Book 18 Receptacle Leadless Version 24V DC Auxiliary Power


FAQs

Q1: What is a ZHAGA Socket Book 18 Receptacle Leadless Version?
A: It is a lead-free interface socket that fully complies with Zhaga Book 18 standard, used for connecting intelligent control modules on LED lighting fixtures without extra wiring.

Q2: What are the benefits of the leadless design?
A: Leadless structure simplifies installation, improves waterproof and dustproof performance, reduces failure points, and ensures more stable electrical connection in outdoor environments.

Q3: What is the function of 24V DC auxiliary power?
A: 24V DC auxiliary power provides safe, stable low-voltage power supply for lighting sensors, dimming modules and communication units.

Q4: Why is Zhaga Book 18 compliance important?
A: It ensures universal interface compatibility, allowing plug-and-play replacement of different brand modules, which is convenient for later upgrading and maintenance.

Q5: In which lighting applications is this receptacle mainly used?
A: It is widely used in road lighting, smart street lamps, park lighting, commercial lighting and other intelligent outdoor lighting systems.
