Specifications
Brand Name :
LongJoin
Model Number :
JL-700
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Related Humidity :
96%
Ambient Temperature :
-40°C ~ +70 °C
Wires :
AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C 6" min
IP :
IP66
Certifications :
RoHS,RU,CE,CB,UKCA,Zhaga,REACH
Real-world Scenarios :
Urban Pedestrian Zones
Description

JL-700 Pre Installed Waterproof Version Zhaga Book-18 Receptacle 4P, LEX-R


Product Summary

Jl-700 locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R,Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

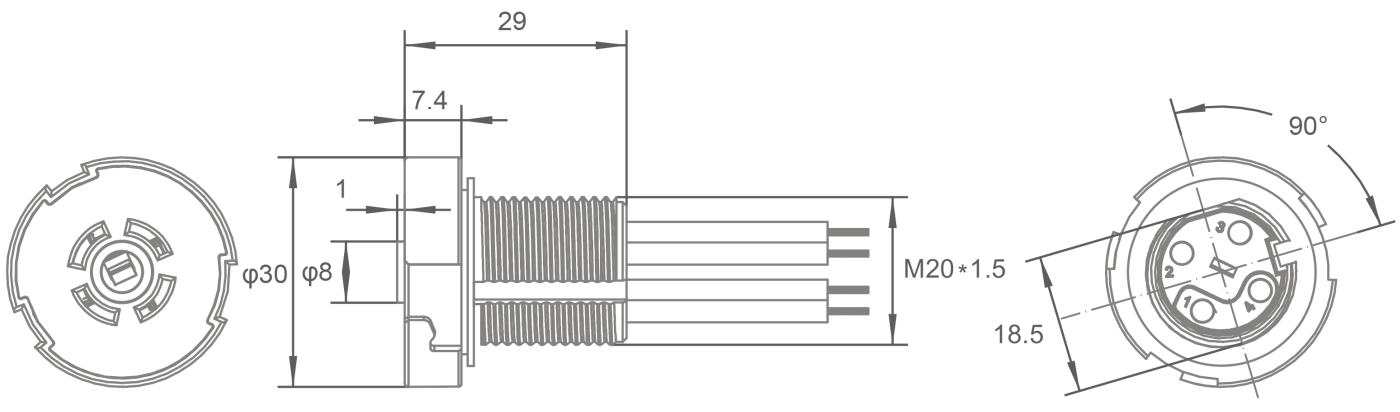

Product size

Pre Installed Waterproof Version ZHAGA Book 18 Receptacle 4P LEX-R 4-Pin Interface

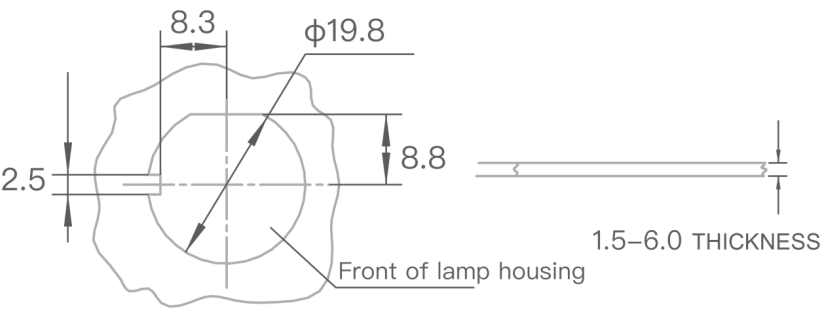

Drilling plan

Pre Installed Waterproof Version ZHAGA Book 18 Receptacle 4P LEX-R 4-Pin Interface

Product Features


  • Standardized interface defined in Zhaga Book-18

  • Compact size allowing greater flexibility in luminaire design

  • Advanced sealing to achieve IP66 with no mounting screws

  • Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface

  • Flexible mounting position, upwards, downwards and sideways facing

  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time


Specifications

Model No.

JL-700

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

*Wires

AWM 1015,18/20/22 AWG,105°C

AWM 1007,18/20/22 AWG,80°C

6" min

IP

IP66

Certifications

 Pre Installed Waterproof Version ZHAGA Book 18 Receptacle 4P LEX-R 4-Pin Interface

*Conductor specification: # 20 conductor has UL certification


FAQs

Q1: What is the Pre Installed Waterproof Version ZHAGA Book 18 Receptacle?
A: It is a pre-installed and high-waterproof receptacle that conforms to Zhaga Book 18 standard, model 4P LEX-R, equipped with a 4-pin interface for intelligent lighting module connection.

Q2: What are the advantages of the pre-installed design?
A: Pre-installed structure allows integrated assembly with lamps during production, improves installation efficiency, enhances overall stability, and reduces on-site construction difficulty.

Q3: How does the waterproof version perform in outdoor environments?
A: It has excellent waterproof and dustproof performance, can adapt to long-term outdoor wind and rain erosion, and ensures stable operation of the interface in harsh environments.

Q4: What is the function of the 4-pin interface in LEX-R model?
A: The 4-pin interface supports power supply and dimming signal transmission, matching the connection requirements of most Zhaga standard sensors and dimming modules.

Q5: In which lighting applications is this receptacle mainly used?
A: It is widely used in road lighting, smart street lamps, park lighting, residential lighting and other outdoor intelligent lighting projects.
